JVC FS-X3 Service Manual

3-5

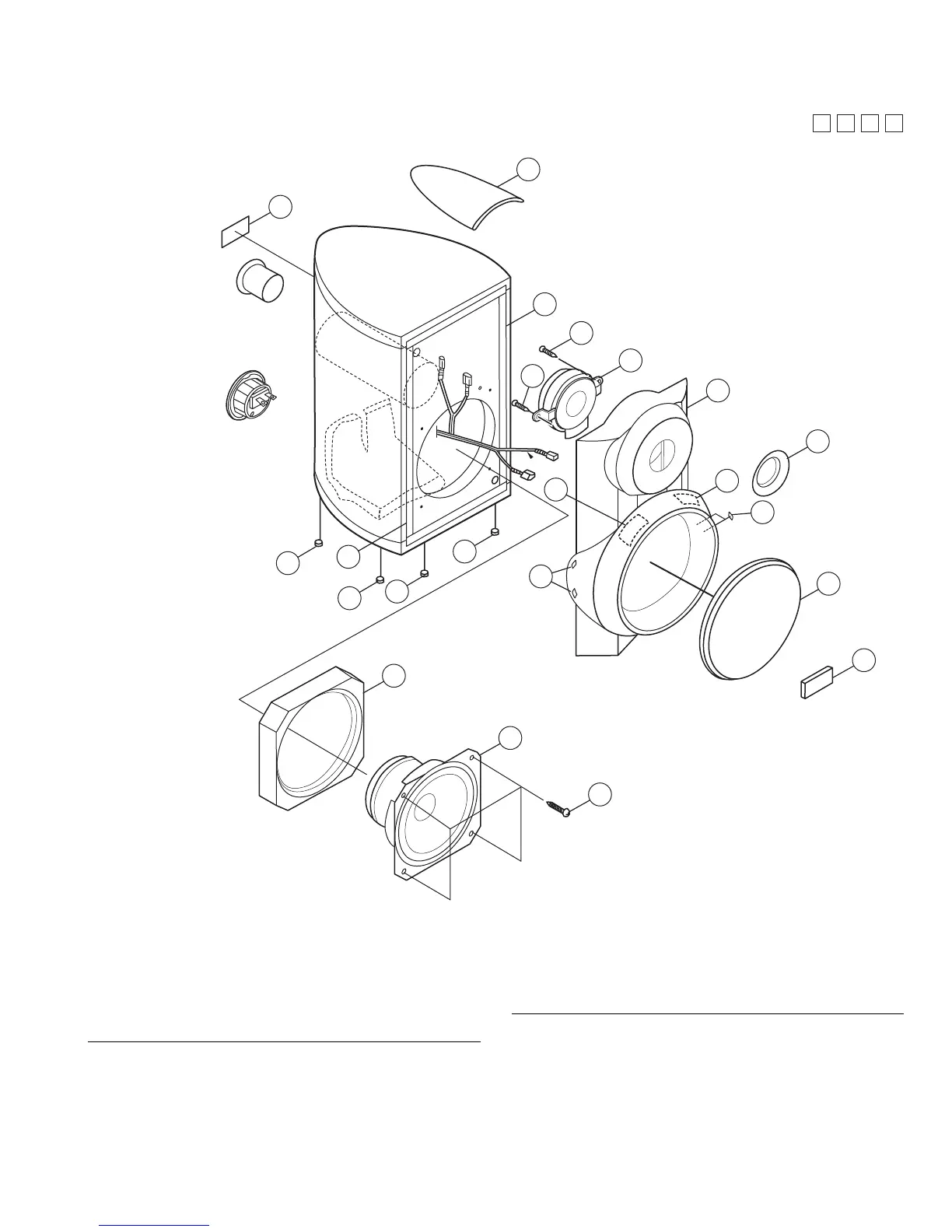

Speaker assembly and parts list
Speaker (SP-FSX3)
Block No. [M][6][M][M]
Block No.
M
M
M
6
(SP-FSX3)
2
9
10
7
3
1
15
5
8
11
4
6
14
12
12
12
12
13
13
10
15
14
 Symbol No. Part No. Part Name Description Local
1 LV10766-001A ORNAMENT (x2)
2 LV34024-001A TOP COVER (x2)
3 LV43312-001A TW.AL.RING (x2)
4 LV34023-001A SPEAKER COVER (x2)
5 LV34025-001A WO.SPACER (x2)
6 LV40209-002A MARK (x2)
7 FX3TW0001 TWEETER (x2)
8 FX3WO0001 WOOFER (x2)
9 FX3HT0201 RATING LABEL (x2)
10 FX3ML0101 SCREW (x4)
11 FX3ML0201 SCREW (x8)
12 D77JD0001 RUBBER MAT (x8)
13 FX3MF0101 SPECER (x4)
14 FX3MF0201 SPECER (x8)
15 FX3CT0001 CLOTH TAPE (x4)
