Marks BATTERY RELEASE
Recording time
Video tignt OFF | video tight ON
BNVi2U | approx. 86 min, | approx. 30 min
BN-V14U_ approx. 65 min. | ~ approx. 40 min
BN-V22U {| approx. 110 min. _[. approx. 70 min
BN-V50U "| approx 140 min. | approx 85 min,
BN-V60U _T "approx. 139 min. ‘approx 70 run
1 The recording time per charge is influenced by the duration
of the recording standby, frequency of zooming, ele. It is
safer to have spate battery packs.
1» The video fight is built-in only on the GR-AXGO.
Multi AC Charger
Adapter
AAV35EG
To cars cigarette
fighter socket
Car Battery Charger/Adapter
BH-V3E (optional)

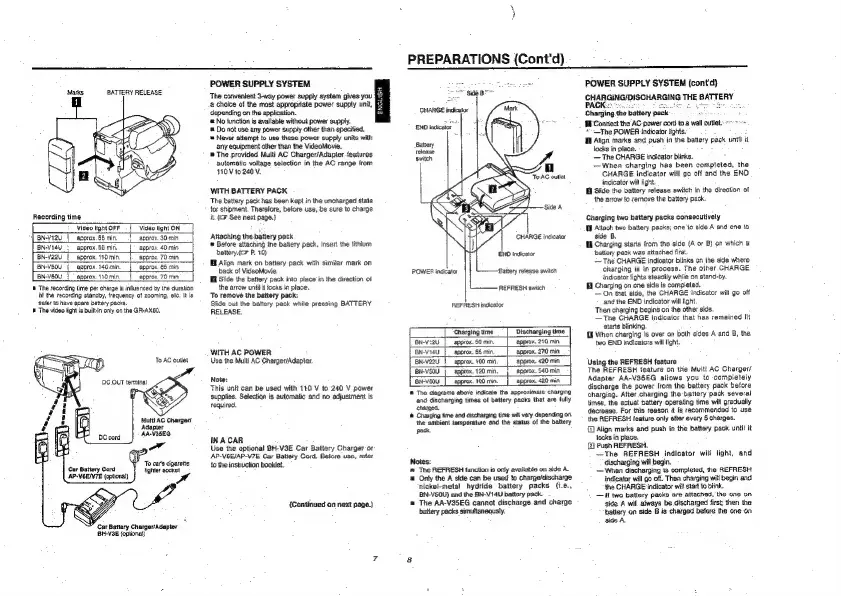

POWER SUPPLY SYSTEM
The convenient Sway power supply system gives you
‘a choice of the mast appropiate power supply unit,
depending on the application.
® No tunction is available without power supply.
Do not use any power supply other than specified.
m= Never attempt to use these power supply units with
any equipment other than the VideoMovie.
= The provided Multi AC Charger/Adapter features
automatic voltage selection in the AG range from
110 V to 240 V.
WITH BATTERY PACK
‘The battery pack has been Kept in the uncharged stale
{or shipment, Therefore, before use, be sure to charge
it. (F See next page.)
Attaching the battery pack
® Betore attaching the battery pack, insert the lithium
battery (Cr P. 10)
HiAlign mark on battery pack with similar mark on
back of VideoMovie
H Slide the battery pack into place in the direction of
the arrow unlit it locks in plac
To remove the battery pack:
Slide out the battery pack while pressing BATTERY
RELEASE
WITH AC POWER
Use the Multi AC Charger/Adapter.
Note:
This unit can be used with 110 V to 240 V power
supplies. Selection is automatic and no adjustment is,
required.
INACAR
Use the optional BH-V3E Car Battery Charger or
AP-VEEJAP-V7E Car Battery Cord. Betore use, reter
to the instruction booklet.
{Continued on next page.)
PREPARATIONS (Cont'd)
CHARGE indeator
END indicator
POWER indicator
Battery release switen
REFRESH switch
REFRESH indicator
‘Charging ume Discharging ti
BN. ‘approx. 50 min, ‘approx. 210 min
BNV14U_| approx. 86 min. ‘approx. 270 min
BN-V220_| approx. 100 min. | approx. 420 mn’
BNVEOU | approx. 120 min. | approx. 540 min
GA-VE0N_ | approx. 100 man approx. <20 min
1m The diagrams above indicate the approximate: charging
‘and discharging times of battery packs that ere fully
charged.
‘© Charging time and discharging time will vary depending on
‘the ambient temperature and the status of the battery
pack
Notes:
= The REFRESH function is only available on side A.
= Only the A side can be used to charge/discharge
nickei-metal hydride battery packs (i.€.,
BN-V50U) and the BN-V14U battery pack.
= The AA-V35EG cannot discharge and charge
battery packs simultaneously.
POWER SUPPLY SYSTEM (cont'd)
CHARGING/DISCHARGING THE BATTERY
PACK.5 200-5 cit @ yt °& “.
Charging the battery pack 7 ;
Bi Contiect the AC power cord to a wall outlat "==
* "The POWER indicator lights. :
Align marks and push in the battery pack until it
tocks in place.
— The CHARGE indicator blinks,
When charging has been completed, the
CHARGE indicator will go off and the END
indicator will fight.
BI Slide the battery release switch in the direction of
‘the arrow fo remove the battery pack.
Charging two battery packs consecutively
HH Atlach two battery packs; one to side A and one to
side B.
Hi Charging starts Irom the side (A or B) on which a
battery pack was attached first.
~The GHARGE indicator blinks on the side where
charging is in process. The other CHARGE
indicator lights steadily while on stand-by.
BI Charging on one side is completed.
— On that side, the CHARGE indicator will go off
and the END indicator will light,
Then charging begins on the other side.
—The CHARGE indicator that has remained Jit
starts blinking.
{5 When charging is over on both sides A and 8, the
two END indicators will light,
Using the REFRESH feature
The REFRESH feature on the Multi AC Charger!
Adapter AA-V35EG allows you to completely
discharge the power Irom the battery pack before
charging. After charging the battery pack several
times, the actual battery operating time will gradually
decrease, For this reason it is recommended to use
the REFRESH feature only after every 5 charges.
(Align marks and push in the battery pack untit it
locks in place.
[2 Push REFRESH.
—The REFRESH
discharging will begin.
—When discharging is completed, the REFRESH
indicator will go off. Then charging wit! begin and
the CHARGE indicator wil start fo blink.
—ii two battery packs are attached, the one on
side A will afways be discharged first; then the
battery on side B is charged before the one on
side A.
dicator wil! light, and
