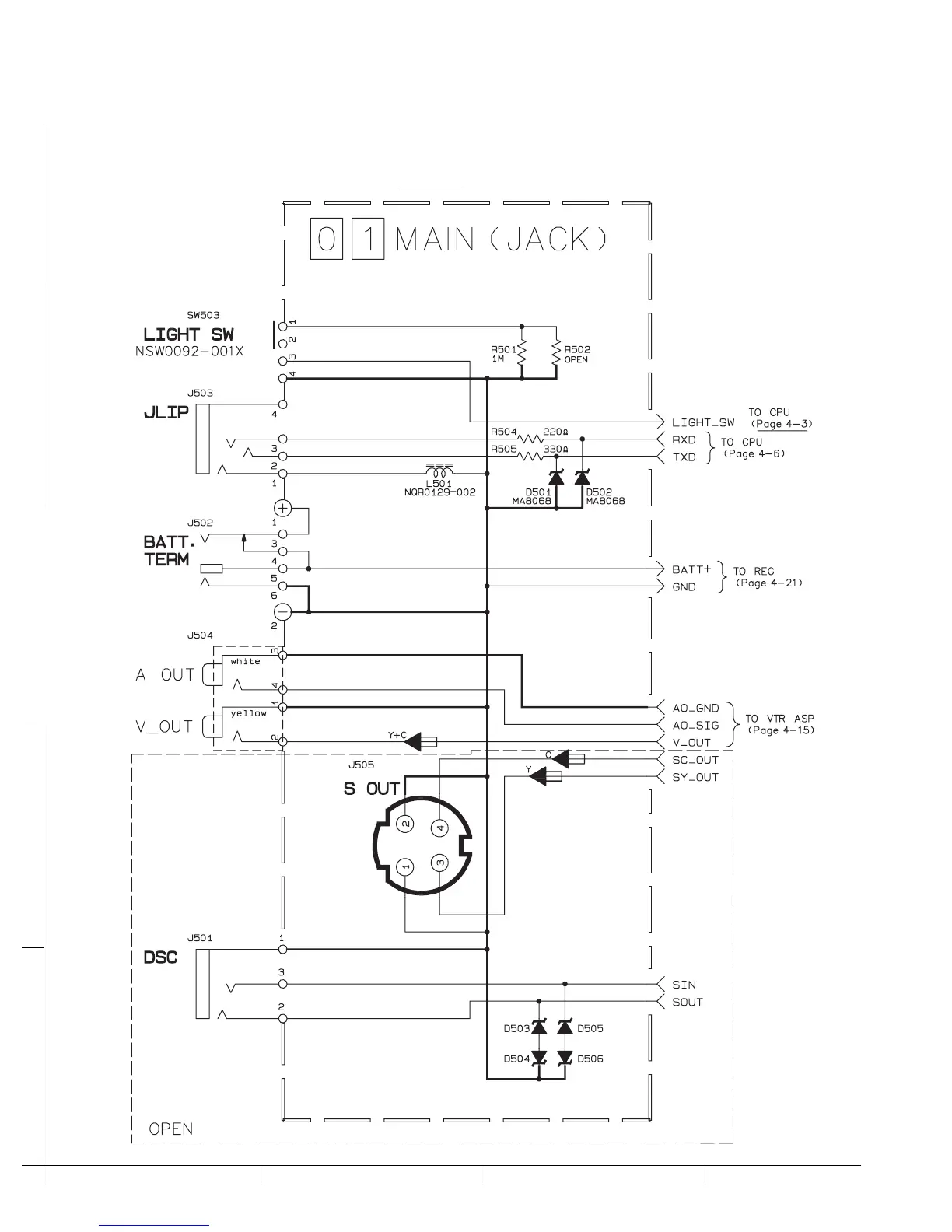

4.3 JACK SCHEMATIC DIAGRAM
5
4
1
2
3
ABCD
4-5
Note: How to find the page showing the continuative schematic diagram
Example)
TO CPU (Page 4-5): Refer to the GR-AXM220U service manaul (No. 86526)
TO CPU (Page 4-3): Refer to this service manual
