PLAYBACK
Connections
These are some basic types of connections. When making connections, refer also to your VCR and TV
instruction manuals.
A. Connection to a TV or VCR equipped with an S-VIDEO

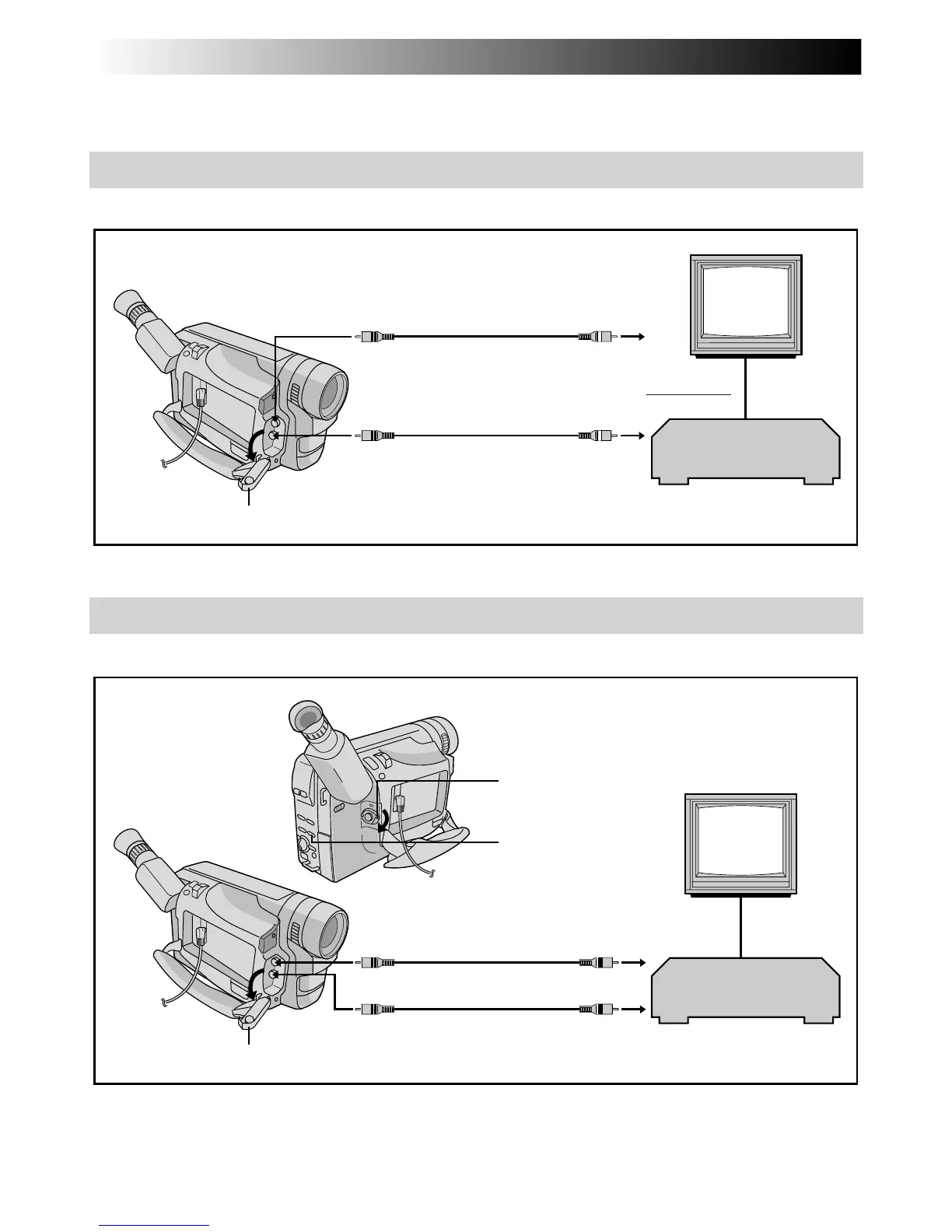

Basic Connections
Use optional Video and Audio cables.
Video cable (optional)
To VIDEO IN
Audio cable (optional)
To Video Output
To Audio Output
TV
VCR
Connector cover*
To TV or VCR
To AUDIO IN
A. Connection to a TV or VCR equipped with an S-VIDEO
Connection For Tape Dubbing
Use optional Video and Audio cables.
* When connecting the cables, open this cover.
Power Switch
PLAY/PAUSE (
4
/6)
Button
Connector cover*
Audio cable (optional)
To Video
Output
Video cable
(optional)
To
VIDEO IN
VCR (Recording deck)
TV
To AUDIO INTo Audio Output
