USING REMOTE CONTROL UNIT
The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic
operations (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote control unit makes additional
recording functions possible.
BUTTONS
FUNCTIONS
With the camcorder’s power switch With the camcorder’s power switch set
set to “CAMERA”. to “PLAY”.
1 Infrared beam
Transmits the beam signal.
transmitting window
2 ZOOM (T/W) Buttons Zoom in/out (Z pg. 18) —
3 PLAY Button — Playback start (Z pg. 34)
4 STOP Button — Stop (Z pg. 34)
5 REW Button Retake (rewind)/Quick Review (Z pg. 18) Rew/Rew Shuttle Search (Z pg. 35)
6 INSERT Button — Insert Editing (Z pg. 44)
7 START/STOP Button Functions same as the Recording Start/Stop button on the camcorder.
8 INT. TIME Button Self-Timer/Time-Lapse (Z pg. 43) —
9 REC TIME Button Animation/Time-Lapse (Z pg. 43) —
0 PAUSE Button — Pause (Z pg. 35)
! FF Button Retake (forward) (Z pg. 18) FF/FF Shuttle Search (Z pg. 35)
@ A.DUB Button — Audio dubbing (Z pg. 45)
# PAUSE IN Connector — Z pg. 40
$ MBR SET Button — Z pg. 39
% VISS Button Index Code marking (Z pg. 43) —
^ VCR CTL Button — Z pg. 39
& R.A.EDIT Buttons — Z pg. 40
RM-V705U
(provided)
RM-V700U
(optional)

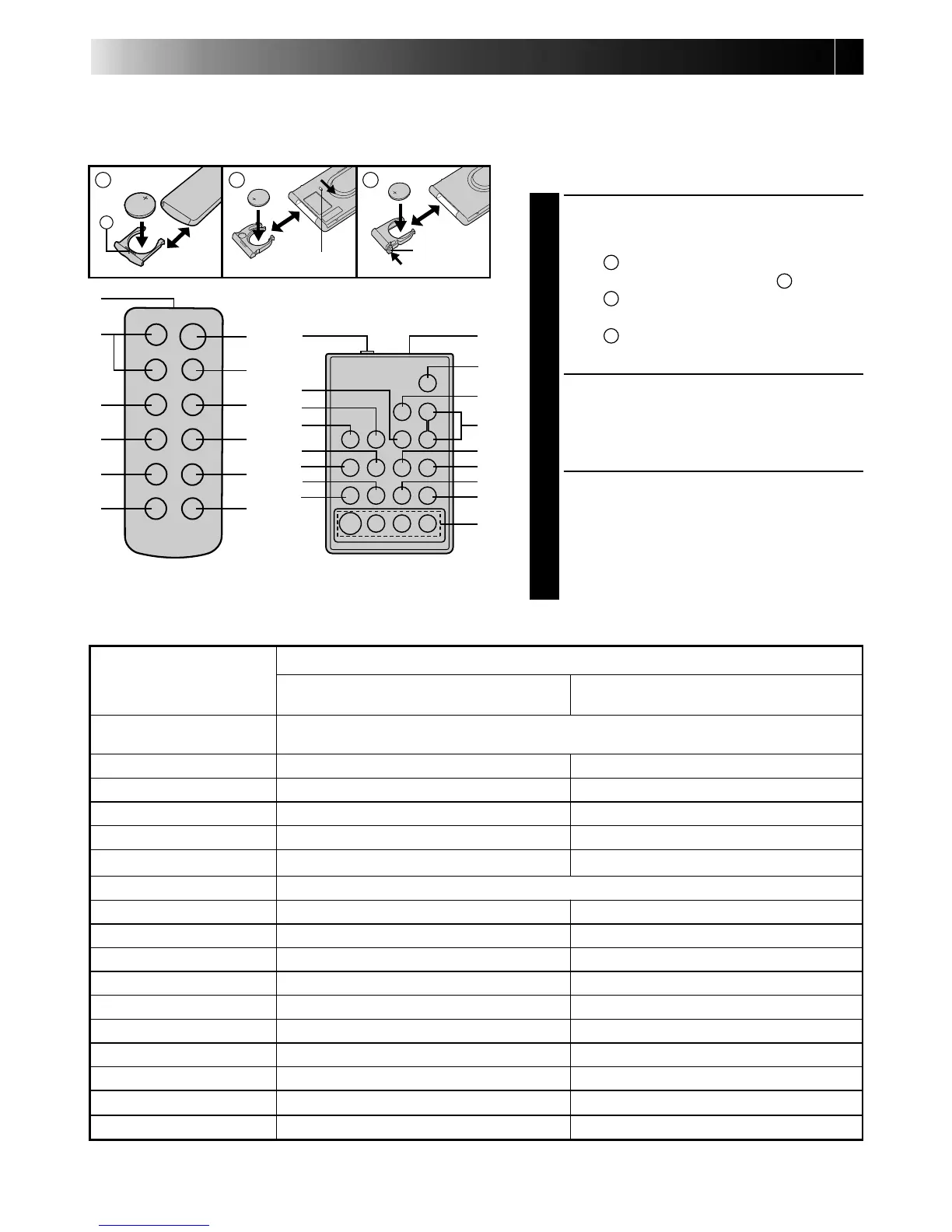

Installing The Battery
PULL OUT BATTERY
HOLDER
1
Type
A
: Pull out by inserting a pointed
instrument into slot
a
.
Type
B
: Pull out while sliding the lock
hole.
Type
C
: Pinch the release tab and pull
out.
INSERT BATTERY
2
Making sure the plus (+) side is up, insert
the lithium battery (CR2025)* into the
battery holder.
REPLACE BATTERY HOLDER
3
Insert the battery holder into the remote
control unit, and push the holder until it
clicks into place.
* Read the caution concerning lithium
batteries (
Z pg. 2).
# — & : RM-V700U only.
Lock hole
Release
tab
To Next Page
