JVC GR-D60EK - PARTS LIST; 1. EXPLODED VIEW; 1.1 PACKING AND ACCESSORY ASSEMBLY <M1>

(No.86733)3-1
PARTS LIST
SAFETY PRECAUTION
Parts identified by the  symbol are critical for safety. Replace only with specified part numbers.
BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to safety and performance. We recommend that genuine
JVC parts be used.
1. EXPLODED VIEW

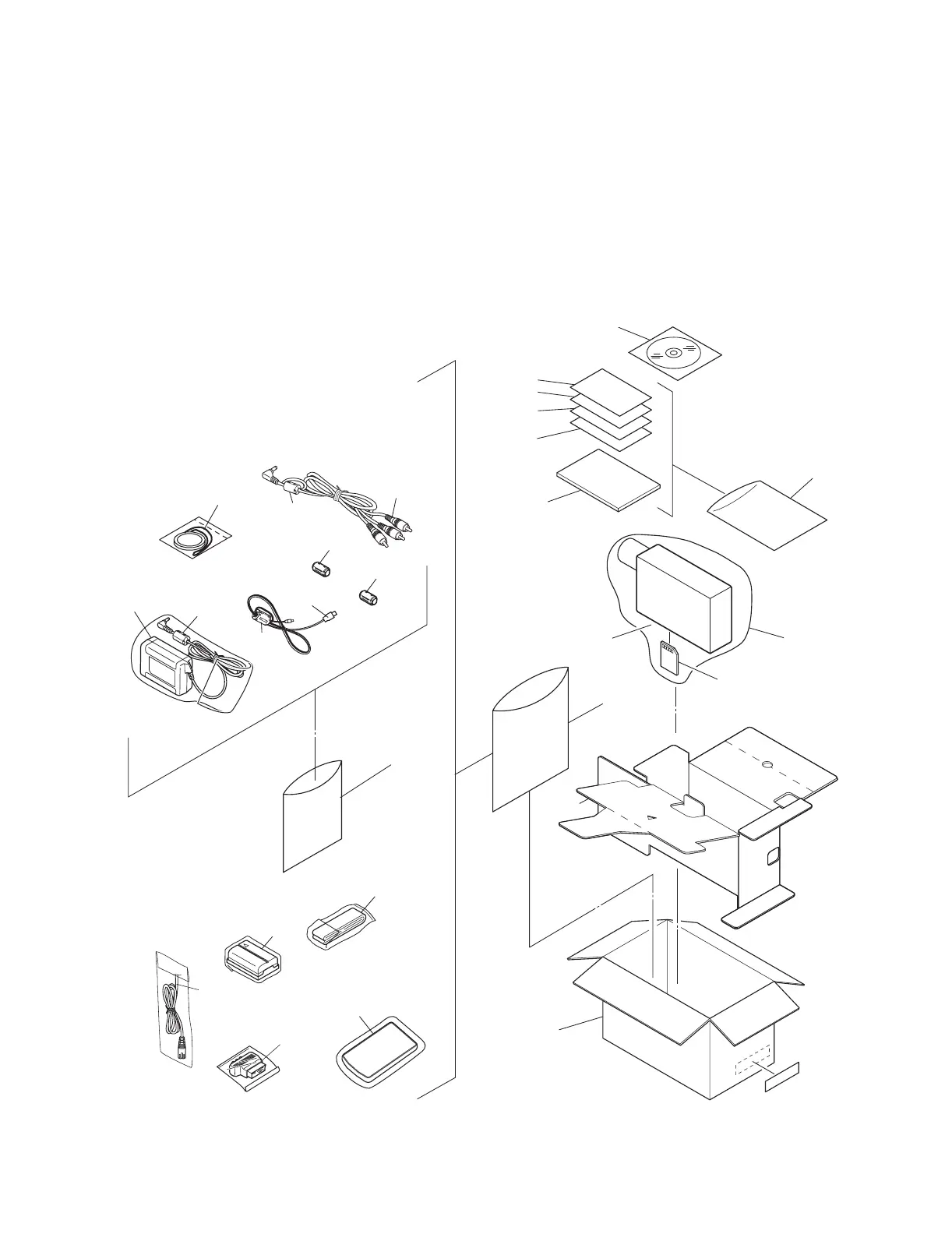

1.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
29
41
7
8
9
6
4
5
40
34
24
25
26
20
2
30
32
31
23
28
27
36
1
LABEL
(SERIAL)
37
33
3
39
FINAL ASSEMBLY
<M2>
