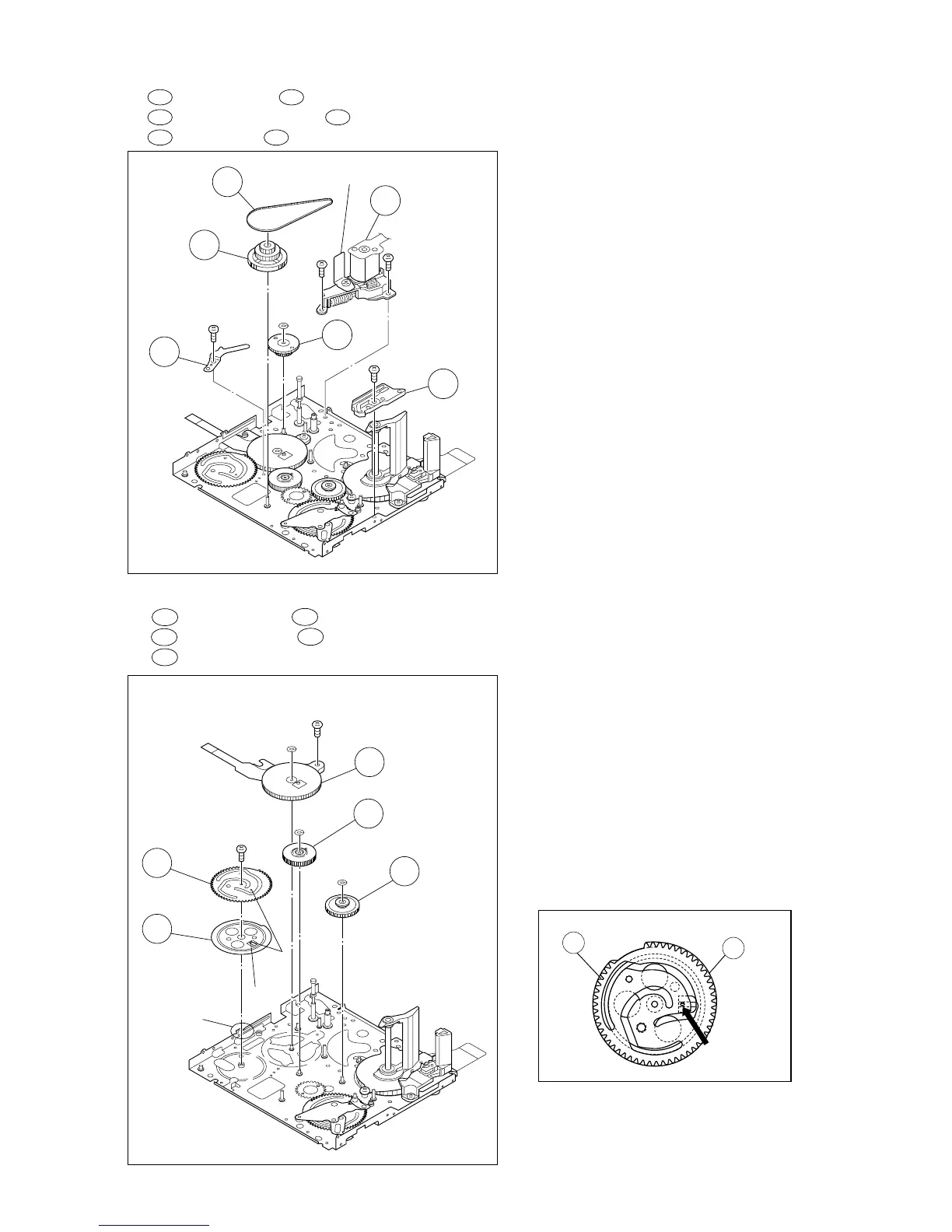

Fig. 2-4-13

9. 9a Loading guide/ 9b Timing belt

9c Center gear assembly/ 9d Motor bracket assembly

9e Worm wheel/ 9f Gear holder

Note 9a:

Carefully handle the DEW sensor. (Don’t touch the sensor

surface in particular.)

Note 9b:

When engaging the timing belt, make sure that it securely

engages with the gears of both the center gear assembly and

reel drive pulley assembly.

Fig. 2-4-14

10. 10a Main cam gear/ 10b Brake control plate

10c Rotary encoder/ 10d Connect gear

10e Reel drive pulley assembly

Note 10a:

When removing/refitting parts, pay careful attention to the

flexible board and so on not to damage them.

Note 10b:

When reinstalling the main cam gear and the brake control plate,

first fit them together so that the protrusion on the brake control

plate is set in the slot on the main cam gear as shown below,

next install the two together to the main deck assembly.

(W9)

(S9)

Note 9a

Note 9b

(S9)

10a

(W10a)

(S10)

Note

10b

Note 10a

(L10)

(W10b)

10b

10c

10d

10e

Note 10b

10a

10b
