PLAYBACK Basic Connections (Cont.)

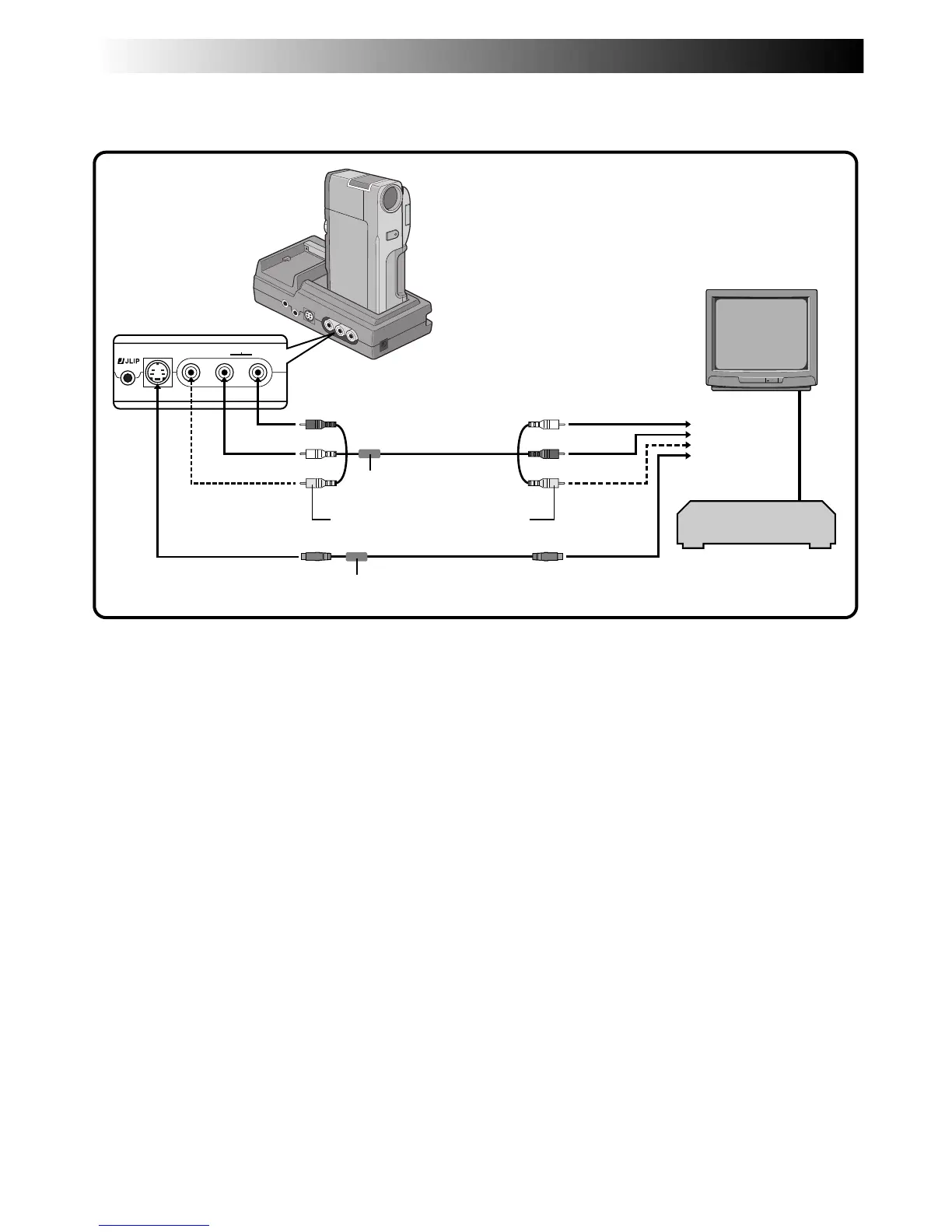

VCR/TV connection (using the AC Charger Station) (Cont.)
Please refer to your VCR and/or TV instruction manual(s) when connecting.
Red
White
Yellow
Yellow
White
Red
VIDEO/AUDIO
cable (provided)
VCR
Core filter
To S-VIDEO IN
connector
To AUDIO OUT
connectors (L/R)
To AUDIO IN
connectors (L/R)
To
TV or VCR
TV
Core filter
To S-VIDEO OUT
connector
( )
connect when the S-VIDEO
cable is not used
S-VIDEO cable
(provided)
To VIDEO OUT
connector
To VIDEO IN
connector
Yellow : VIDEO
White : AUDIO L
Red : AUDIO R
