JVC GR-DVX44EG - Page 124

REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION
CAPACITOR
C7501 A C 2C
C7502 A C 2C
C7503 A C 2B
C7504 A C 2B
C7505 A C 2A
C7506 A C 2A
C7507 A C 2B
C7508 A C 2A
C7509 A C 2B
C7601 A C 1A
C7602 A C 1A
C7603 A C 1A
C7604 A C 1A
C7605 A C 1A
C7606 A C 1A
C7607 A C 2B
C7608 A C 1A
C7609 A C 1A
C7610 A C 2B
C7611 A C 2B
C7612 A C 2B
C7613 A C 2A
C7614 A C 2A
C7615 A C 2A
C7616 A C 2A
C7617 A C 2A
C7618 A C 2A
C7619 A C 2A
C7620 A C 2A
C7621 A C 2A
C7622 A C 2A
C7623 A C 1B
C7624 A C 1B
C7625 A C 1C
C7626 A C 1B
C7627 A C 1B
C7628 A C 2B
C7629 A C 1A
C7630 A C 2A
C7631 A C 2A
C7632 A C 1A
C7633 A C 1A
C7634 A C 1A
C7635 A C 1A
C7637 A C 1A
C7638 A C 1A
C7640 A C 2B
C7641 A C 1B
C7643 A C 2B
C7644 A C 2C
C7645 A C 2C
C7646 A C 1C
C7647 A C 1C
C7648 A C 1C
CONNECTOR
CN761 A C 1C
CN762 A C 1A
DIODE
D7601 A C 1B
IC
IC7601 A C 2A
IC7602 A C 1B
IC7603 A C 2B
IC7604 A C 1B
IC7605 A C 2C
IC7606 A C 1C
COIL
L7501 A C 2B
L7502 A C 2A
L7601 A C 2B
L7602 A C 2B
L7603 A C 2B
L7604 A C 2A
L7605 A C 1A
L7606 A C 2B
L7607 A C 1A
TRANSISTOR
Q7501 A C 2B
Q7503 A C 2A
Q7504 A C 2B
Q7505 A C 2A
Q7506 A C 2B
Q7601 A C 1B
Q7602 A C 1B
Q7603 A C 1B
Q7604 A C 1B
Q7608 A C 1B
Q7609 A C 1B
Q7610 A C 1C
RESISTOR
R7501 A C 2B
R7502 A C 2B
R7503 A C 2B
R7504 A C 2A
R7505 A C 2A
R7506 A C 2B
R7507 A C 2B
R7508 A C 2B
R7509 A C 2B
R7510 A C 2B
R7601 A C 2A
R7602 A C 2A
R7603 A C 1C
R7604 A C 1C
R7605 A C 1C
R7606 A C 1C
R7607 A C 1C
R7608 A C 2B
R7609 A C 1B
R7610 A C 1B
R7611 A C 1B
R7612 A C 1B
R7613 A C 1B
R7614 A C 1A
R7615 A C 1A
R7616 A C 1B
R7617 A C 1B
R7618 A C 1B
R7619 A C 1A
R7630 A C 1B
R7631 A C 1A
R7632 A C 2B
R7633 A C 2A
R7634 A C 2C
R7635 A C 2B
R7636 A C 2B
OTHER
F7501 A C 2A
JP7501 A C 1C
JP7502 A C 1C
JP7503 A C 1C
PC013 A C 1A
T7501 A C 2C
ZP1 B C 1C
ZP2 B C 1C
ZP3 B C 1C
ZP1-1 B C 1C
ZP1-3 B C 1C
ZP1-5 B C 1C
ZP1-6 B C 1C
ZP1-7 B C 1C
ZP1-9 B C 1C
ZP2-1 B C 1A
ZP1-11 B C 2A
ZP1-12 B C 1C
ZP1-13 B C 2B
ZP1-14 B C 1C
ZP1-15 B C 1C
ZP1-16 B C 2B
ZP1-17 B C 1C
ZP1-20 B C 2C
ZP1-22 B C 1C
ZP1-24 B C 2C
ZP1-26 B C 2C
ZP1-28 B C 2C
ZP1-31 B C 2C
ZP1-32 B C 2C
ZP1-33 B C 2C
ZP1-34 B C 1C
ZP1-35 B C 2A
ZP1-36 B C 2A
ZP1-37 B C 2B
ZP2-10 B C 1A
ZP2-15 B C 1A
ZP2-16 B C 1A
ZP2-17 B C 1A
ZP2-24 B C 1A
2
1
CN761
38
39
CAUTION HIGH VOLTAGE
4
5
1
8
1 34
5
85
41
4
5
1
8
7
8
1
14
CN762
24 1
12 25
13 24
1
37 38
36
F
375mA 32V
F7501
FOIL SIDE
(
B
)
YB10321-01-01
MONITOR PWB MONITOR PWB
YB10321-01-01
COMPONENT SIDE
(
A
)
1
2
A
C
B
C
B
A
1
2

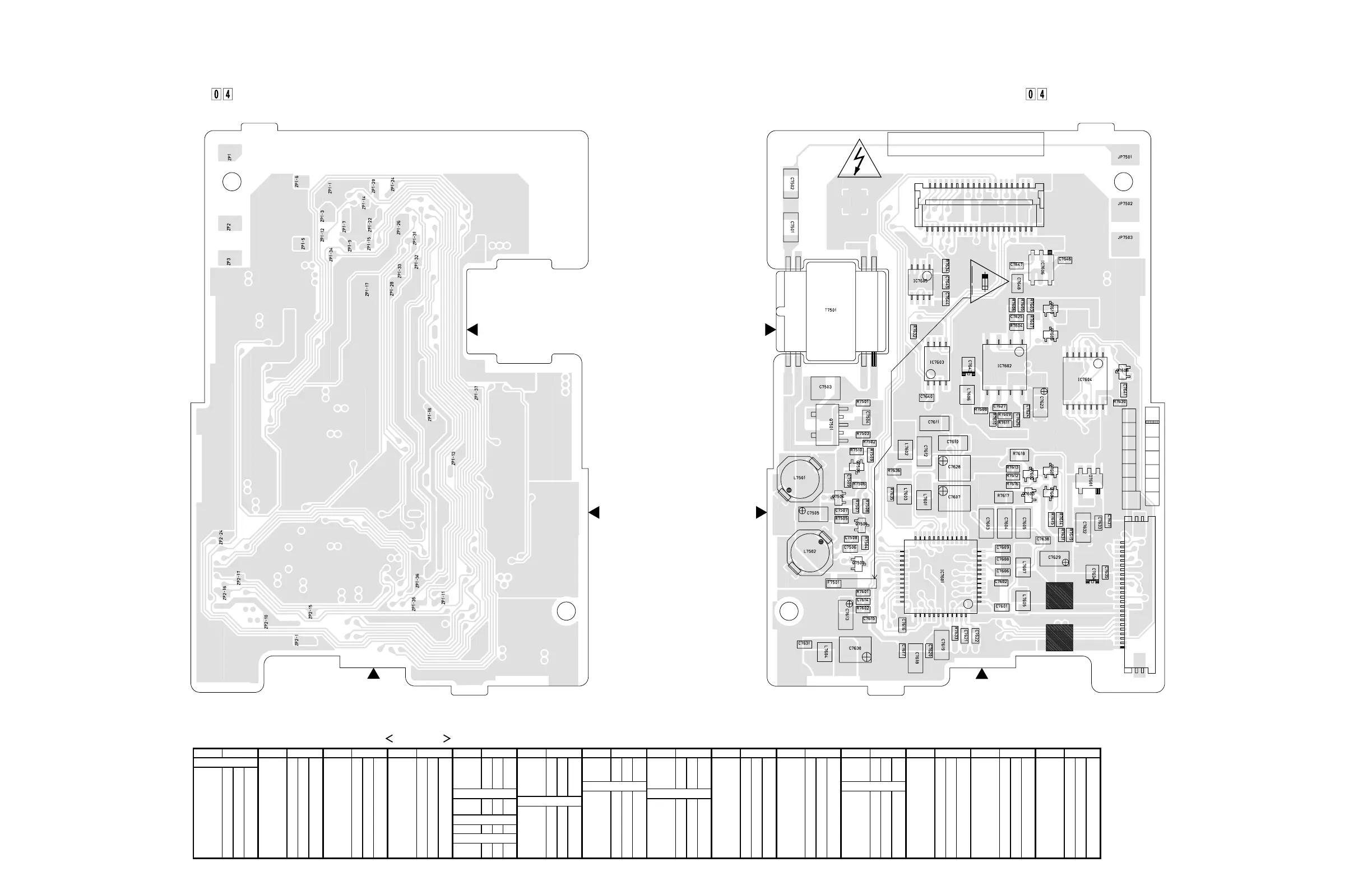

COMPONENT PARTS LOCATION GUIDE MONITOR
4.40 MONITOR CIRCUIT BOARD
4-87 4-88
