JVC GR-DVX44EG - Page 125

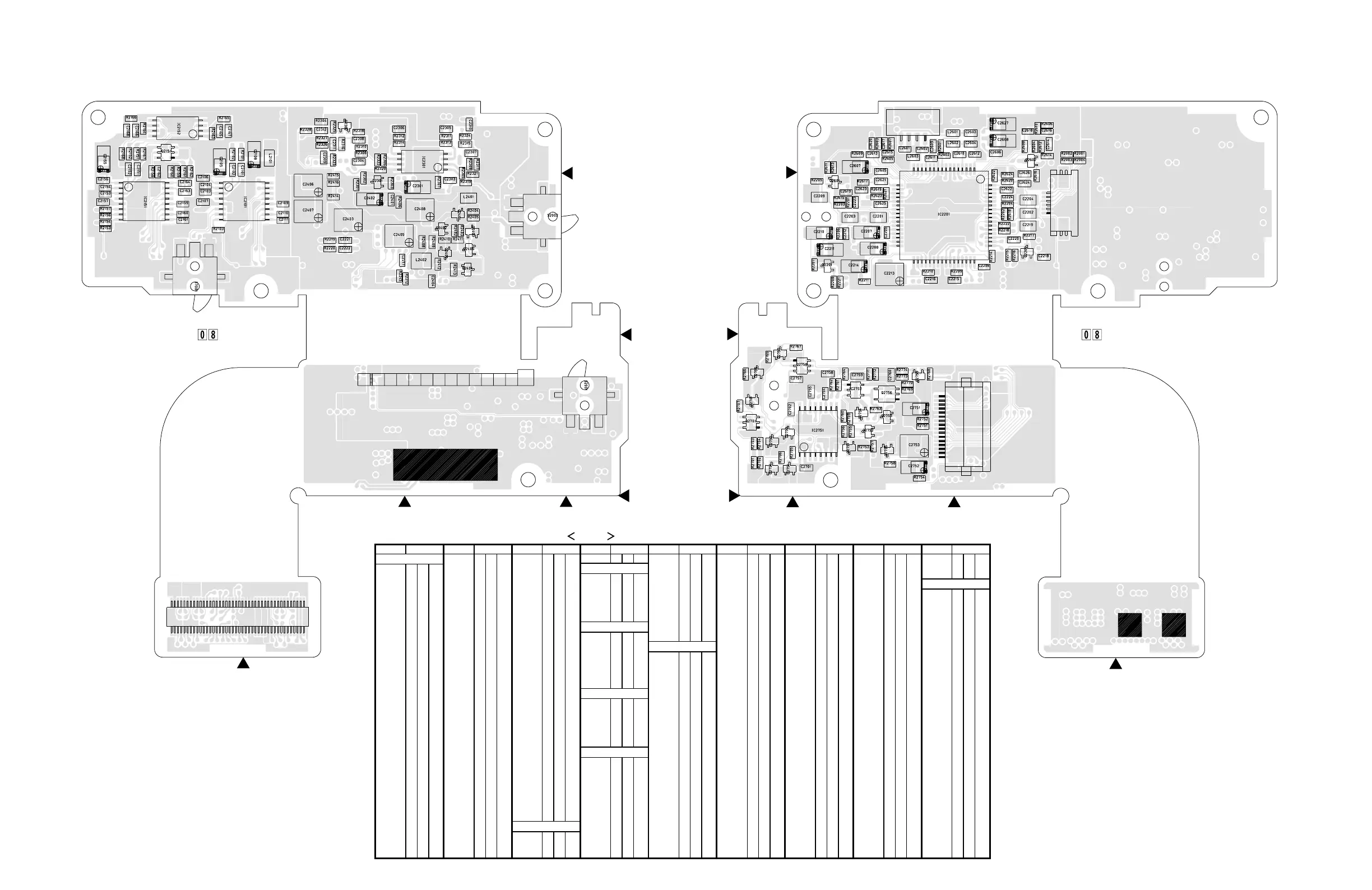

4.41 AUDIO CIRCUIT BOARD
4-89 4-90
41
1
80
40
CN801
85 14
8 916
1
8 9
1
16
8 1
5 4
16
CN805
1
4
5
3
1
8
9
1
16
61
CN803
48
49
64
116
33
17
32
14
CN804
YB10320-01-01
AUDIO PWB
YB10320-01-01
AUDIO PWB
FOIL SIDE
(
B
)
COMPONENT SIDE
(
A
)
A
1
342
D
C
B
D
C
B
43
A
2
1
COMPONENT PARTS LOCATION GUIDE AUDIO
REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION
CAPACITOR
C2101 B C 1D
C2102 B C 1D
C2103 B C 1C
C2104 B C 1C
C2105 B C 1D
C2106 B C 1C
C2107 B C 1C
C2108 B C 2D
C2109 B C 2C
C2110 B C 2C
C2111 B C 2C
C2151 B C 1D
C2152 B C 1D
C2153 B C 1C
C2154 B C 1C
C2155 B C 1D
C2156 B C 1C
C2157 B C 1C
C2159 B C 1C
C2160 B C 1C
C2161 B C 1C
C2162 B C 1D
C2163 B C 1C
C2164 B C 1C
C2165 B C 1D
C2166 B C 1D
C2167 B C 1D
C2168 B C 1D
C2201 A C 3C
C2202 A C 2C
C2203 A C 3C
C2204 A C 2C
C2205 A C 3C
C2206 A C 2C
C2207 A C 3C
C2208 A C 3C
C2209 A C 3C
C2210 A C 3C
C2211 A C 3C
C2212 A C 3C
C2213 A C 3C
C2214 A C 3C
C2215 A C 3C
C2216 A C 3C
C2217 B C 2C
C2218 A C 2C
C2219 A C 2C
C2220 A C 2C
C2221 B C 2C
C2222 B C 2C
C2223 A C 3C
C2224 A C 2C
C2301 B C 3C
C2303 B C 3C
C2304 B C 2D
C2305 B C 3D
C2306 B C 2D
C2307 B C 3D
C2308 B C 2D
C2309 B C 2D
C2310 B C 3D
C2311 B C 2D
C2312 B C 2D
C2401 B C 2C
C2402 B C 2C
C2403 B C 2C
C2404 B C 3C
C2405 B C 2C
C2406 B C 2C
C2407 B C 2C
C2408 B C 3C
C2601 A C 3D
C2602 A C 3D
C2603 A C 2D
C2604 A C 2D
C2605 A C 3D
C2606 A C 2D
C2607 A C 3D
C2608 A C 2D
C2609 A C 3D
C2610 A C 2D
C2611 A C 3D
C2612 A C 2D
C2613 A C 3D
C2614 A C 2D
C2615 A C 3D
C2616 A C 2D
C2617 A C 3D
C2618 A C 2D
C2619 A C 3C
C2620 A C 3D
C2621 A C 3C
C2622 A C 2C
C2623 A C 3C
C2624 A C 2C
C2625 A C 3C
C2626 A C 2C
C2627 A C 2D
C2701 A C 3B
C2702 A C 4B
C2751 A C 3B
C2752 A C 3B
C2753 A C 3B
C2754 A C 3B
C2755 A C 3B
C2757 A C 3B
C2758 A C 3B
C2759 A C 3B
C2760 A C 3B
CONNECTOR
CN801 B C 1A
CN803 A C 2C
CN804 A C 3D
CN805 A C 3B
DIODE
D2701 A C 4B
D2751 A C 4B
D2752 A C 4B
D2753 A C 4B
D2754 A C 4B
D2755 A C 4B
IC
IC2101 B C 2C
IC2151 B C 1C
IC2152 B C 1D
IC2201 A C 3C
IC2301 B C 3D
IC2751 A C 3B
IC2752 A C 3B
COIL
L2101 B C 2D
L2401 B C 3C
L2402 B C 3C
L2601 A C 3D
L2602 A C 3D
L2603 A C 3D
TRANSISTOR
Q2151 B C 1D
Q2201 A C 3C
Q2202 A C 2C
Q2301 B C 2C
Q2302 B C 2D
Q2401 B C 3C
Q2402 B C 3C
Q2403 B C 3C
Q2404 B C 3C
Q2405 B C 3C
Q2406 B C 3C
Q2601 A C 3C
Q2602 A C 2D
Q2701 A C 4B
Q2751 A C 3B
Q2752 A C 3B
Q2753 A C 3B
Q2754 A C 3B
Q2755 A C 3B
Q2756 A C 3B
Q2757 A C 4B
Q2758 A C 3B
Q2759 A C 3B
RESISTOR
R2001 A C 2D
R2002 A C 2D
R2003 A C 2D
R2004 A C 2D
R2101 B C 1D
R2102 B C 1D
R2103 B C 1C
R2151 B C 1D
R2152 B C 1D
R2153 B C 1C
R2154 B C 1C
R2156 B C 1C
R2157 B C 1C
R2158 B C 1D
R2159 B C 1D
R2160 B C 1D
R2161 B C 1D
R2162 B C 1D
R2163 B C 1D
R2164 B C 1D
R2165 B C 1D
R2166 B C 1D
R2167 B C 1D
R2168 B C 1D
R2201 A C 3C
R2202 A C 2C
R2203 A C 3C
R2204 A C 2C
R2205 A C 3C
R2206 A C 3C
R2207 A C 3C
R2208 A C 3C
R2209 A C 2C
R2210 A C 3C
R2211 A C 3C
R2212 B C 3C
R2213 B C 2C
R2214 A C 2C
R2215 A C 2C
R2216 A C 2C
R2217 A C 2C
R2218 A C 2C
R2219 B C 2C
R2220 B C 2C
R2221 A C 3C
R2222 A C 2C
R2301 B C 2C
R2302 B C 2C
R2303 B C 2C
R2304 B C 2D
R2305 B C 3D
R2306 B C 2D
R2307 B C 3C
R2308 B C 2D
R2309 B C 3D
R2310 B C 2D
R2311 B C 3D
R2312 B C 2D
R2313 B C 3D
R2314 B C 2D
R2315 B C 3D
R2316 B C 2D
R2317 B C 3D
R2318 B C 2D
R2319 B C 3C
R2320 B C 2D
R2321 B C 3C
R2322 B C 2D
R2323 B C 2D
R2324 B C 3D
R2325 B C 2D
R2326 B C 2D
R2327 B C 2D
R2328 B C 2D
R2402 B C 3C
R2403 B C 3C
R2404 B C 3C
R2405 B C 3C
R2406 B C 2C
R2408 B C 3C
R2409 B C 3C
R2410 B C 3C
R2411 B C 3C
R2412 B C 3C
R2413 B C 3C
R2414 B C 2C
R2415 B C 2C
R2416 B C 2C
R2601 A C 3D
R2602 A C 3D
R2603 A C 3D
R2604 A C 2D
R2605 A C 3D
R2606 A C 2D
R2607 A C 3D
R2608 A C 2D
R2609 A C 3D
R2610 A C 2D
R2611 A C 3D
R2612 A C 2D
R2613 A C 3D
R2614 A C 2D
R2615 A C 3C
R2616 A C 2C
R2617 A C 3C
R2618 A C 2C
R2619 A C 3C
R2620 A C 2C
R2621 A C 3C
R2622 A C 2C
R2623 A C 3C
R2624 A C 2C
R2701 A C 4B
R2702 A C 4B
R2703 A C 4B
R2704 A C 4B
R2705 A C 4B
R2706 A C 4B
R2707 A C 4B
R2751 A C 3B
R2752 A C 3B
R2753 A C 3B
R2754 A C 3B
R2755 A C 3B
R2756 A C 3B
R2757 A C 3B
R2758 A C 3B
R2759 A C 3B
R2760 A C 3B
R2761 A C 3B
R2762 A C 3B
R2763 A C 3B
R2764 A C 3B
R2765 A C 4B
R2766 A C 4B
R2767 A C 3B
R2768 A C 3B
R2769 A C 3B
R2770 A C 3B
R2771 A C 3B
R2772 A C 3B
R2773 A C 3B
R2774 A C 3B
OTHER
S2001 B C 4B
S2002 B C 3C
S7001 B C 1C
