GETTING STARTED
EN 9
GETTING STARTED

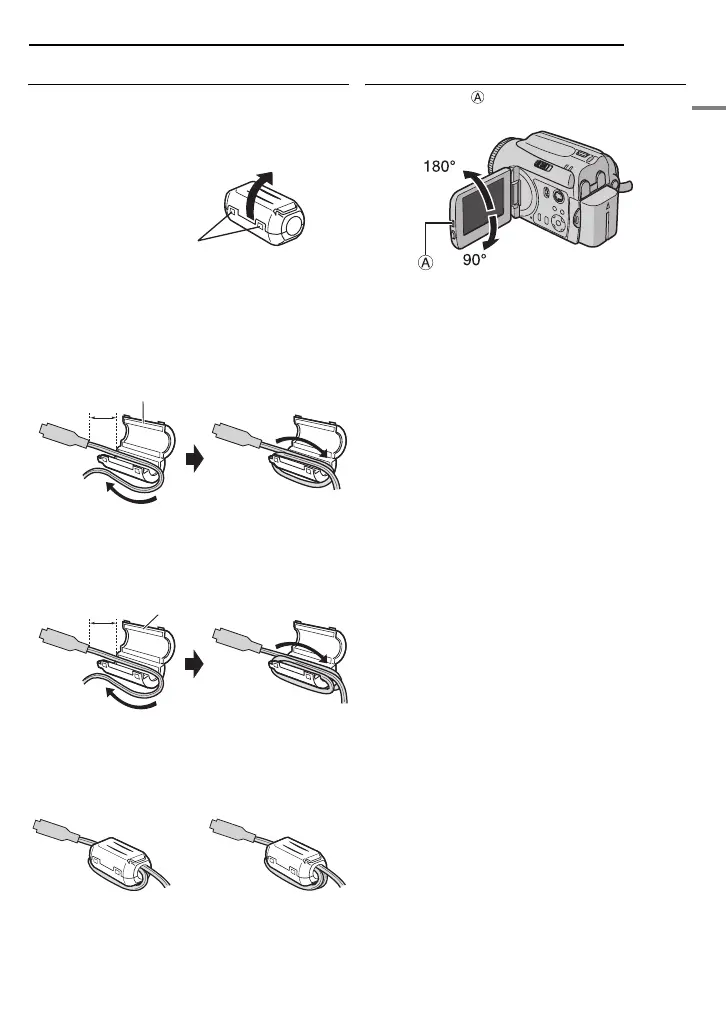

Attaching the Core Filter
Attach the core filters to the cables. The core
filter reduces interference.
1 Release the stoppers on both ends of the
core filter.
2 Run the cable through the core filter, leaving
approx. 3 cm of cable between the cable plug
and the core filter.
S-Video/Audio/Video/USB cable
Wind the cable once around the outside of the
core filter as shown in the illustration.
DC cord
Wind the cord twice around the outside of the
core filter as shown in the illustration.
● Wind the cable so that it is not slack.
3 Close the core filter until it clicks shut.
NOTES:
● Take care not to damage the cable.
● When connecting a cable, attach the end with the
core filter to the camera.
LCD Monitor
Pull on the end of the LCD monitor and open
the LCD monitor fully. It can rotate 270°.
Stopper
Wind once.
Core Filter (Large)
3 cm
Wind twice.
Core Filter (Small)
3 cm
S-Video/Audio/Video/
USB Cable
DC Cord
