JVC GZ-R30 - Connecting Via the AV Connector

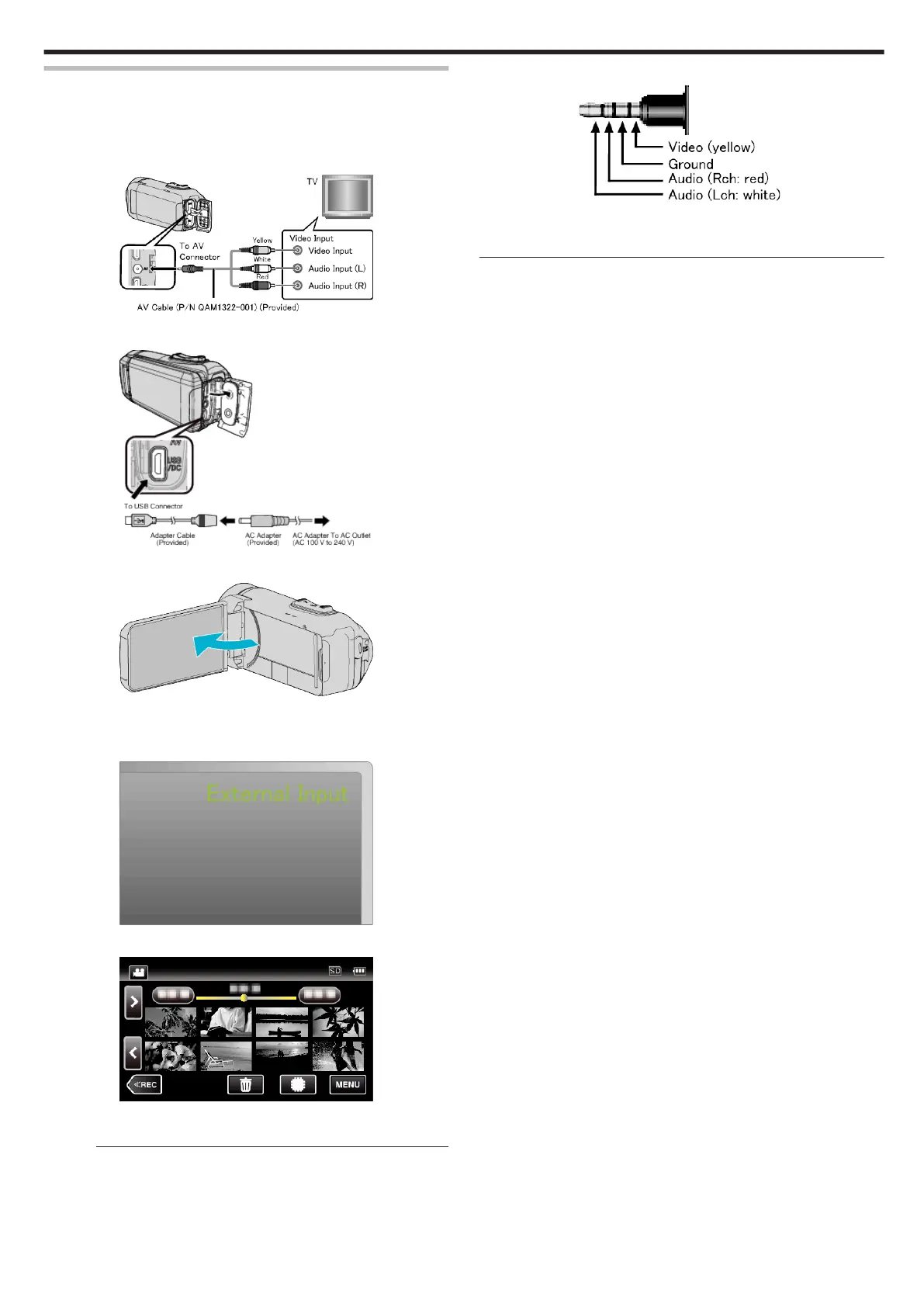

Connecting via the AV Connector
To playback videos on TV, connect the AV cable (optional: QAM1322-001)
to the AV terminal of this unit.
0
Refer also to the instruction manual of the TV in use.
1
Connect to a TV.
.
2
Connect the adapter cable and AC adapter to this unit.
.
3
Open the LCD monitor.
.
0
The unit turns on automatically.
4
Press the external input button on the TV to switch to the input from this
unit via the connected connector.
.
5
Play back a file.
.
“Playing Back Videos” (A p. 44)
“Playing Back Still Images” (A p. 51)
Memo :
0
For questions about the TV or method of connection, contact your TV's
manufacturer.
0
AV cable (Optional: QAM1322-001)
Wiring specifications (for video/audio) of the 4-pole mini plug are described
in the following.
To purchase, consult your nearest JVC service center.
.
0
When using the optional AV cable, attach the core filter provided with this
unit first.
“Attaching the Core Filter (for Optional AV Cable)” (A p. 8)
Playback
55
