Connecting via the AV Connector

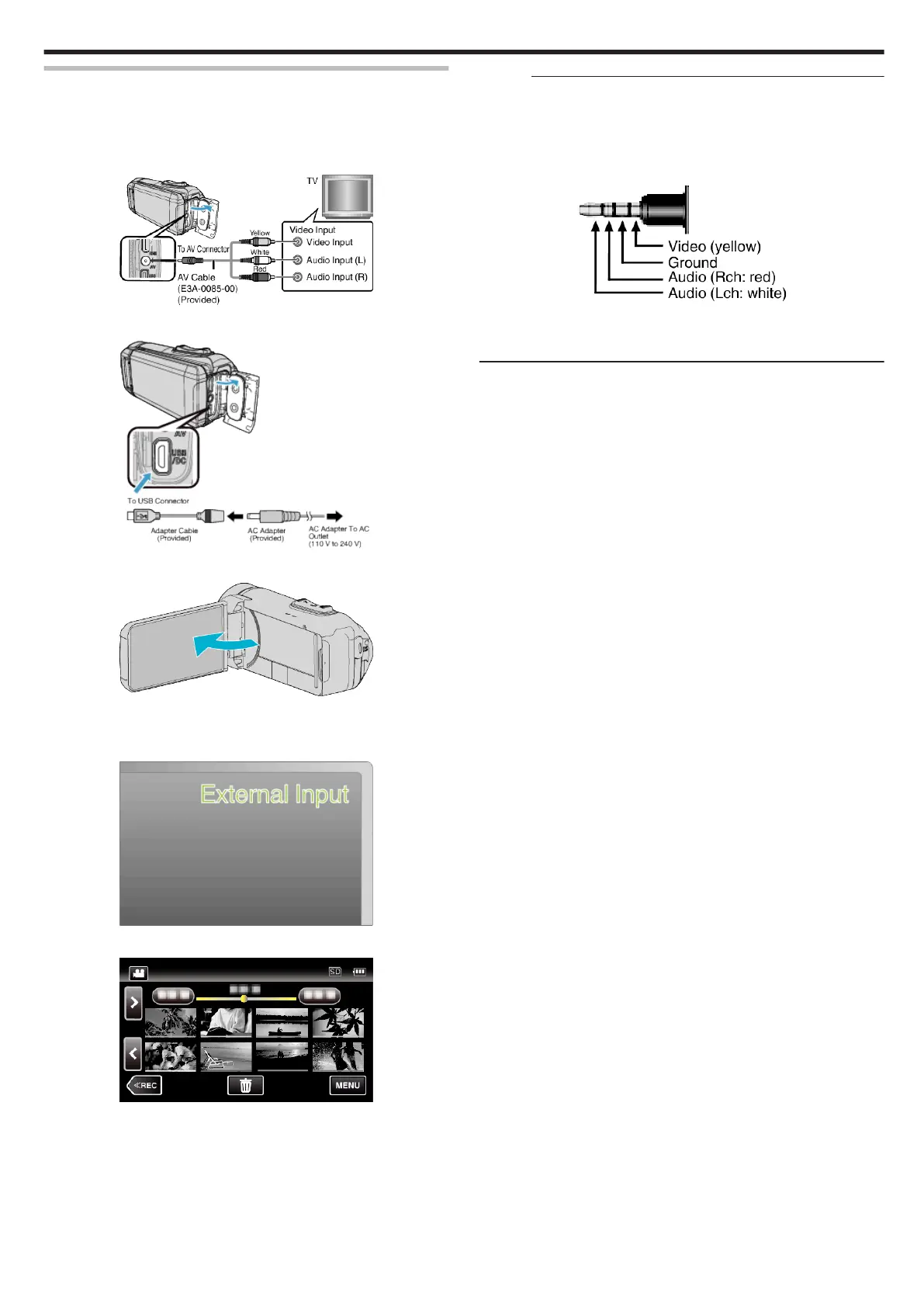

To playback videos on TV, connect the AV cable (provided: E3A-0085-00)
to the AV terminal of this unit.
0
Refer also to the instruction manual of the TV in use.
1
Connect to a TV.
.
2
Connect the adapter cable and AC adapter to this unit.
.
3
Open the LCD monitor.
.
0
The unit turns on automatically.
4
Press
the external input button on the TV to switch to the input from this
unit via the connected connector.
.
5
Play back a file.
.
“Playing Back Videos” (A p. 47)
“Playing Back Still Images” (A p. 53)
Memo :
0
For questions about the TV or method of connection, contact your TV's
manufacturer.
0
AV cable (provided: E3A-0085-00)
Wiring
specifications (for video/audio) of the 4-pole mini plug are described
in the following.
To purchase, consult your nearest JVC service center.
.
0
When
using the provided AV cable, attach the core filter provided with this
unit first.
“Attaching the Core Filter” (A p. 8)
Playback
57
