JVC HA-W500RF Service Manual

HA-W500RF (EG)/(EK)
6 (No.70270)

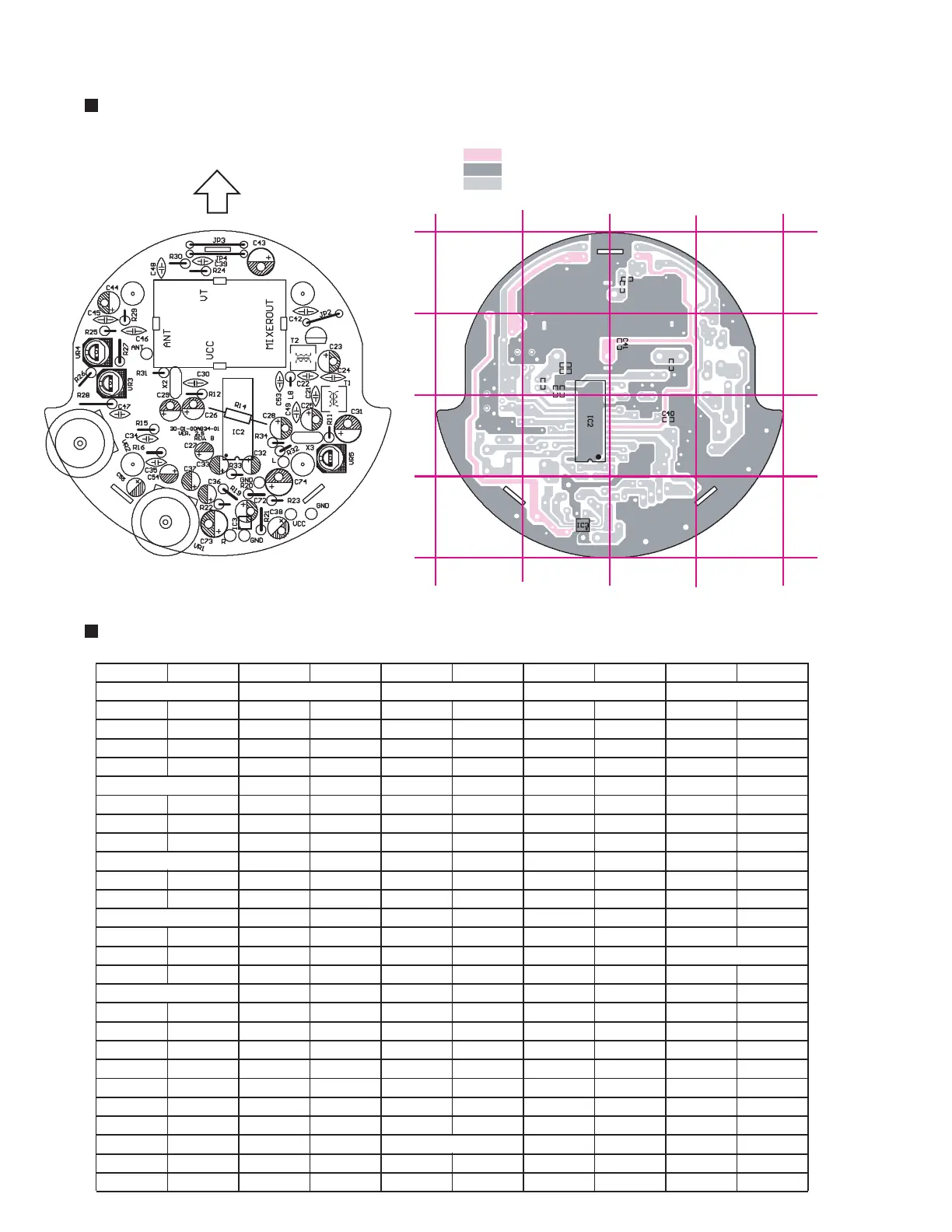

4.Print Circuit Board
Surface
Back side
shows the B(+) power supply
shows the ground
shows others.
Receiver (Headphones)
MAIN P.C.BOARD
TOP
A
1234
B
C
D
Receiver (Headphones)
MAIN P.C.B. LOCATION
Symbol
IC2
IC3
IC4
IC5
Q6
Q7
Q8
X2
X3
D2
D3
D4
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
Location
2B
2A
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
3C
2B
CHG.PCB
CHG.PCB
CHG.PCB
Symbol
R11
R12
R13
R14
R15
R16
R17
R18
R19
R20
R21
R22
R23
R24
R25
R26
R27
R28
R29
R30
R31
R32
R33
R34
R35
R36
Location
1B
CHG.PCB
2B
3B
3B
CHG.PCB
2A
2A
2A
3A
2A
3D
4C
4C
4C
4C
3D
3C
2B
2B
2B
CHG.PCB
CHG.PCB
Symbol
R37
R38
R39
R40
R41
R42
R43
R44
R45
R46
R47
R48
R49
R50
VR1
VR2
VR3
VR4
VR5
JP1
JP2
JP3
JP4
C21
C22
Location
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
CHG.PCB
3A
4B
4C
4C
1B
1C
3D
3D
1B
2C
Symbol
C23
C24
C25
C26
C27
C28
C29
C30
C31
C32
C33
C34
C35
C36
C37
C38
C39
C40
C41
C42
C43
C44
C45
C46
C47
C48
Location
1C
1C
1B
3B
3B
2B
3B
3C
1B
2B
3B
3B
3B
3A
3A
2A
3D
2D
2D
4D
4C
3C
4B
3D
Symbol
C49
C50
C51
C52
C53
C54
C55
C59
C60
C61
C72
C73
C74
T1
T2
L8
Location
2B
2C
3B
3A
CHG.PCB
CHG.PCB
CHG.PCB
2A
3A
2A
1B
2C
2C
ICs
Transistors
Filters
Diodes
Resistors
Resistors Resistors
Capacitors
Capacitors Capacitors
Coils
