JVC HA-W500RF - Exploded View; Mechanical Parts List

HA-W500RF (EG)/(EK)
(No.70270) 9
R
L
R
6
8
7
11
5
2
4
8
10
11
10
9
10
10
3
1
Charge P.C.B. Ass'y
Main P.C.B. Ass'y
R

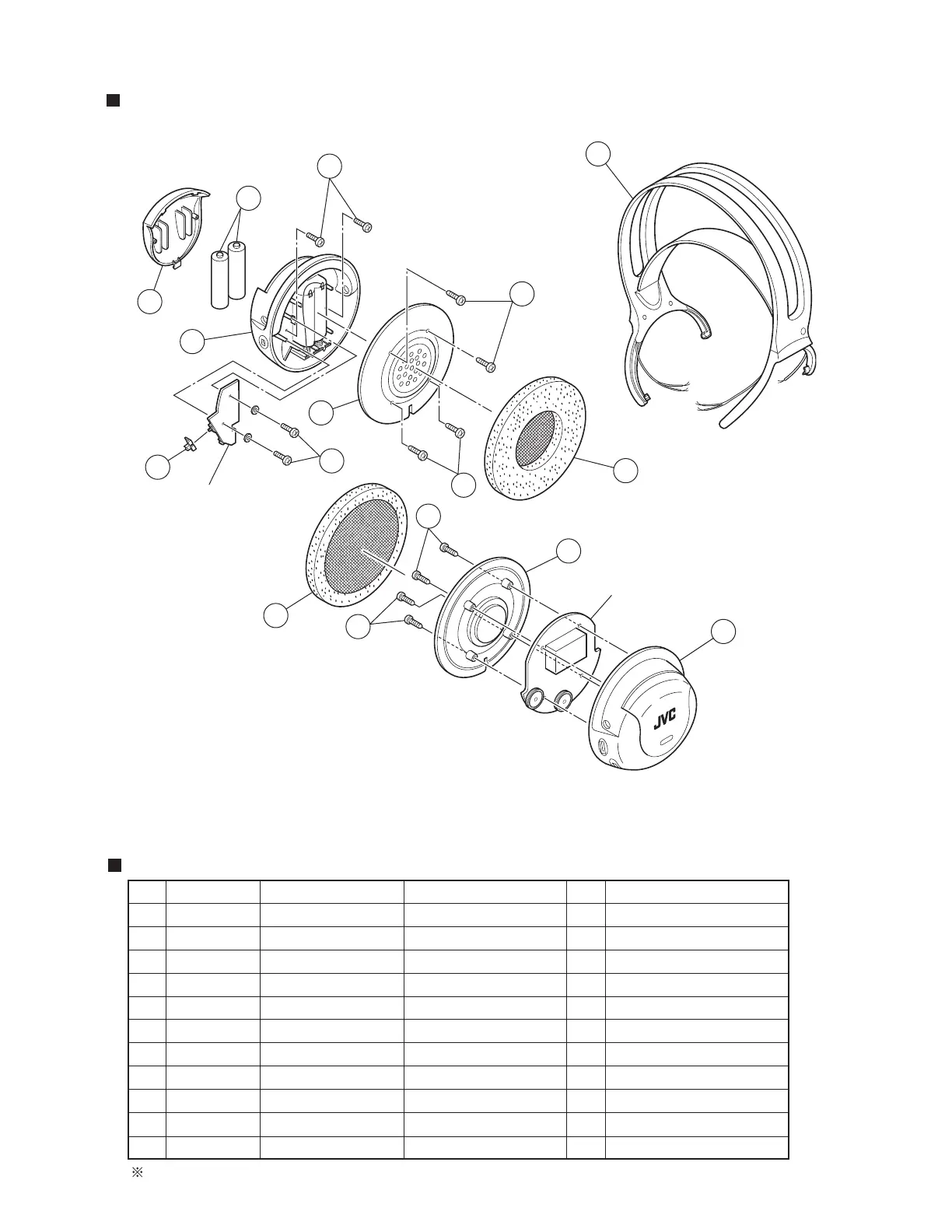

9.Exploded View
Receiver(Headphones)
A Item No. Parts No. Parts Name Q'ty Description
1 J34073-001 Headband Ass'y 1 with connecting wir e
2 J34074-001 Housing(L) Ass'y 1 with battery terminal
3 J34075-001 Housing(R) Ass'y 1
4 J34076-001 Battery Door 1
with protector
5 J34077-001 Driver Unit(L) Ass'y 1
with protector
6 J34078-001 Driver Unit(R) Ass'y 1
7 J47146-001 Swihch knob 1
8 J47144-001 Ear Pad 2
9 J46514-001
Rechargeable Ni-Cd batteries 1
10 QYSPSPU1411M Screw 8
11 QYSPSFT1403M Screw 4
Receiver(Headphones)
10.Mechanical Parts List
Parts marked ( A ) are safet
y
parts. When replacin
g
, be sur e to use the specifide one.
2pcs/pack
