JVC HR-DD949EE - Front View; Index

48 EN

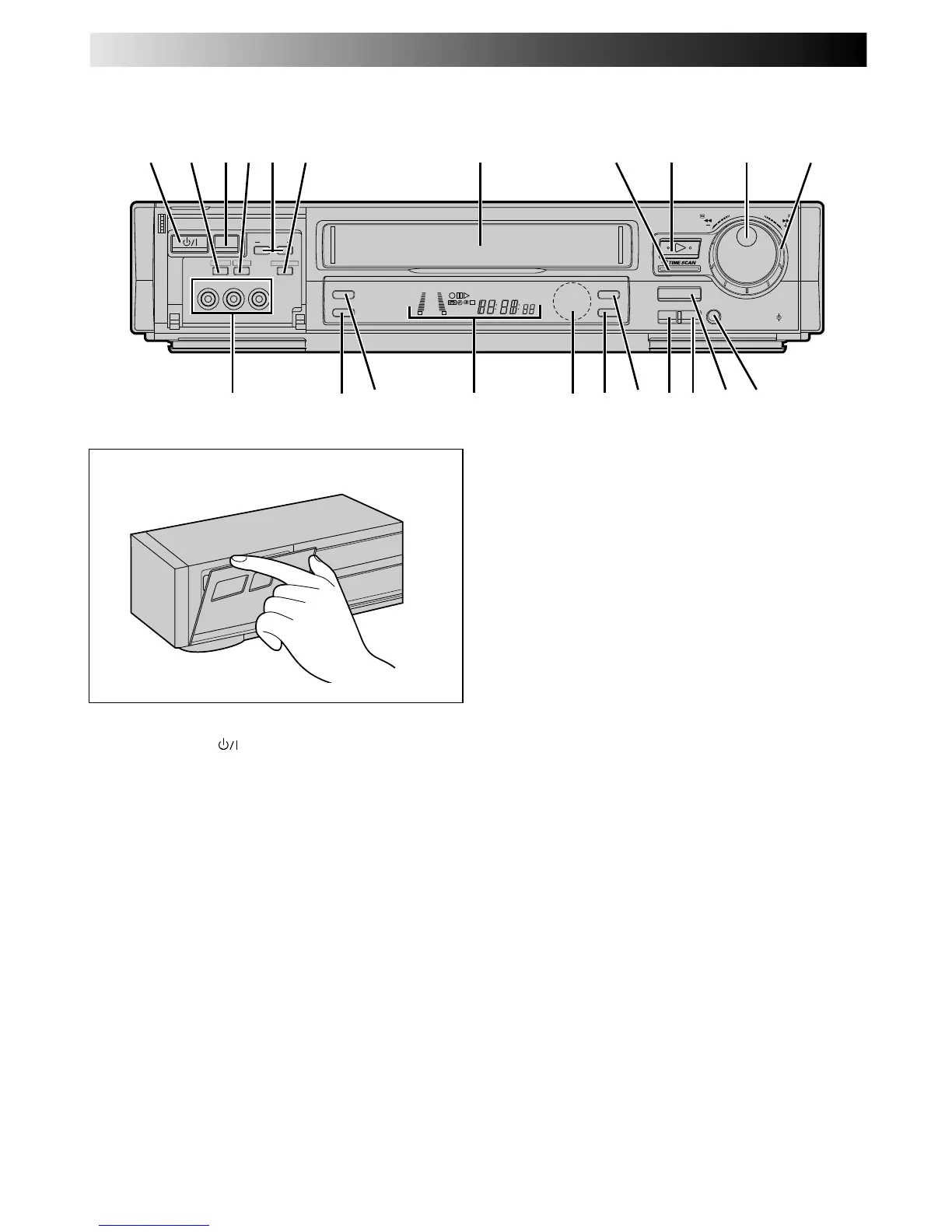

FRONT VIEW
INDEX
S
L
O
W
S
L
O
W
5 /
8
¡
1
q
6
VIDEO
TIMER
(MONO) L–AUDIO–R
TV PROG
3R PICTURE
AUTO SP/LP TIMER
SP/LP
TV PROG/
JOG
SHUTTLE
A. DUB SPATIALIZERINSERT
8
REW
FF
+8
4
0
6
10
–20dB
NORM
L
R
M
SP LP EP
REMAIN
REVIEW
3 4 62 5 7 0981
!
@
^
&
#
$
%
*
(
) q w
Open the lid to access covered connectors and buttons.
1 STANDBY/ON Button Z pg. 4
2 INSERT Button Z pg. 37
3 TIMER Button Z pg. 25, 27
4 A. DUB [Audio Dubbing] Button Z pg. 35
5 TV PROG +/– Buttons Z pg. 18
6 SPATIALIZER Button Z pg. 14
7 Cassette Loading Slot
8 TIME SCAN Indicator Z pg. 16
9 PLAY Button Z pg. 10
0 TV PROG Dial Z pg. 18
JOG Dial Z pg. 11
! TIME SCAN SHUTTLE Ring Z pg. 16
@ VIDEO/AUDIO Input Connectors Z pg. 34
# AUTO SP/LP TIMER Button Z pg. 29
$ 3R PICTURE Button Z pg. 12
% Display Panel Z pg. 49
^ Infrared Beam Receiving Window
& RECORD Button Z pg. 18
* PAUSE Button Z pg. 11
( Rewind [REW] Button Z pg. 10
) Fast Forward [FF] Button Z pg. 10
q STOP/EJECT Button Z pg. 10
w SP/LP Button Z pg. 18
