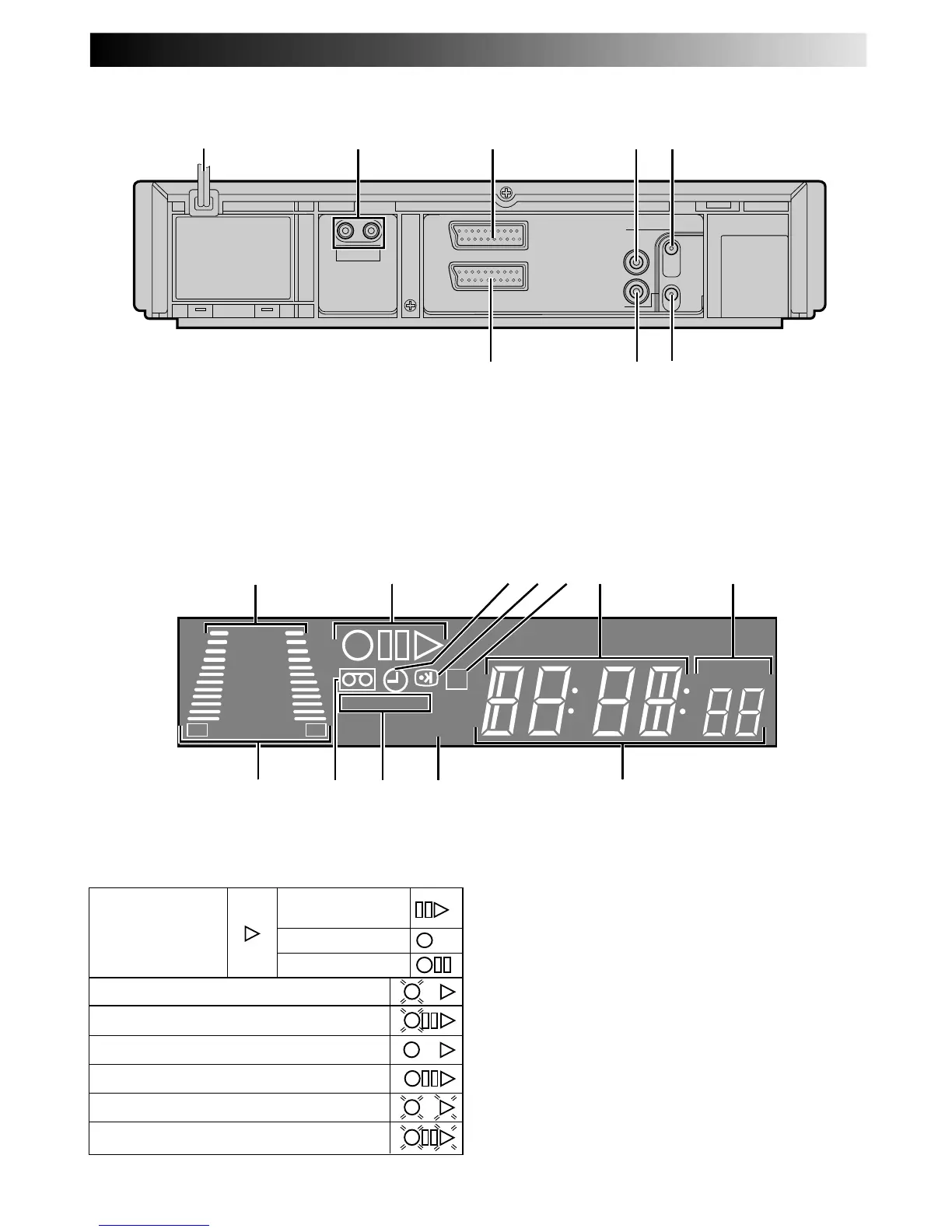

JVC HR-DD949EE - Display Panel; Rear View

EN 49
REAR VIEW
5 ANT. IN Connector Z pg. 3
6 AV2 IN Connector Z pg. 32
7 Remote PAUSE Connector Z pg. 34
8 RF OUT Connector Z pg. 3
1 Mains Power Cord Z pg. 3
2 AUDIO OUT(L/R) Connectors Z pg. 3
3 AV1 IN/OUT Connector Z pg. 3, 32
4 J Terminal [JLIP(Joint Level Interface Protocol)
Connector] Z pg. 38
AV1 IN/OUT
AV2 IN
RF OUT
ANT. IN
RL
AUDIO OUT
PAUSE
JLIP
5432
6 7
8
1
DISPLAY PANEL
+8
4
0
6
10
–20dB
NORM
L
R
M
SP LP EP
REMAIN
REVIEW
3
4 5
1
8 @
9
0
!
6
7
2
1 B.E.S.T. Picture System Display Z pg. 20
Audio Level Indicator
2 Symbolic Mode Indicators
3 "Timer" Indicator Z pg. 25, 27
4 VPS Indicator Z pg. 29
5 Counter Memory Indicator Z pg. 15
6 Channel*/Mode Display Z pg. 10
*Channel position 1 will be displayed as "CH 1".
Clock Display Z pg. 8
7 Instant REVIEW Indicator Z pg. 13
8 Audio Mode Indicator Z pg. 14
9 "Cassette Loaded" Mark
0 Tape Speed Indicators Z pg. 18
! Tape Remaining Time Indicator Z pg. 19
@ Counter/Remain Display Z pg. 19
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
AUDIO DUBBING:
AUDIO DUBBING PAUSE:
INSERT:
INSERT PAUSE:
AUDIO DUBBING INSERT:
AUDIO DUBBING INSERT PAUSE:
