Using the Deck as a Media Converter

This section explains how to connect other studio equipment

to the deck and feed the signal to and from that equipment into

or out of a computer connected to the deck.

Remove all mini-DV cassettes before proceeding.

NOTE: To change the channel, turn the jog/shuttle wheel.

However, if a tape is in the deck, stop the tape, press the

jog/shuttle wheel once, and now you can change the chan-

nel. Turning the wheel left will channel down and turning the

wheel right will channel up.

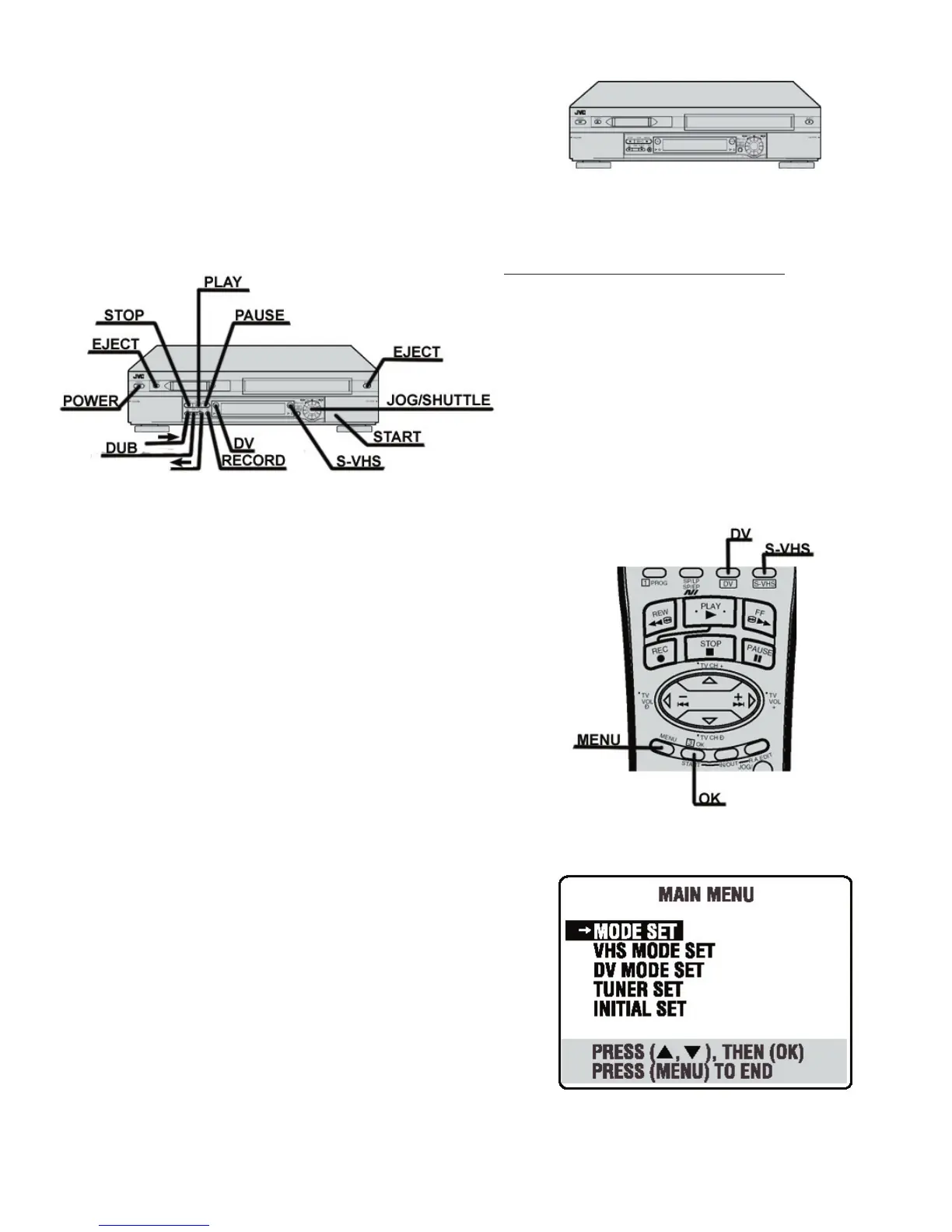

USING THE INPUT JACKS ON THE FRONT OF THE DECK (F-1):

1. Using the channel wheel, as mentioned in the above note, channel

down below CH 2 until the readout on the front window displays F-1.

2. The default input of this VCR is “VIDEO.” In this mode, the yellow

input jack on the front is expecting a signal.

3. If you are connecting a composite source, skip to step 4. If you are

connecting an S-VHS source, use your remote to do the following:

a. Press MENU.

b. Using the up or down arrow, move the highlight bar to

“VHS MODE SET” and select it with the OK button.

c. Move the highlight bar to “FRONT AUX INPUT” and then

press OK to set “S-VIDEO.”

d. Press MENU when done to exit out of the menu.

4. Open your editing program.

5. The signal from your other studio equipment which is feeding the

front input jack on the front of the deck should now appear in your

capture window as well as on the monitor on the deck.

NOTE: If you can see the input on your monitor, but not in your cap-

ture, try restarting the editing program or unplugging your ﬁ rewire and

plugging it back in.
