Filename [HRJ670EU2.fm]
Masterpage:Right
EN
35
Connecting/Using A Stereo System
(HR-J670/671/672/673/674EU only)
These instructions enable you to connect your video recorder to your Hi-Fi stereo system (if you have one) and listen to
the soundtrack through the stereo.

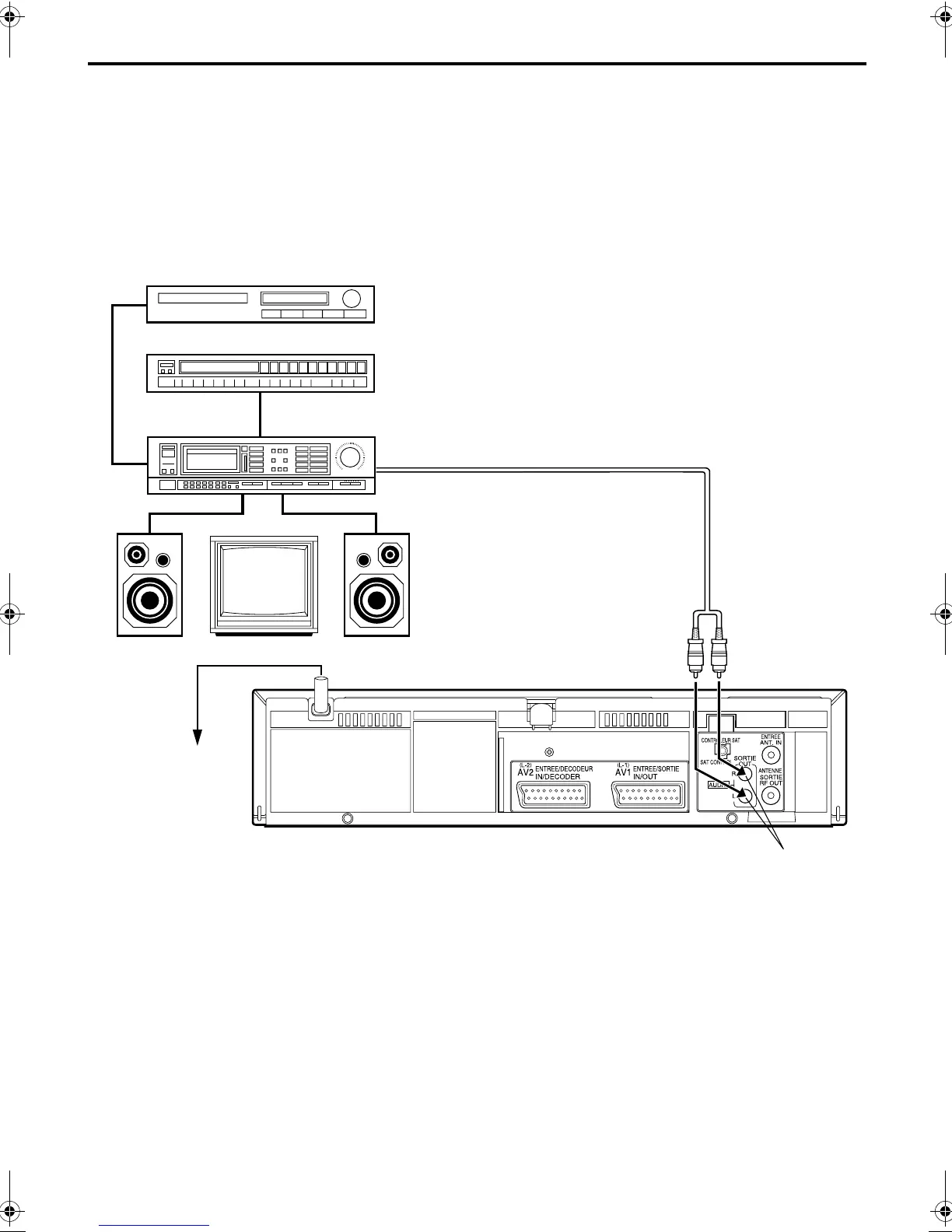

Make connections.
Connect the AUDIO OUT L and R connectors on your
video recorder to the AUX IN or TAPE MONITOR
connectors on your stereo system’s receiver or amplifier.
NOTE:
When listening to sound through the connected stereo system,
turn the TV’s volume down completely.
CAUTIONS:
This recorder has a dynamic range of more than 80 dB with
regards to its Hi-Fi audio capability. It is recommended that
you check the maximum level if you are going to listen to the
Hi-Fi audio signals through a stereo amplifier. A sudden surge
in the input level to the speakers may damage them.
Some speakers and televisions are specially shielded to
prevent television interference. If both are of the non-shielded
type, do not place the speakers adjacent to the TV set as this
can adversely affect the video playback picture.
FM tuner
CD player
Stereo amplifier
AUX IN or TAPE MONITOR
Audio cable
(not provided)
Speaker Television Speaker
Mains outlet
Back of recorder
AUDIO OUT
HRJ670EU2.fm Page 35 Tuesday, May 9, 2000 2:35 PM
