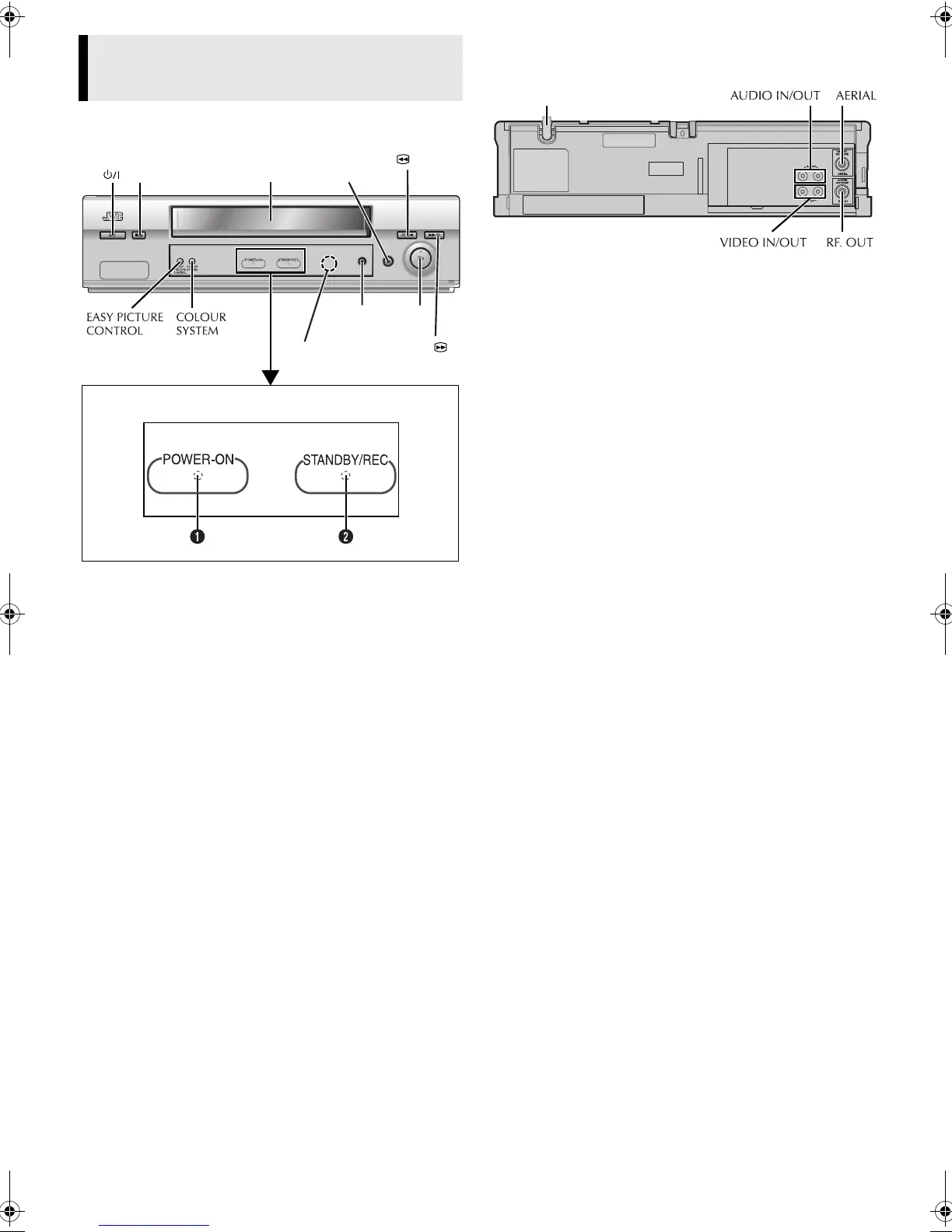

Front Panel
A Power Indicator
B Standby/Record Indicator*
* Standby/Record Indicator lights when the player is in standby mode
or during recording.
Rear Panel
Buttons, Connectors and
Indicators
Cassette
loading slot
Display panel
Infrared beam
receiving window
Pause
9
Play
4
Stop/Eject
0
Record
7
Rewind
3
Fast
Forward
5
Mains power cord
