(No.MB556)1-13
3.1.10 Removing the jog LED board, volume LED board and USB LED board
(See Fig.18)
Remove the top cabinet, the rear cabinet, the AMP board, the
5DVD mechanism assembly, the front cabinet assembly, the
front VFD board and the front key board.
(1) From the front side of the front key board, release the ten
claws j and remove the jog LED board, the volume LED
board and the USB LED board from the front key board.
(2) Disconnect the wires from the connectors FW202
, FW203,
FW204
of the front key board.
(3) Take out the jog LED board, volume LED board and USB
LED board from the front key board.

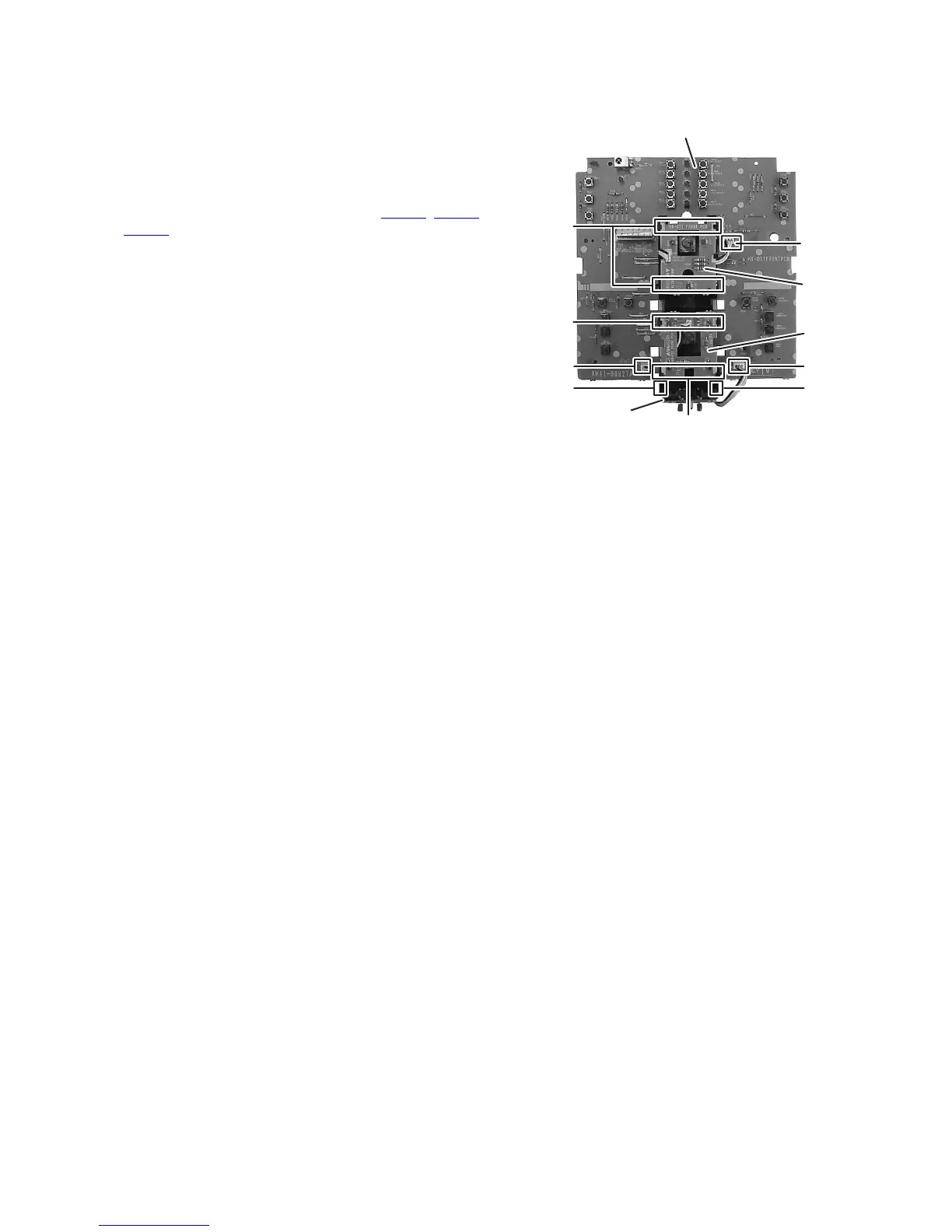

Fig.18
FW204
j
j
j
j
j
Front key board
Volume LED
board
Jog LED
board
USB LED board
FW202 FW203
