JVC HX-GX7 Service Manual

1-10 (No.MB161)
3.1.4 Removing the rear panel
(See Figs.10 to 12)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the top side of the main body, disconnect the wire
from the connector CN202
on the bridge board. (See
Fig.10.)
(2) From the back side of the main body, remove the screw F
and two screws G attaching the rear cover. (See Fig.11.)
(3) Release the sections d and remove the rear cover. (See
Fig.11.)
(4) Remove the screw H and eleven screws J attaching the
rear panel. (See Fig.12.)
(5) From the both sides of the main body, release the joints e
attaching the rear panel to the chassis base and remove
the rear panel with the fan. (See Fig.12.)
3.1.5 Removing the fan
(See Figs.10 to 12)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the top side of the main body, disconnect the wire
from the connector CN202
on the bridge board. (See
Fig.10.)
(2) From the back side of the main body, remove the screw F
and two screws G attaching the rear cover. (See Fig.11.)
(3) Remove the two screws K attaching the fan. (See Fig.12.)
(4) Take out the fan from the main body.

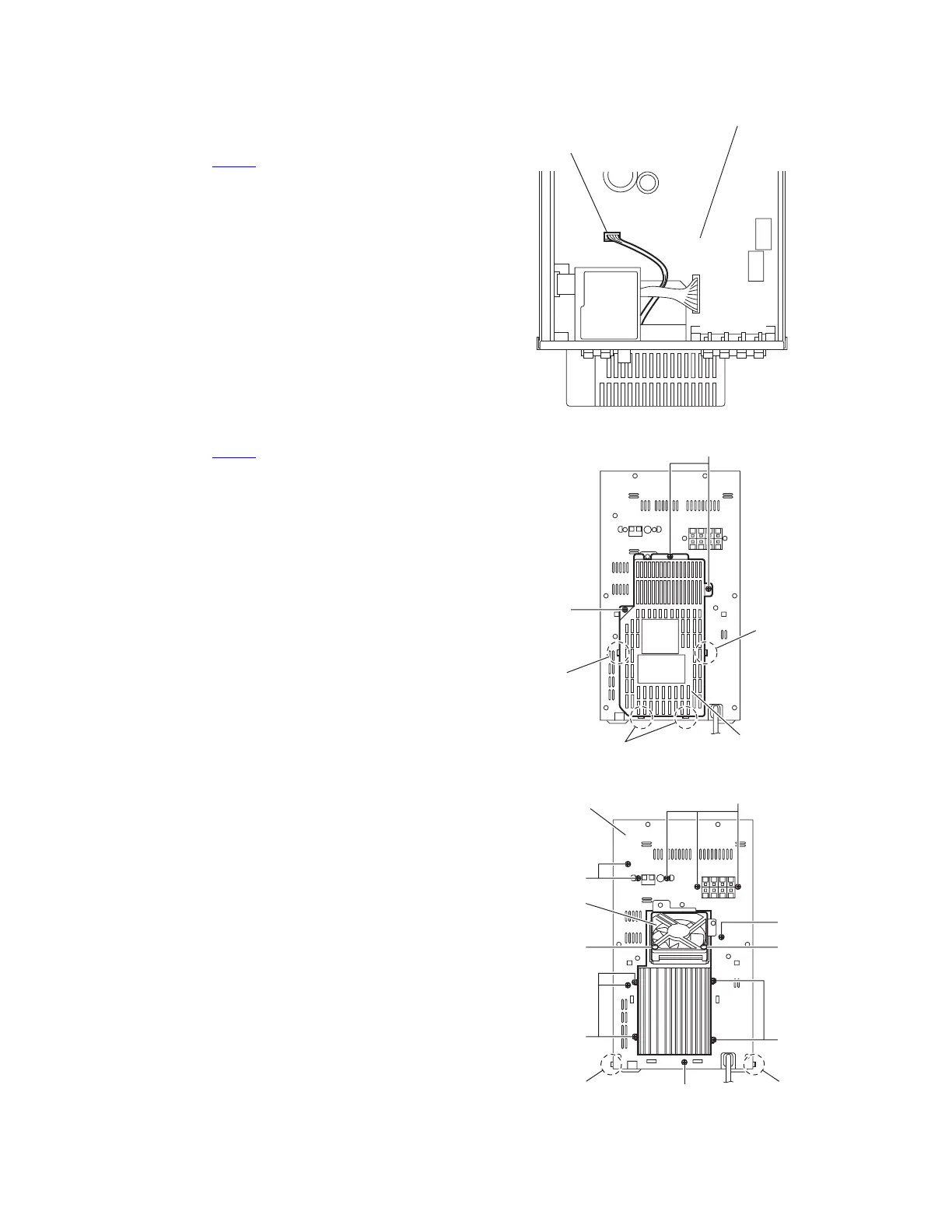

Fig.10
Fig.11
Fig.12
Bridge board
CN202
Rear cove
r
d
d
d
F
G
Rear panel
Fan
ee
J
J
J
J
J
HK
K
