JVC HX-GX7 Service Manual

(No.MB161)1-9
3.1.3 Removing the tuner
(See Figs.8 and 9.)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the right side of the main body, disconnect the card
wire from the connector CN560
on the main board. (See
Fig.8.)
(2) From the back side of the main body, remove the two
screws E attaching the tuner to the rear panel. (See Fig.9.)

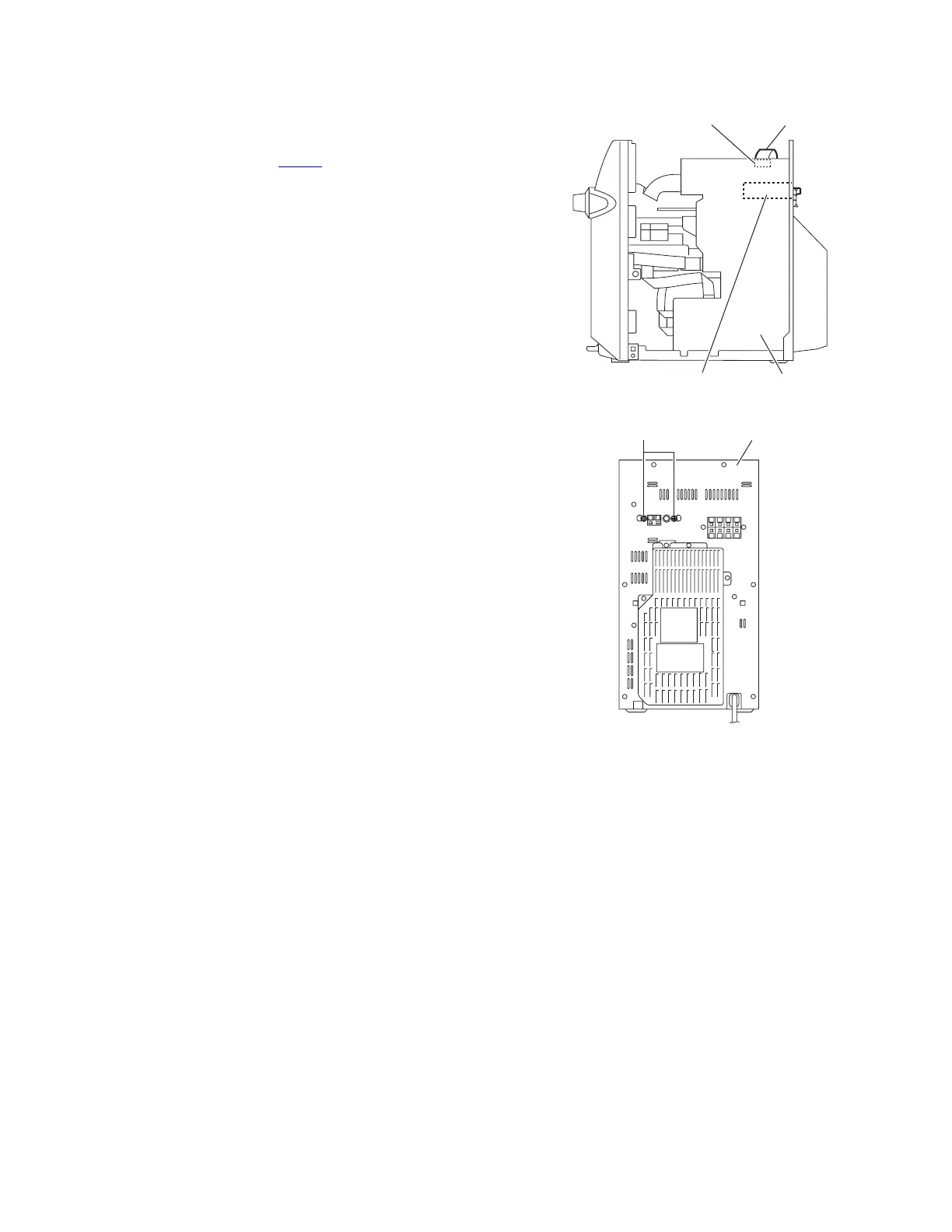

Fig.8
Fig.9
Card wires
Tuner Main board
CN560
Rear panel
E
