(No.MB043)1-13
3.1.9 Removing the power transformer assembly
(See Fig 24, 25)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly, the rear panel,
the main board and the bridge board / regulator board.
(1) Remove the screw N attaching the primary board.
(2) Disconnect the wire from connector CN231
on the primary
board.
(3) Remove the four screws O attaching the power
transformer assembly.
(4) Detach the cord stopper from the base chassis upward.
REFERENCE:
When disconnecting the power cord from connector CN250
on
the primary board, remove the fixing band.

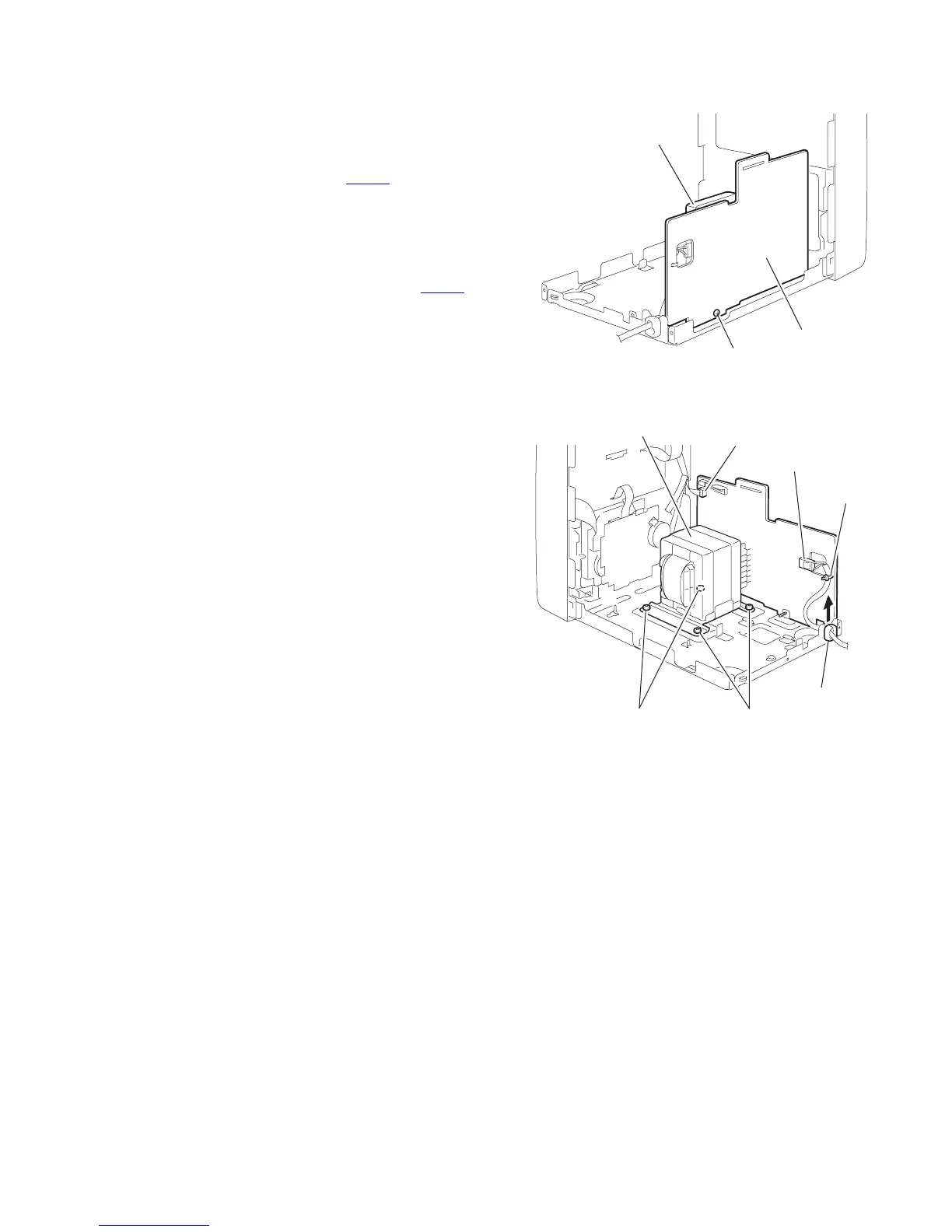

Fig.24
Fig.25
Power transformer
assembly
Primary board
N
Primary board
CN231
CN250
Cord stopper
FIxing band
Power transformer
assembly
O O
To Next Page
