JVC HX-Z30 Service Manual

1-14 (No.MB043)

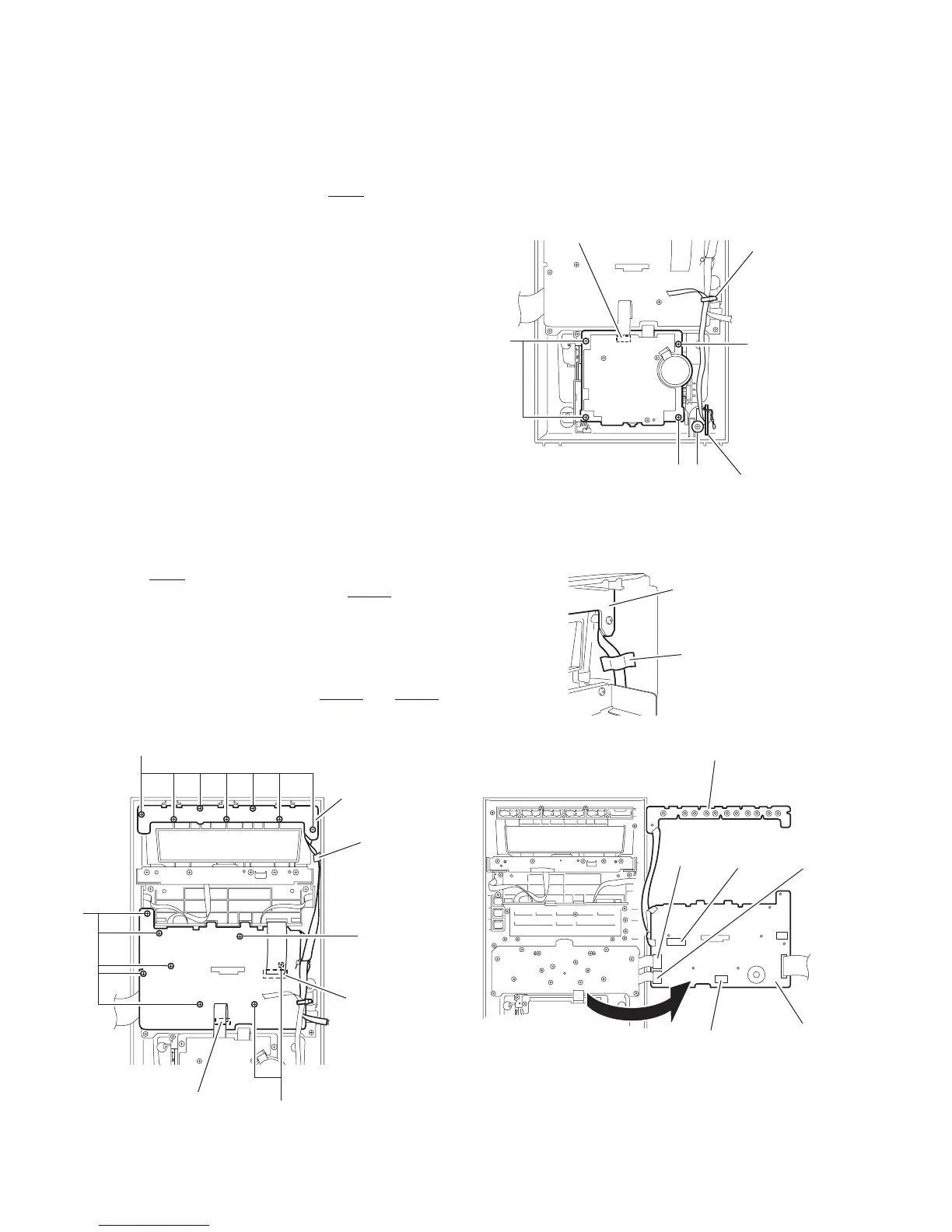

3.2 Front panel assembly
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly and the front
panel assembly.
3.2.1 Removing the cassette mechanism assembly
(See Fig.26)
(1) Disconnect the card wire from connector CN33
on the head
amplifier & mechanism control board.
(2) Remove the two screws P, and the two screws Q
attaching the cassette mechanism assembly.
3.2.2 Removing the headphone board (See Fig.26)
(1) Remove the screw R and pull out the headphone board
backward.
(2) Cut off the band.
Fig.26
3.2.3 Rmoving the switch / micon board
(See Fig.27~29)
• Prior to performing the following procedure, disconnect the
card wire from CN43
on the micon board.
(1) Disconnect the card wire from connector CN840 on the
micon board.
(2) Remove the fifteen screws S attaching the switch / micon
board.
(3) Remove the spacer fixing the wire.
(4) Move the switch /micon board in the direction of the arrow
to disconnect the wire from connector CN880
and CN900
on the micon board.
Fig.27
Fig.28
Fig.29
Head amplifier &
mechanism control board
CN33
Headphone board
P
Q
QR
Band
S
S
S
S
CN43
Micon board
CN840
Switch board
Spacer
Spacer
Switch board
CN880
Switch board
CN900
Micon board
CN43
CN840
