3.2.4 Removing the FL board assembly
(See Fig.30, 31)
• Prior to performing the following procedure, remove the switch
/ micon board.
(1) Remove the five screws T attaching the stay bracket (1).
(2) Remove the three screws U attaching the FL board
assembly.

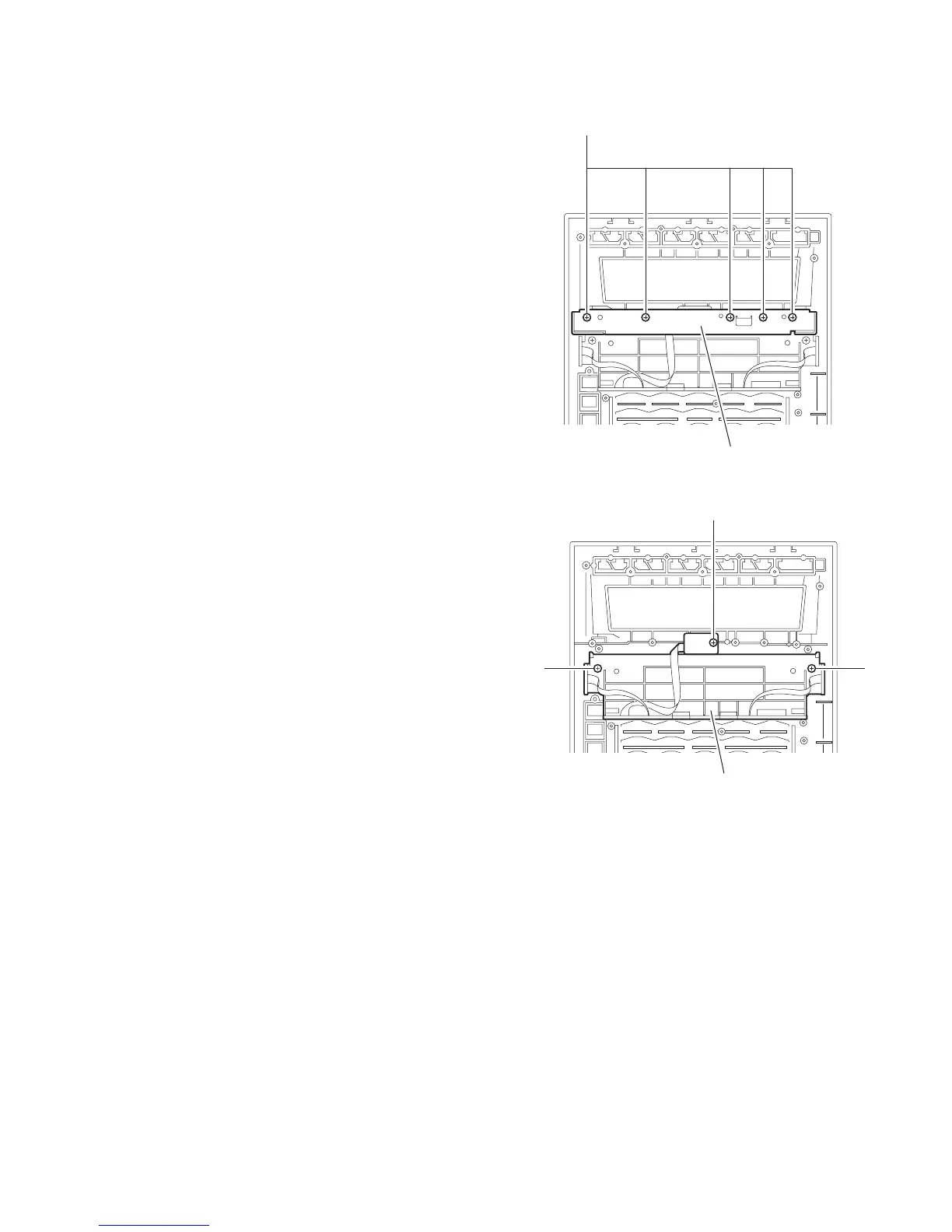

Fig.30
Fig.31
T
Stay bracket (1)
U
UU
FL board assembly
