JVC HX-Z30 Service Manual

1-16 (No.MB043)

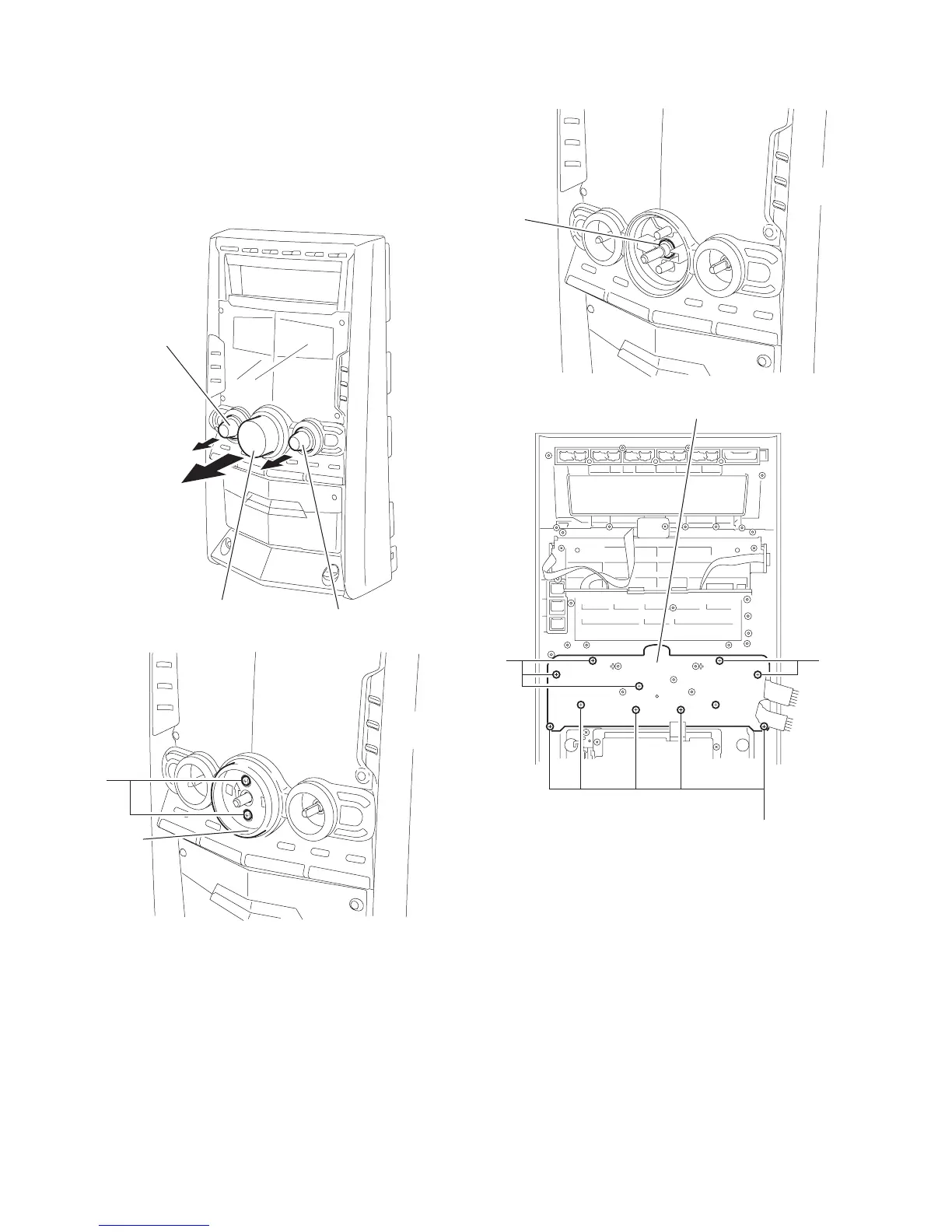

3.2.5 Removing the button board
(See Fig.32~35)
• Prior to performing the following procedure, remove the switch
/micon board.
(1) Pull out the preset knob, the volume knob and the sound
mode knob.
(2) Remove the two screws V attaching the knob holder.
Remove the nut from the front panel.
(3) Remove the eleven screws W attaching the button board.
Fig.32
Fig.33
Fig.34
Fig.35
Preset knob
Volume knob
Sound mode knob
V
Knob holder
Nut
W
W
W
Volume baord
