JVC HX-Z30 - Troubleshooting

1-34 (No.MB043)
3.5.3 Removing the Front panel
(See Fig.3,4)
• Prior to performing the following procedure, remove the side
cover.
CAUTION:
When removing the front panel from the body, do not break or
damage them that are glued at the joint a (See Fig.3).
(1) Remove the four screws C attaching the front panel.
(2) Release the four joints a.
(3) Disconnect the yellow and black wires from the two
terminals on the tweeder on the back of the front panel.
3.5.4 Removing the tweeter
(See Fig.4)
• Prior to performing the following procedure, remove the side
cover and the front panel.
(1) Remove the two screws D attaching the tweeter on the
back of the front panel.

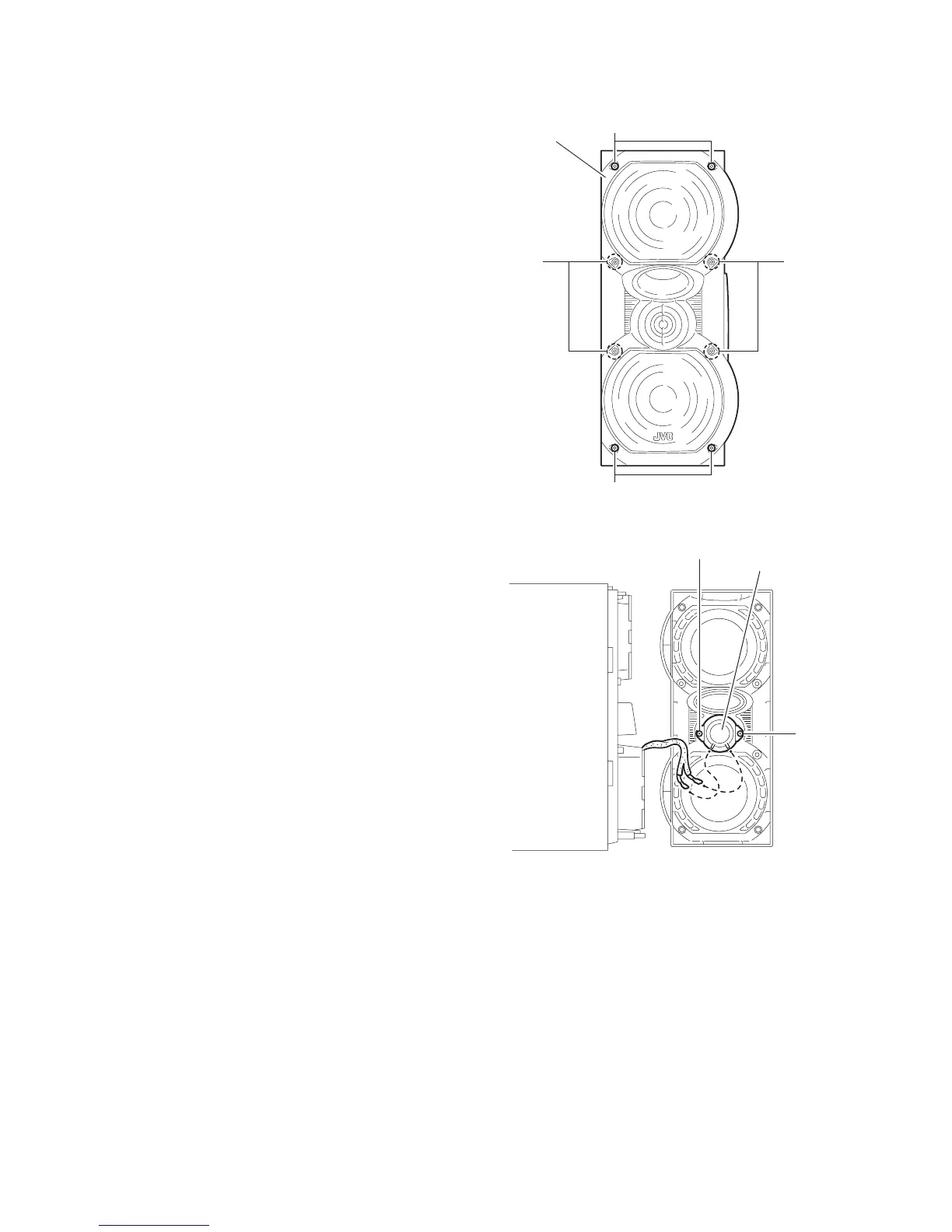

Fig.3
Fig.4
Joint a
Front cover
Joint a
C
C
D
D
Tweeter
