JVC HX-Z30 Service Manual

3-5

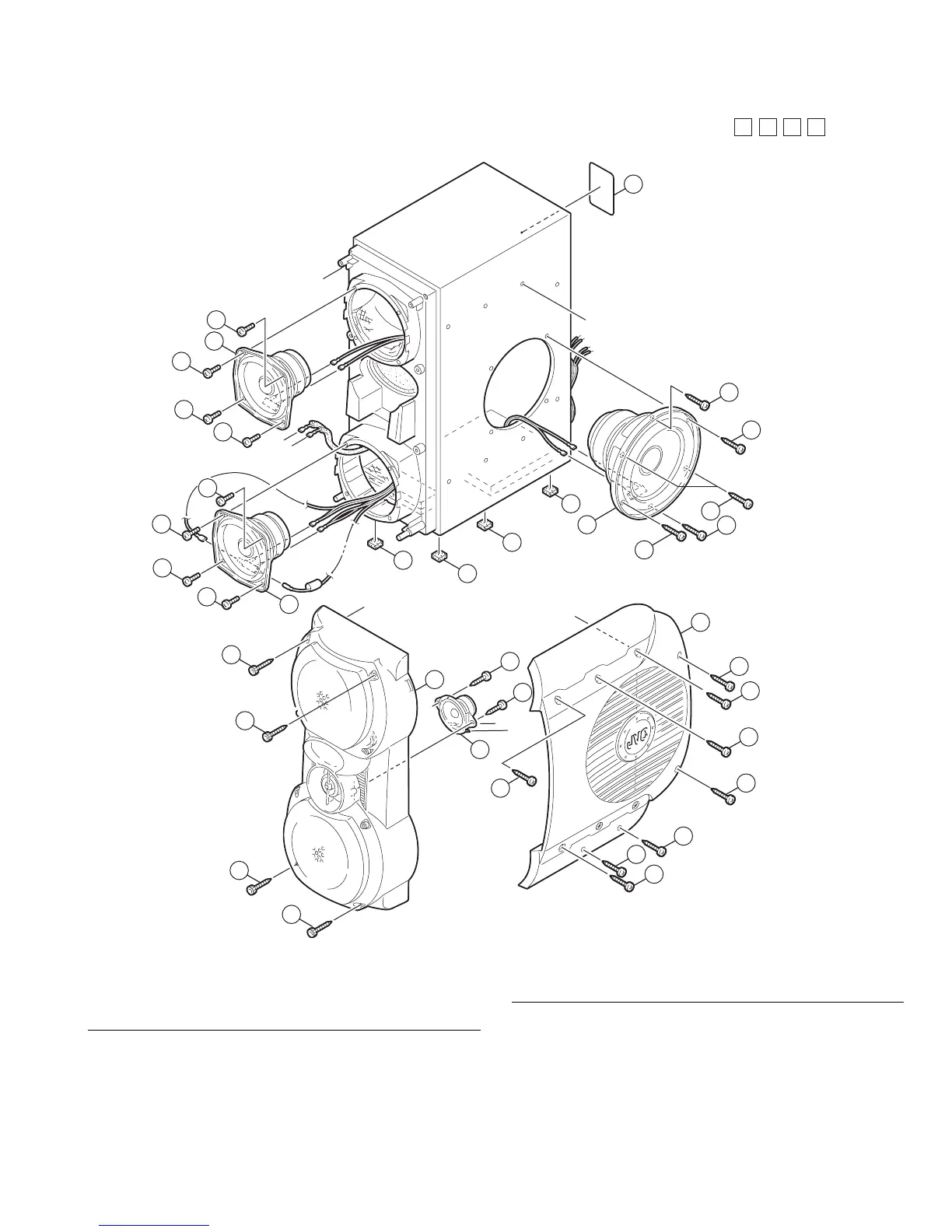

Speaker assembly and parts list
Speaker
Block No. [M][2][M][M]
Block No.
M
M
M
2
B
a
b
B
A
a
b
A
12
9
9
9
9
9
5
2
7
9
9
9
9
7
7
7
8
8
6
1
10
10
10
10
8
8
8
8
4
11
11
11
11
8
8
8
8
3
 Symbol No. Part No. Part Name Description Local
1 J200-XZ300LS-90 F.PANEL ASSY(L)
1 J200-XZ300RS-90 F.PANEL ASSY(R)
2 J221-XZ300LS-20 S.PANEL ASSY(L)
2 J221-XZ300RS-20 S.PANEL ASSY(R)
3 300-J0XZ301300 WF TOP (x2)
4 300-J1XZ301300 WF BOTTOM (x2)
5 300-J0XZ302000 SUB WOOFER (x2)
6 302-J0HXZ30500 TWEETER (x2)
7 411-B74545AB1 SCREW 4.5/45 (x8)
8 411-B840120P1 SCREW (x20)
9 411-B84020AB1 SCREW (x20)
10 411-N54020AB1 SCREW (x8)
11 441-802103-00 LEG CUSHION (x8)
12 600-LXZ30J-00 SPEC LABEL-L
12 600-RXZ30J-00 SPEC LABEL-R
 Symbol No. Part No. Part Name Description Local
