1-10 (No.MB043)

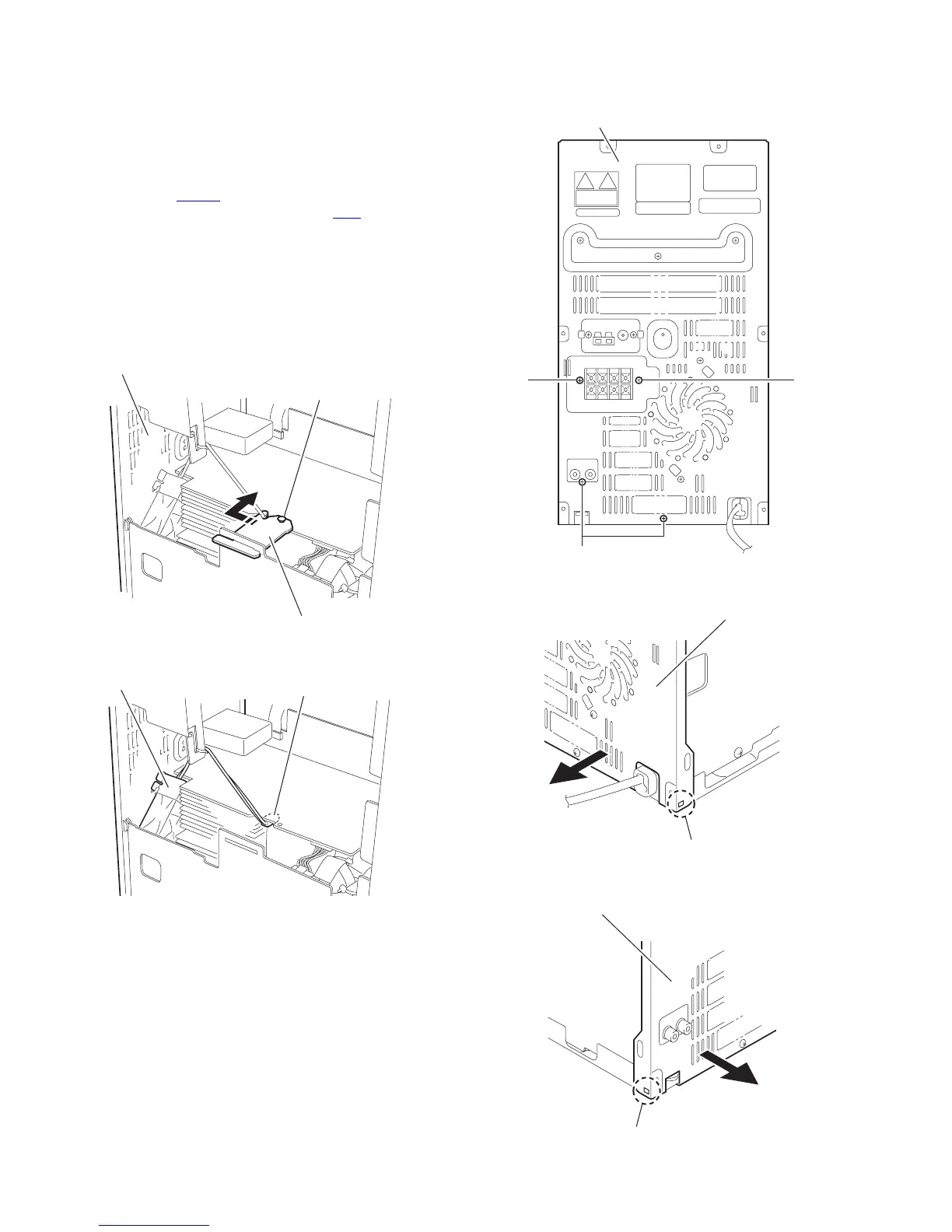

3.1.5 Removing the rear panel
(See Fig.10, 12~16)
• Prior to performing the following procedure, remove the metal
cover and the CD changer mechanism assembly.
(1) Remove holding board by remove a plastic rivet and then
slide out the holding board as shown in fig. 12.
(2) Disconnect the fan wire extending from the fan assembly
from connector CN206
on the bridge board.
(3) Disconnect the card wire from connector CN1
on the tuner
pack.
(4) Remove four screws F from rear panel.
(5) Release joints b which on right bottom and left bottom of
rear panel. The joint can be release by pull outward the
side of rear panel.
REFERENCE:
Fan assembly and tuner pack will come off with rear panel.
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Plastic rivet
Holding board
Rear panel
Fan assembly
Bridge board
CN206
FF
F
Rear panel
Rear panel
b
Rear panel
b
