JVC HX-Z30 Service Manual

(No.MB043)1-9
3.1.4 Removing the tuner pack assembly
(See Fig.10, 11)
• Prior to performing the following procedure, remove the metal
cover and the CD changer mechanism assembly.
(1) Disconnect the card wire from connector CN1
on the tuner
pack assembly on the right side of the body.
(2) Remove the two screws E on the rear panel on the back of
the body.

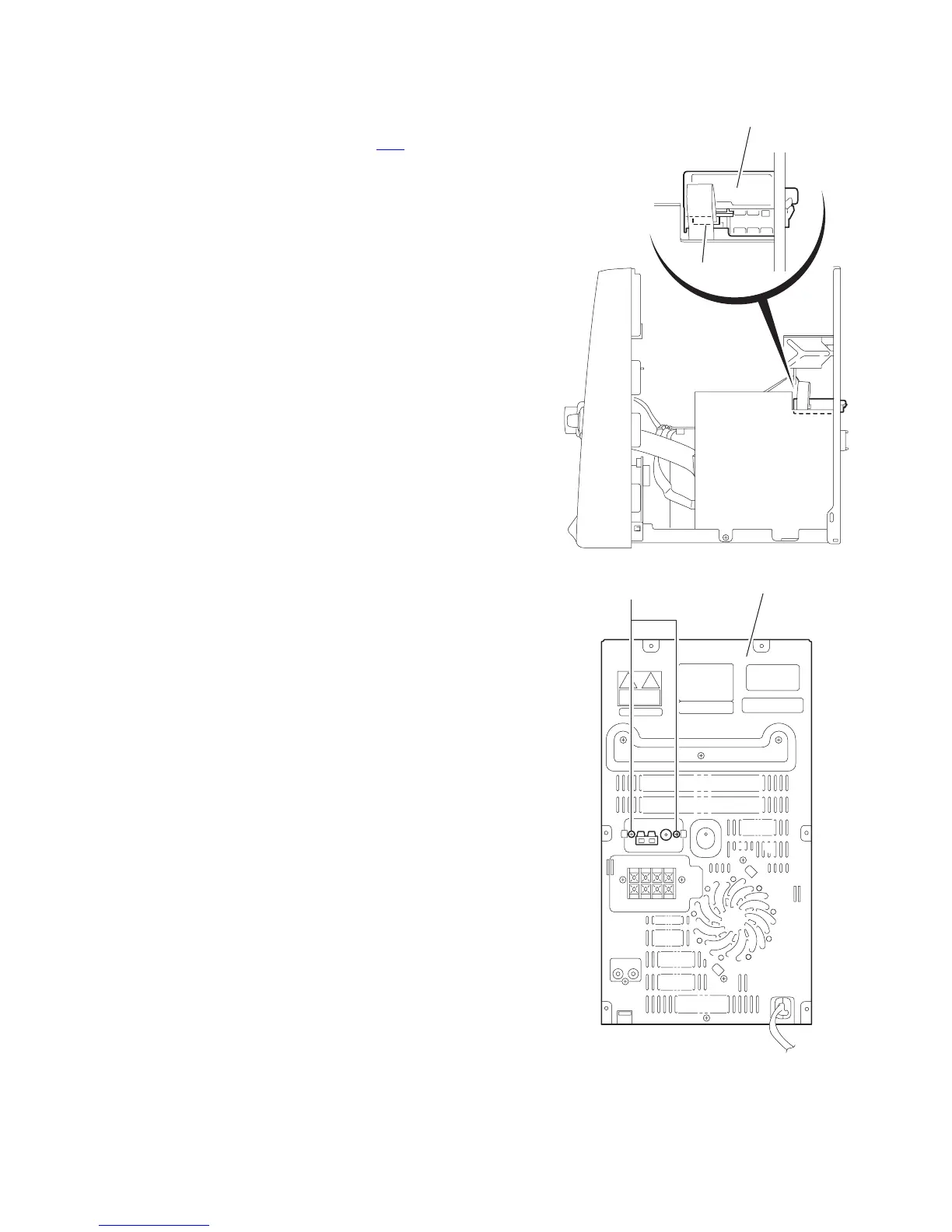

Fig.10
Fig.11
Tuner pack assembly
CN1
E
Rear panel
