JVC JA-S31 - Page 12

JA-S31
No. 2368

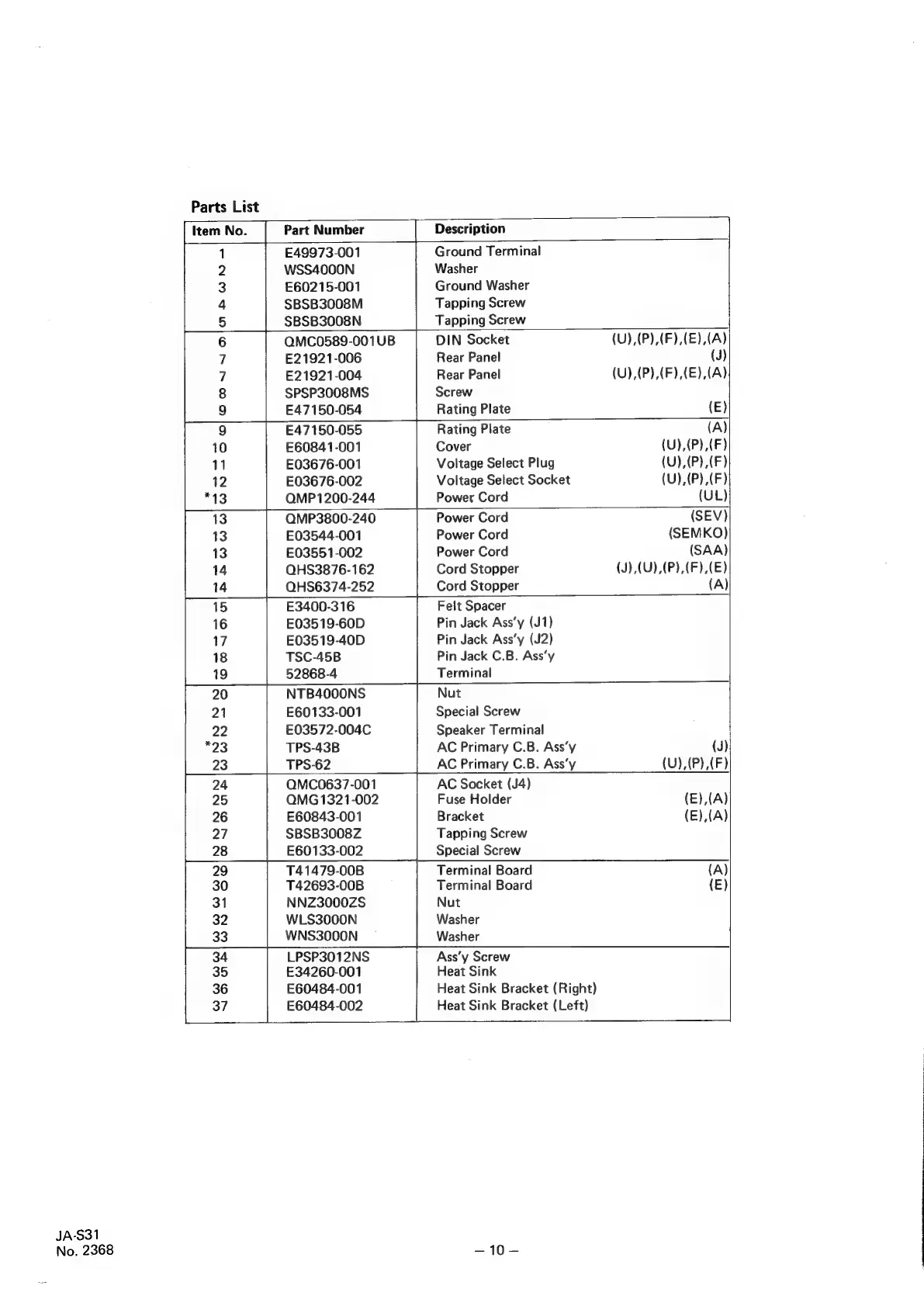

Parts List
Item No. Part Number Description
1 E49973-001 Ground Terminal
2 WSS4000N Washer
3
£60215-001
Ground
Washer
4 SBSB3008M Tapping Screw
5 SBSB3008N Tapping Screw
6
QMC0589-001UB
DIN
Socket
(U),(P),(F),(E),(A)
7 E21921-006 Rear Panel
7 E21921-004 Rear Panel (U),(P),(F),(E),(A)
8 SPSP3008MS Screw
9
E47150-054
Rating
Plate
(E)
E47150-055
Rating
Plate
(A)
10 E60841-001 Cover (U),(P),(F)
11
E03676-001
Voltage
Select
Plug
(U),(P),(F)
12
E03676-002
Voltage
Select
Socket
(U),(P),(F)
*13
QMP
1200-244
Power
Cord
(UL)
13
QMP3800-240
Power
Cord
(SEV)
13 E03544-001 Power Cord (SEMKO)
13 E03551-002 Power Cord (SAA)
14 QHS3876-162 Cord Stopper (J},(U),(P),(F),(E)
QHS6374-252 Cord Stopper (A)
E3400-316
16 E03519-60D
17 E03519-40D
18 TSC-45B
52868-4
NTB4000NS
21 E60133-001
22 £03572-004C
*23 TPS-43B
TPS-62
Felt Spacer
Pin Jack Ass’y (J1)}
Pin Jack Ass’y (J2)
Pin Jack C.B. Ass’y
Terminal
Nut
Special Screw
Speaker Terminal
AC Primary C.B. Ass‘y
AC Primary C.B. Ass‘y
QMC0637-001
25 QMG1321-002
26 E60843-001
27 SBSB3008Z
E60133-002
T41479-00B
30 T42693-00B
31 NNZ3000ZS
32 WLS3000N
33 WNS3000N
LPSP3012NS
35 E34260-001
36 E60484-001
37 | E60484-002
AC Socket (J4)
Fuse Holder
Bracket
Tapping Screw
Special Screw
Terminal Board
Terminal Board
Nut
Washer
Washer
Ass’y Screw
Heat Sink
Heat Sink Bracket (Right)
Heat Sink Bracket (Left)
