JVC JA-S31 - Page 9

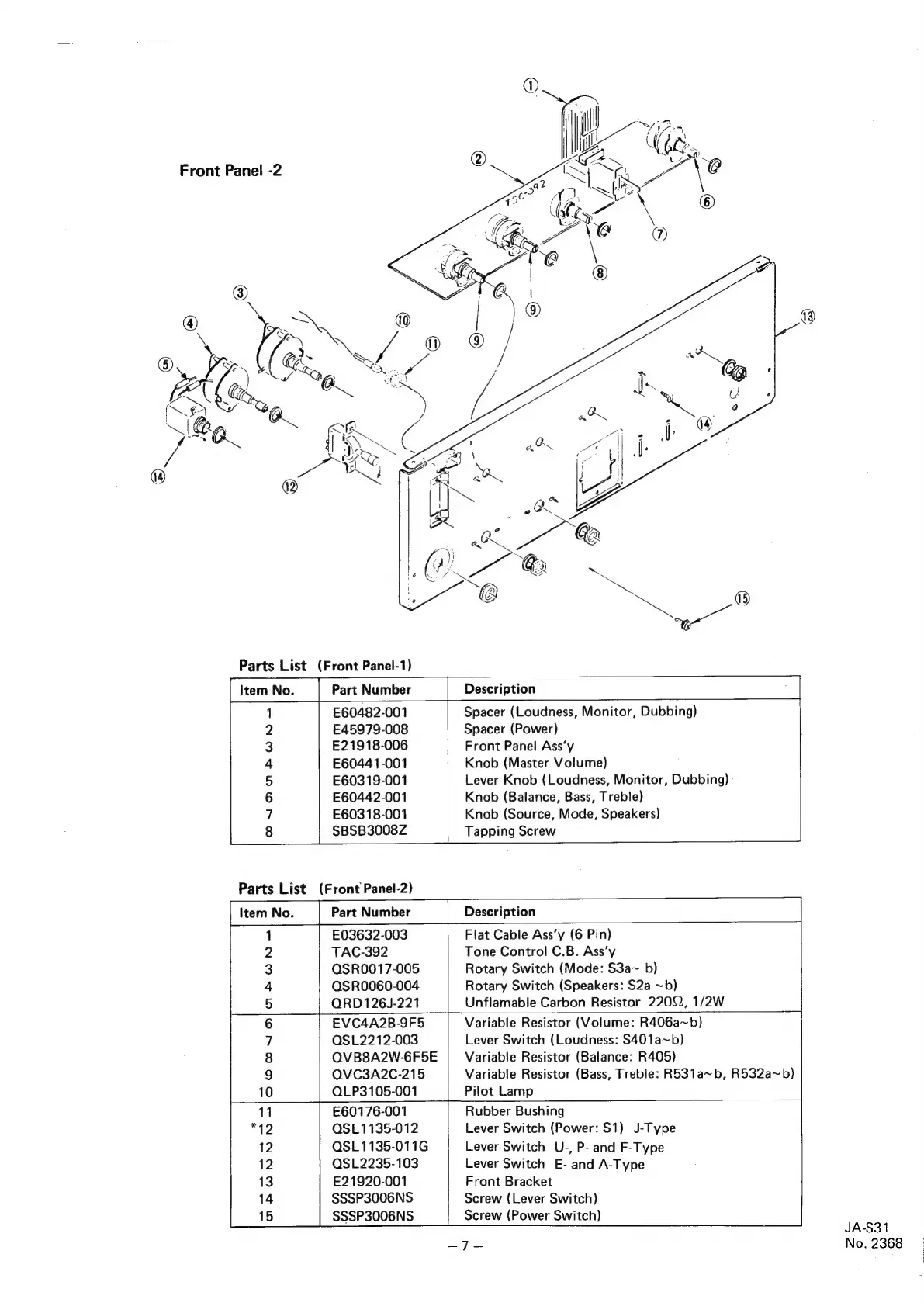

Front Panel -2
Parts List
Item N
pce
10.
(Front Panel-1)}
Part Number
E60482-001
E45979-008
E21918-006
E60441-001
E60319-001
E60442-001
E60318-001
SBSB3008Z
Description
Spacer (Loudness, Monitor, Dubbing)
Spacer (Power)
Front Panel Ass‘’y
Knob (Master Volume)
Lever Knob (Loudness, Monitor, Dubbing)
Knob (Balance, Bass, Treble)
Knob (Source, Mode, Speakers)
Tapping Screw
Parts List (Front Panel-2)
| Item No. Part Number Description
1 E03632-003 Flat Cable Ass’y (6 Pin)
2 TAC-392 Tone Control! C.B. Ass’y
3 QSR0017-005 Rotary Switch (Mode: S3a~ b)
4 QSRO0060-004 Rotary Switch (Speakers: S2a ~b)
5 QRD126J-221 Unflamable Carbon Resistor 2202, 1/2W
6 EVC4A2B-9F5 Variable Resistor (Volume: R406a~b)
7 QSL2212-003 Lever Switch (Loudness: $401a~b)
8 OQVB8A2W-6F5E Variable Resistor (Balance: R405)
9 QVC3A2C-215 Variable Resistor (Bass, Treble: R531a~b, R532a~b)
QLP3105-001 Pilot Lamp
E60176-001
QSL1135-012
QSL1135-011G
QSL2235-103
E21920-001
SSSP3006NS
SSSP3006NS
Rubber Bushing
Lever Switch (Power: S1) J-Type
Lever Switch U-, P- and F-Type
Lever Switch E- and A-Type
Front Bracket
Screw (Lever Switch)
Screw (Power Switch)
JA-S$31
No. 2368
