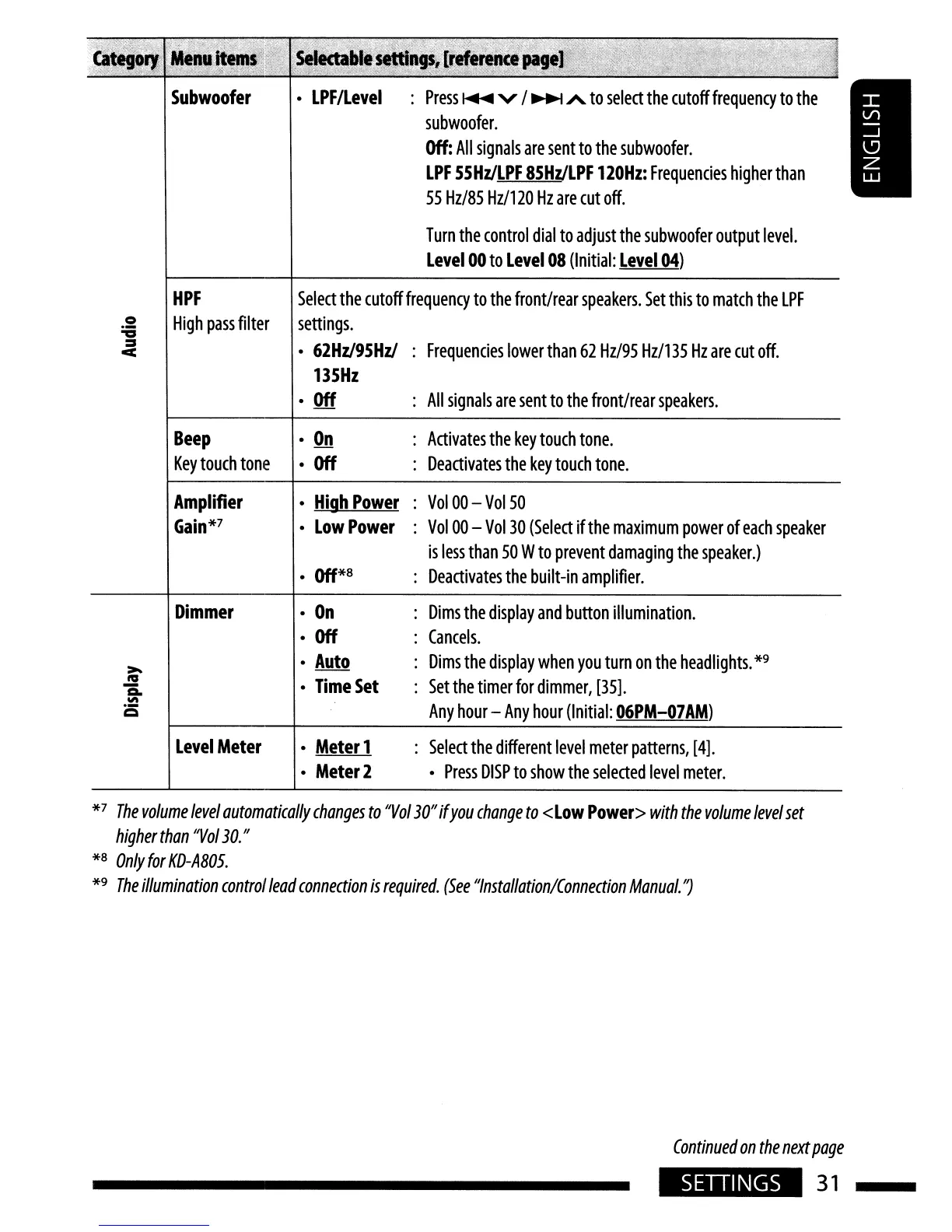

Subwoofer
• LPF/Level
Press ~ v / ~ At. to select the cutoff frequency to the
subwoofer.
Off: All signals are sent to the subwoofer.
LPF S5HzlLPF 85HzlLPF 120Hz: Frequencies higher than
55 Hz/85 Hz/120 Hz are cut off.
Turn the control dial to adjust the subwoofer output level.
Level 00 to Level 08 (Initial: Level 04)
HPF
Select the cutoff frequency to the front/rear speakers. Set this to match the LPF
0
High pass filter settings.
:s
::::lI
• 62Hzl95HzI
Frequencies lower than 62 Hz/95 Hz/135 Hz are cut off.
ce
135Hz
• Off
All signals are sent to the front/rear speakers.
Beep
• On
Activates the key touch tone.
Key touch tone
• Off
Deactivates the key touch tone .
Amplifier
• High Power
: Vol 00 - Vol 50
Gain*7
• LowPower
: Vol 00 - Vol 30 (Select if the maximum power of each speaker
is less than 50 W to prevent damaging the speaker.)
• Off*8
Deactivates the built-in amplifier.
Dimmer
• On
Dims the display and button illumination.
• Off
Cancels.
>-
• Auto
Dims the display when you turn on the headlights. *9
IV
• TimeSet
Set the timer for dimmer, [35].
a.
VI
Q
Any hour - Any hour (Initial: 06PM-07AM)
Level Meter
• Meter1
Select the different level meter patterns, [4].
• Meter2
• Press DISP to show the selected level meter.
*7 The volume level automatically changes to "Vol 30" if you change to <Low Power> with the volume level set
higher than 'Vol 30. "
*8 Only for KD-A805.
*9 The illumination control lead connection is required. (See "Installation/Connection Manual. I')
