3.1.4 Removing the Main board assembly

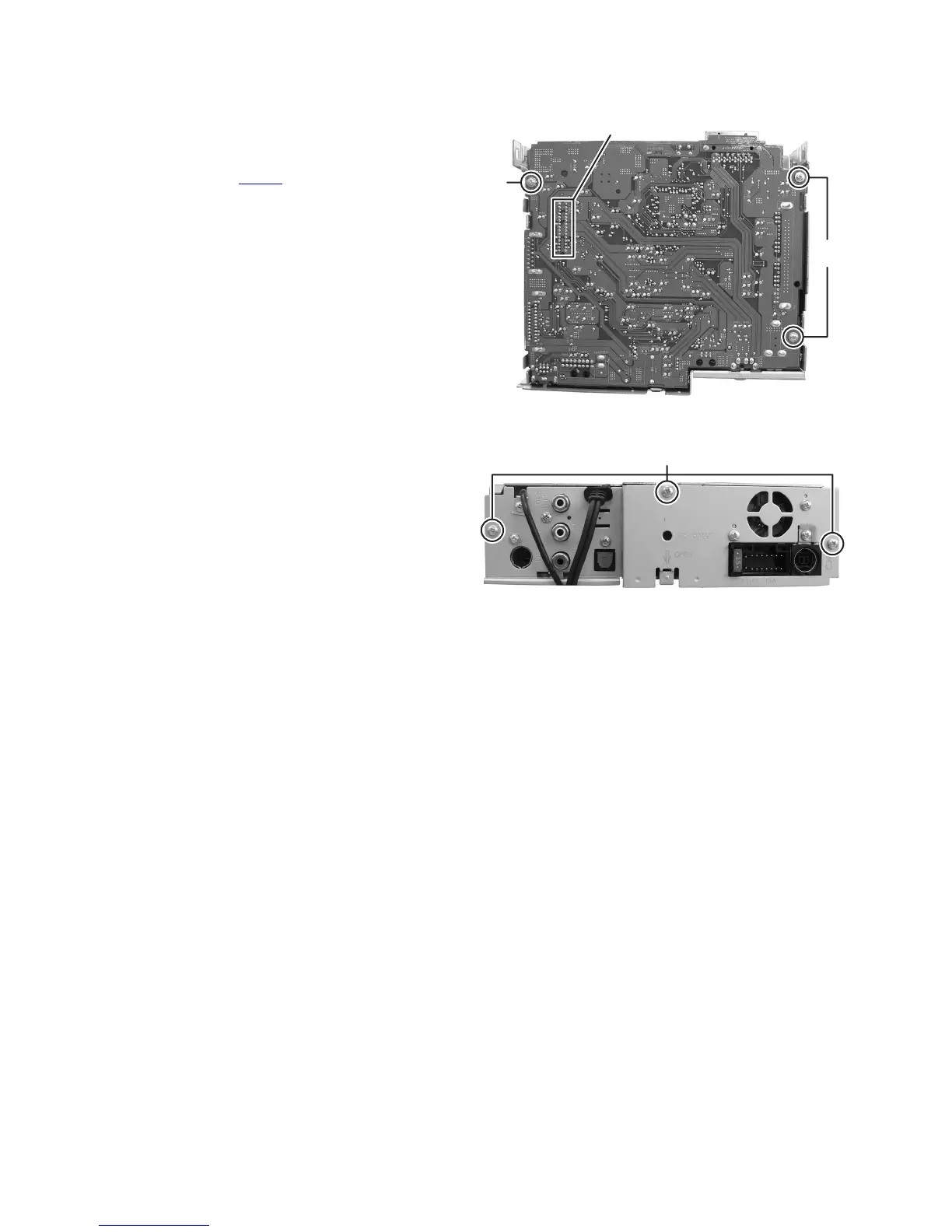

(See Fig.4 and 5)
(1) Remove the three screws D attaching the Main board as-
sembly. (See Fig.4)
(2) Remove the three screws E attaching Rear bracket. (See
Fig.5)
(3) Disconnect the connector CN961
connected to DVD mech-
anism assembly. (See Fig.4)
Fig.4
Fig.5
D
D
CN961
E
