JVC KD-ADV5380J

1-24 (No.MA308)

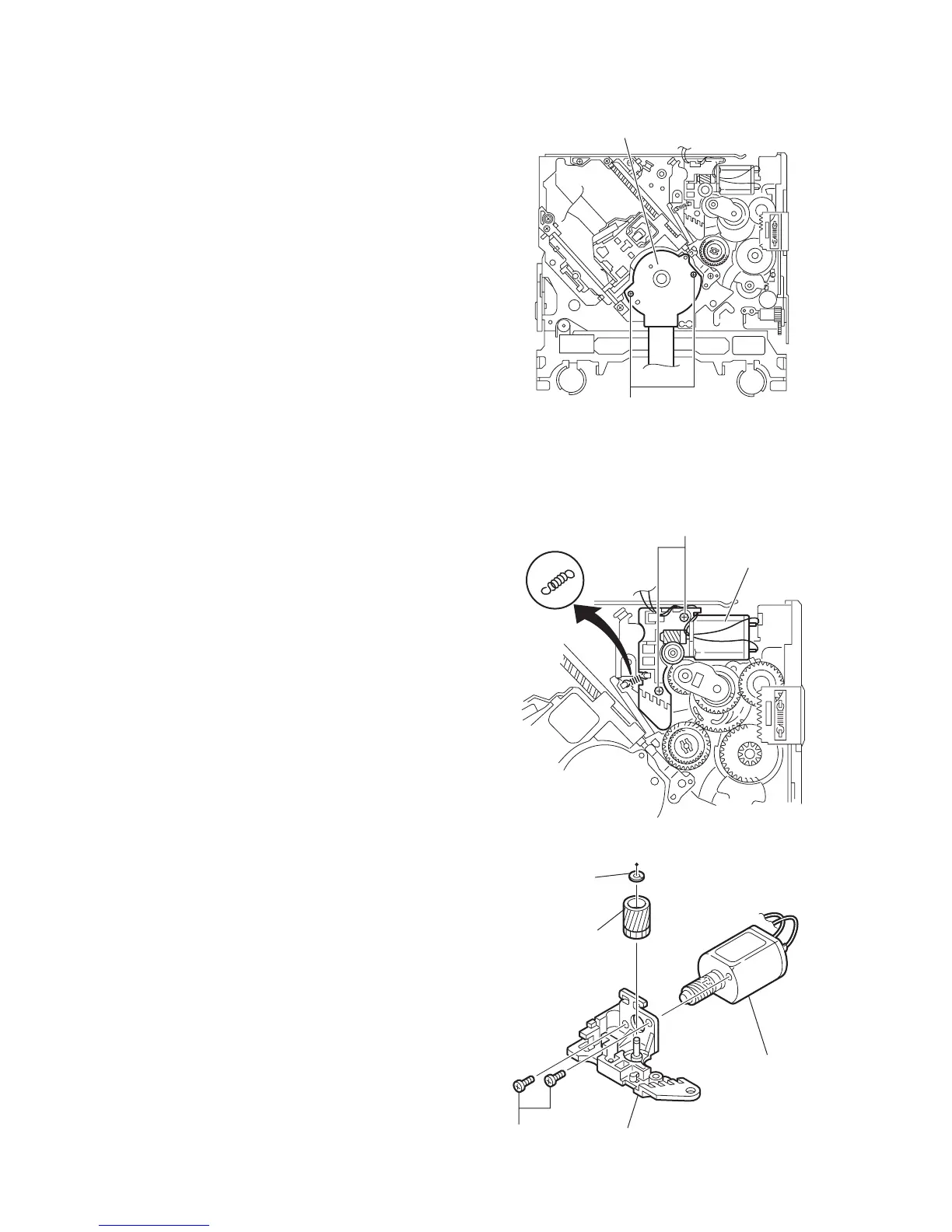

3.2.10 Removing the spindle motor
(See Fig.20)
• Remove the mechanism control board.
Remove the two screws L attaching the spindle motor on the
bottom of the body.
Caution:
Perform adjustment when reattaching the spindle motor.
Fig.20
3.2.11 Removing the feed motor assembly
(See Fig.21 and 22)
• Remove the mechanism control board.
(1) Remove the feed TRI. spring on the bottom of the body.
(See Fig.21.)
(2) Remove the two screws M attaching the feed motor as-
sembly. (See Fig.21.)
(3) Remove the slit washer from the motor H. assembly and
pull out the worm wheel. (See Fig.22.)
Remove the two screws N attaching the feed motor. (See
Fig.22.)
Fig.21
Fig.22
L
Spindle motor
M
Feed motor assembly
Feed TRI. spring
Feed moto
r
Motor H. assembly
Worm wheel
Slit washer
N
