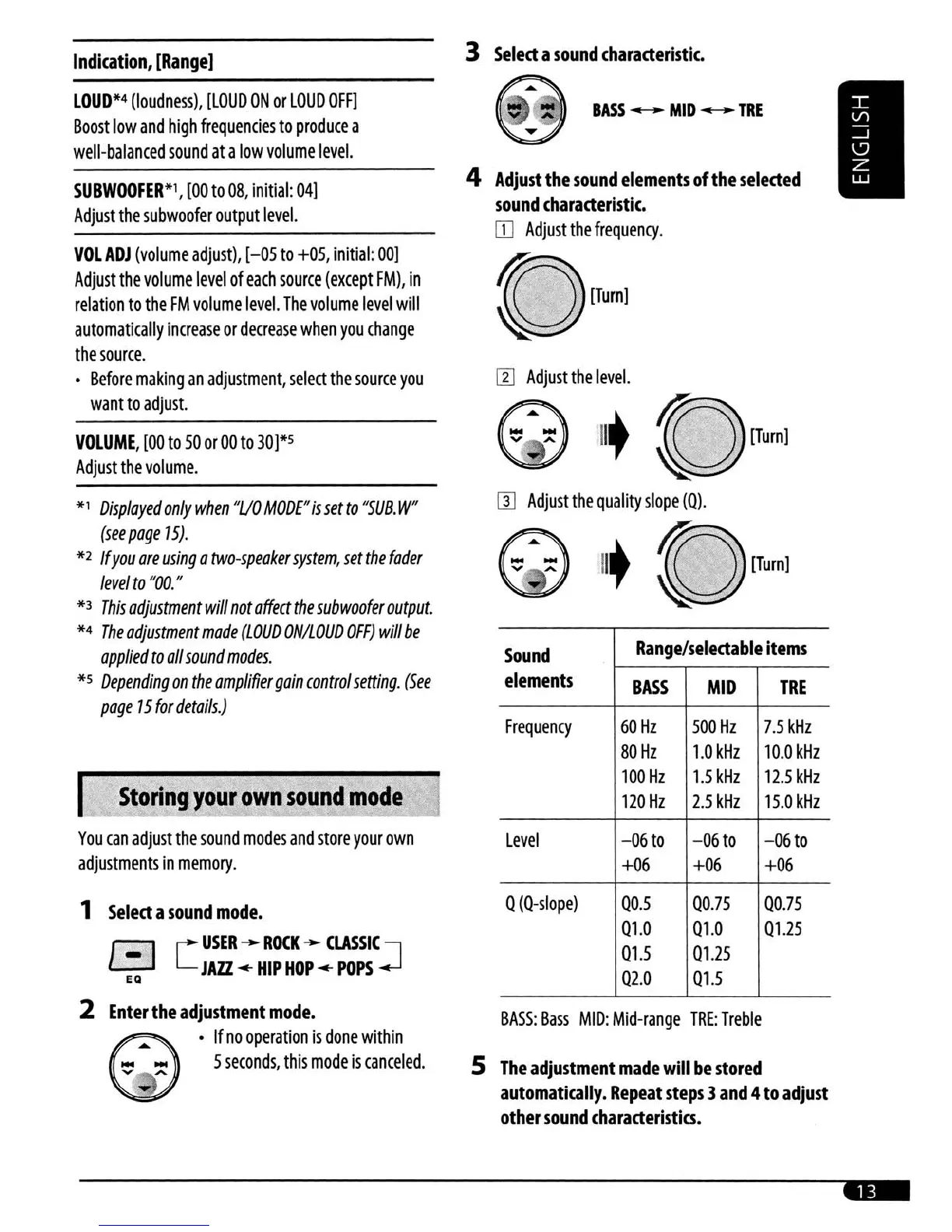

Indication, [Rangel
LOUD"' (loudness), (LOUD DN or LOUD OFF]
Boost low and high frequencies to produce a
well-balanced sound at a low volume level.
SUBWOOFER"', [00 to 08, initial: 041
Adjust the subwoofer output level.
VOL AOJ (volume adjust), [-OS to +05, initiai: 001
Adjust the volume level of each source (except FM), in
relation to the FM volume level. The volume level will
automatically increase or decrease when you change
the source.
• Before making an adjustment, select the source you
wantto adjust.
VOLUME, [00 to So or 00 to 30j"5
Adjust the volume.
"' Displayed only when "VD MODE" is set to "SUB. WOO
(seepage 15).
"2 If you are using a two-speaker system, set the fader
level to "00. "
"' This adjustment will nat affect the subwoafer outpur.
", The adjustment made (LOUD ON/LOUD OFF) will be
applied to all sound modes.
"5 Depending on the amplifier gain contra' setting. (See
page 15 for details.)
Storing your own sound mode
You can adjust the sound modes and store your own
adjustments in memory.
1 Select a sound mode.
G [USER- ROCK - CLASSIC]
E' JAZZ - HIP HOP - POPS
2 Enter the adjustment mode.
• If no operation is done within
5 seconds, this mode is canceled.
3 Select a sound characteristic.
@ BASS -- MID -- TRE
4 Adjust the sound elements of the selected
sound characteristic.
IT] Adjustthe frequency.
~ (Turn]
W Adjustthelevel.
~ "+ ~(Turnl
rn Adjust the quality slope (0).
~ "+ ~ [Turn]
Sound
Range/selectable items
elements
BASS MID TRE
Frequency
60 Hz 500 Hz 7.5 kHz
80 Hz 1.0 kHz 10.0 kHz
100 Hz 1.5 kHz 12.5 kHz
120 Hz 2.5 kHz 15.0 kHz
Level
-06 to -06 to
-06 to
+06 +06 +06
o (O-slope)
00.5 00.75
00.75
01.0
01.0 01.25
01.5 01.25
02.0
01.5
BASS: Bass MID: Mid-range TRE: Treble
5 The adjustment made will be stored
automatically. Repeat steps 3 and 4 to adjust
other sound characteristics.
