3.2.8 Removing the rod (L), rod (R) and roller assembly

(See Figs.15 and 16)

• Remove the mechanism control board, top cover, mechanism

section, front unit and loading arm assembly.

(1) From the bottom side of the loading arm assembly, release

the rod (L) and (R) from the joints r. (See Fig.15.)

(2) Remove the roller assembly from the loading arm assem-

bly. (See Fig.16.)

(3) Remove the two collars and washer from the roller assem-

bly. (See Fig.16.)

Caution:

After attaching the roller assembly to the loading arm assem-

bly, attach the rod (L) and (R). Then attach the rods to the right

and left collars of the roller assembly. (See Fig.15.)

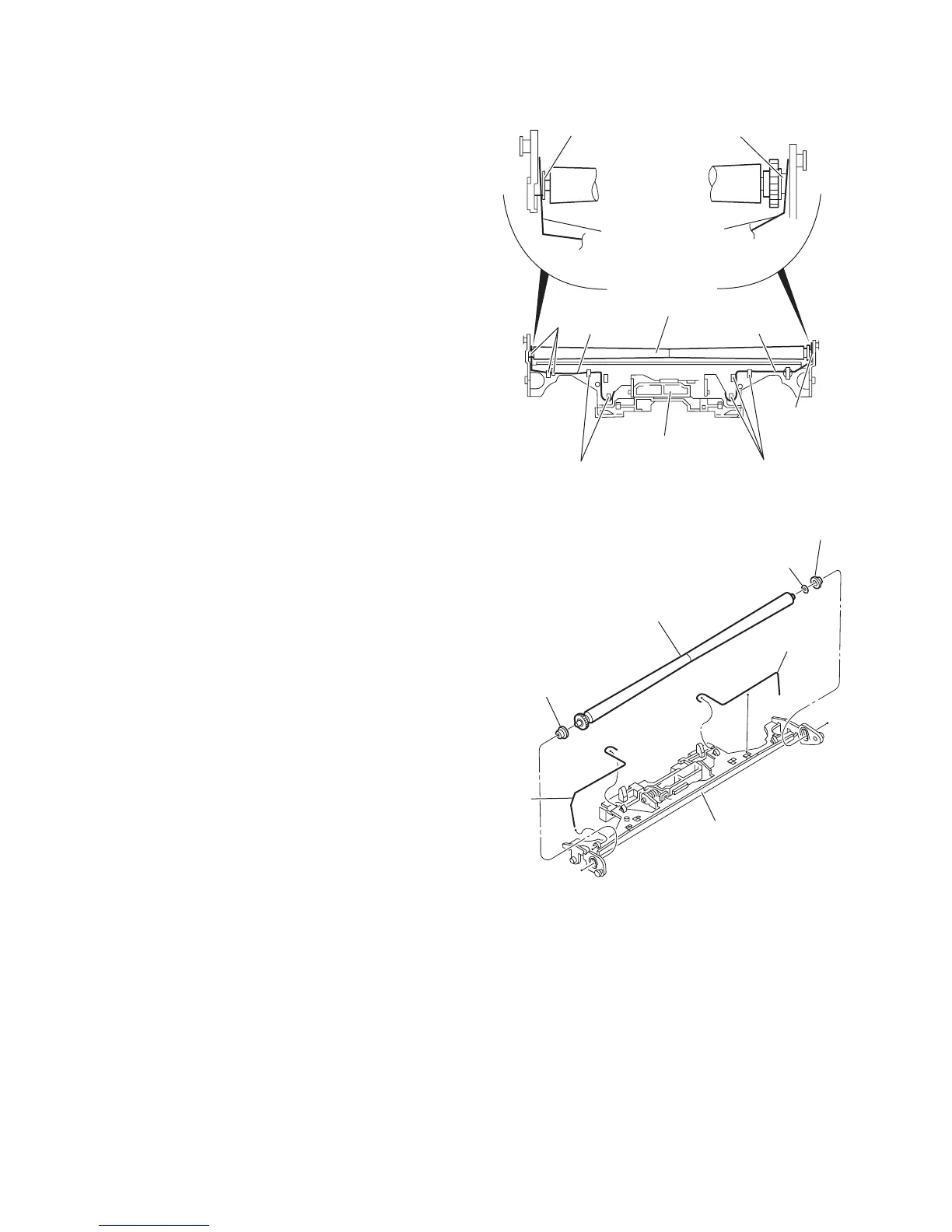

Fig.15

Fig.16

Rod(R)

Loading arm assembly

Rod(L)

Collar

Rod(R) Rod(L)

Roller assembly

Washer

Collar

Rod(L)

Loading arm assembly

Rod(R)
