(No.MA308)1-13
SECTION 3
DISASSEMBLY

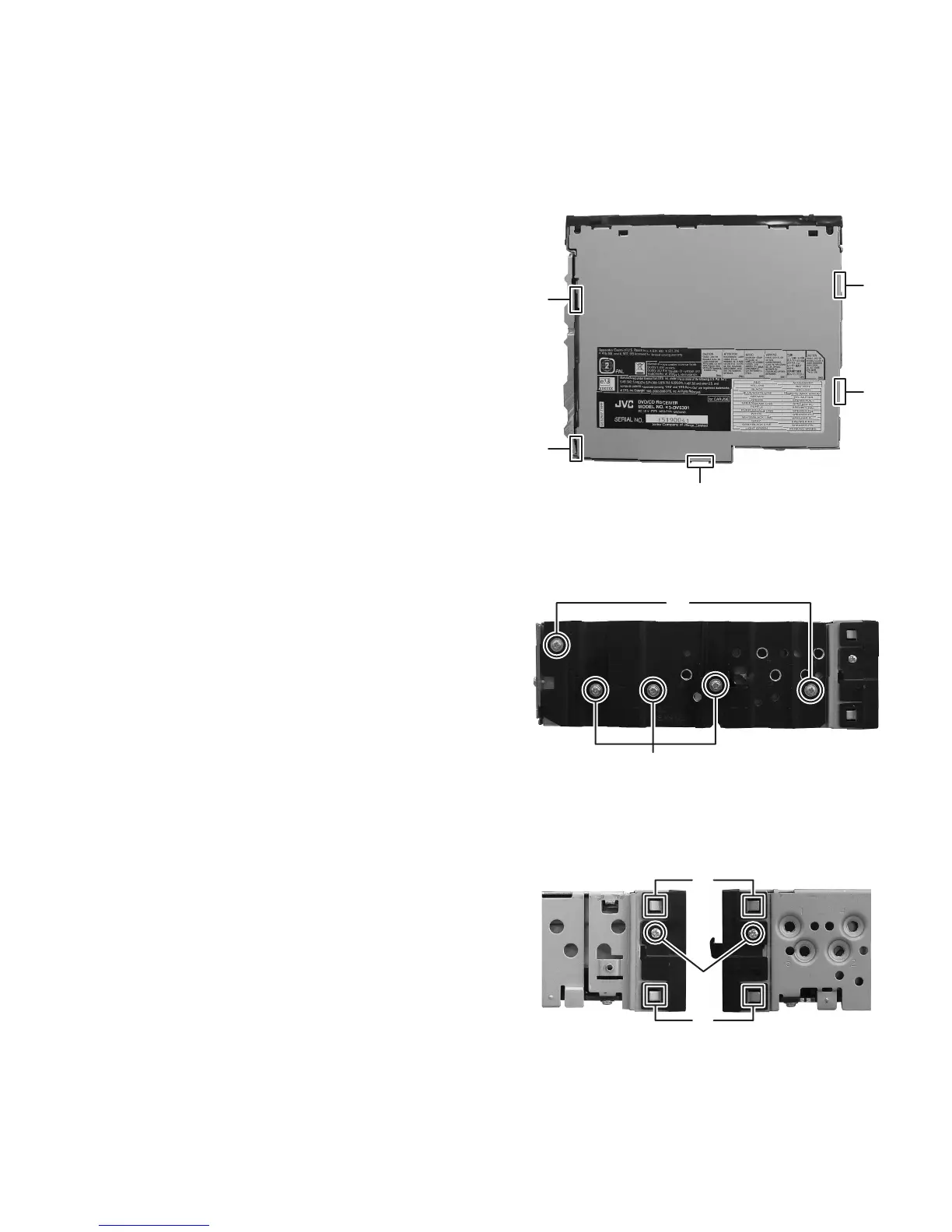

3.1 Main body
3.1.1 Removing the Bottom chassis
(See Fig.1)
(1) Disengage the five hooks a engaged bottom chassis.
Fig.1
3.1.2 Removing the Heat sink
(See Fig.2)
(1) Remove the two screws A and three screws B attaching
the Heat sink.
Fig.2
3.1.3 Removing the Front chassis assembly
(See Fig.3)
(1) From the both side of Front chassis, remove the two
screws C attaching the Front chassis.
(2) Disengage the both side of four hooks b engaged Front
chassis.
Fig.3
a
a
a
a
a
A
B
C
b
b
