1-20 (No.MA308)

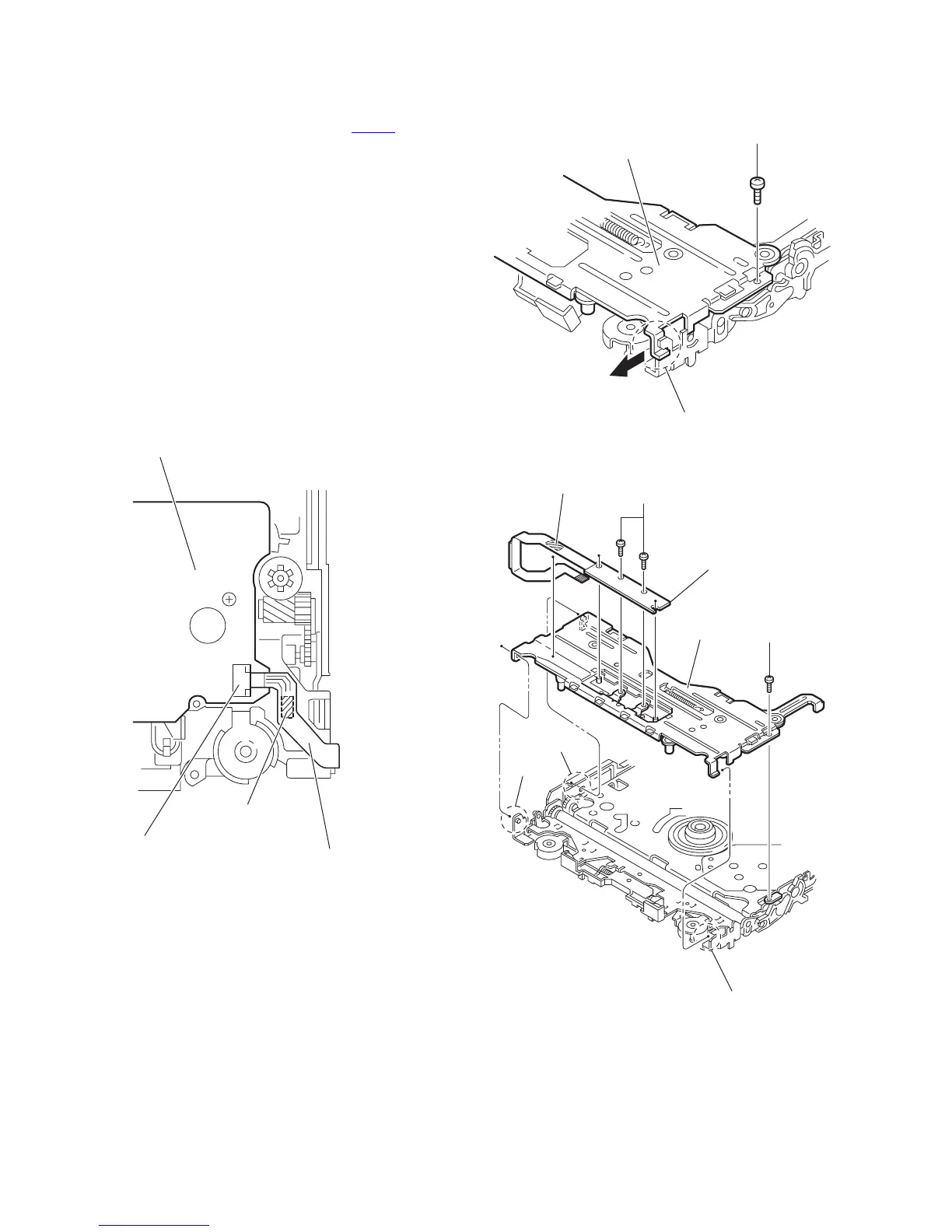

3.2.6 Removing the front unit

(See Fig.10 to 12)

• Remove the top cover and the mechanism section.

(1) Disconnect the flexible wire from connector CN202 on the

mechanism control board at the bottom of the body. (See

Fig.10.)

(2) Remove the screw G attaching the front unit on the top of

the body. (See Fig.11.)

(3) Move the front unit toward the front to release joint h, and

release two joints i and j on the right side of the chassis

base assembly. Then remove the front unit upward. (See

Figs.11 and 12.)

(4) Remove the two screws H attaching the switch board. (See

Fig.12.)

Reference:

You can remove the switch board only without removing the

front unit.

Caution:

When reassembling, attach the flexible wire extending from

the switch board using the double tape. (See Figs.10 and 12.)

Fig.10

Fig.11

Fig.12

Mechanism control board

Flexible wire

CN202

Double tape

Front unit

Switch board

Double tape
