40 EXTERNAL DEVICES

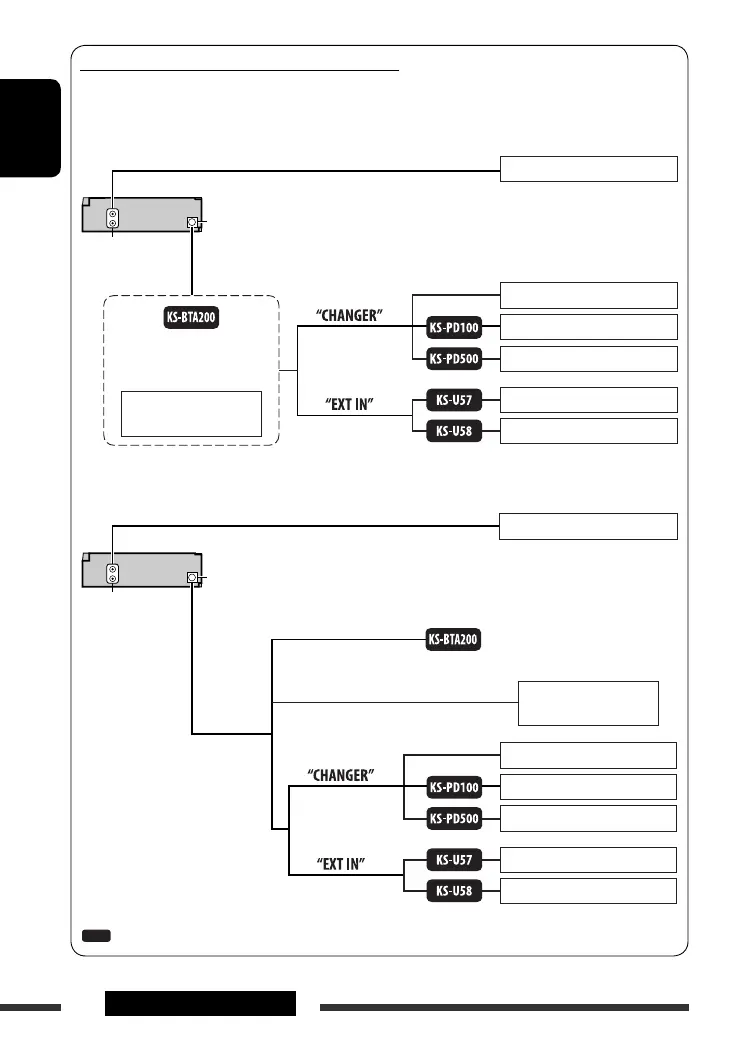

Concept diagram of the external device connection
For connection, see Installation/Connection manual (separate volume).
• Connection 1 (integrated connection)
JVC CD changer, [36]
Apple iPod, [38]
JVC D. player, [38]
Unit
CD changer jack
(see page 45 of the
”EXT IN” setting)
(see page 45 of the
”EXT IN” setting)
MD player, etc., [39]
: Adapter (separately purchased)
MD player, etc., [39]
MD player, etc., [39]
LINE IN terminals
JVC DAB tuner, [37]
(see pages 31 – 35)
or
• Connection 2 (alternative connection)
Unit
CD changer jack
LINE IN terminals
JVC CD changer, [36]
Apple iPod, [38]
JVC D. player, [38]
MD player, etc., [39]
MD player, etc., [39]
JVC DAB tuner, [37]
MD player, etc., [39]
(see pages 31 – 35)
(see page 45 of the
”EXT IN” setting)
(see page 45 of the
”EXT IN” setting)
