3.1.8 Removing the switch board
(See Figs.8 to 10)
• Remove the front panel assembly.
(1) Remove the four screws J on the back side of the front pan-
el assembly. (See Fig.8.)
(2) Release the joints f and remove the rear cover. (See Fig.9.)
(3) Release the joint g and take out the switch board from the
front panel assembly. (See Fig.10.)

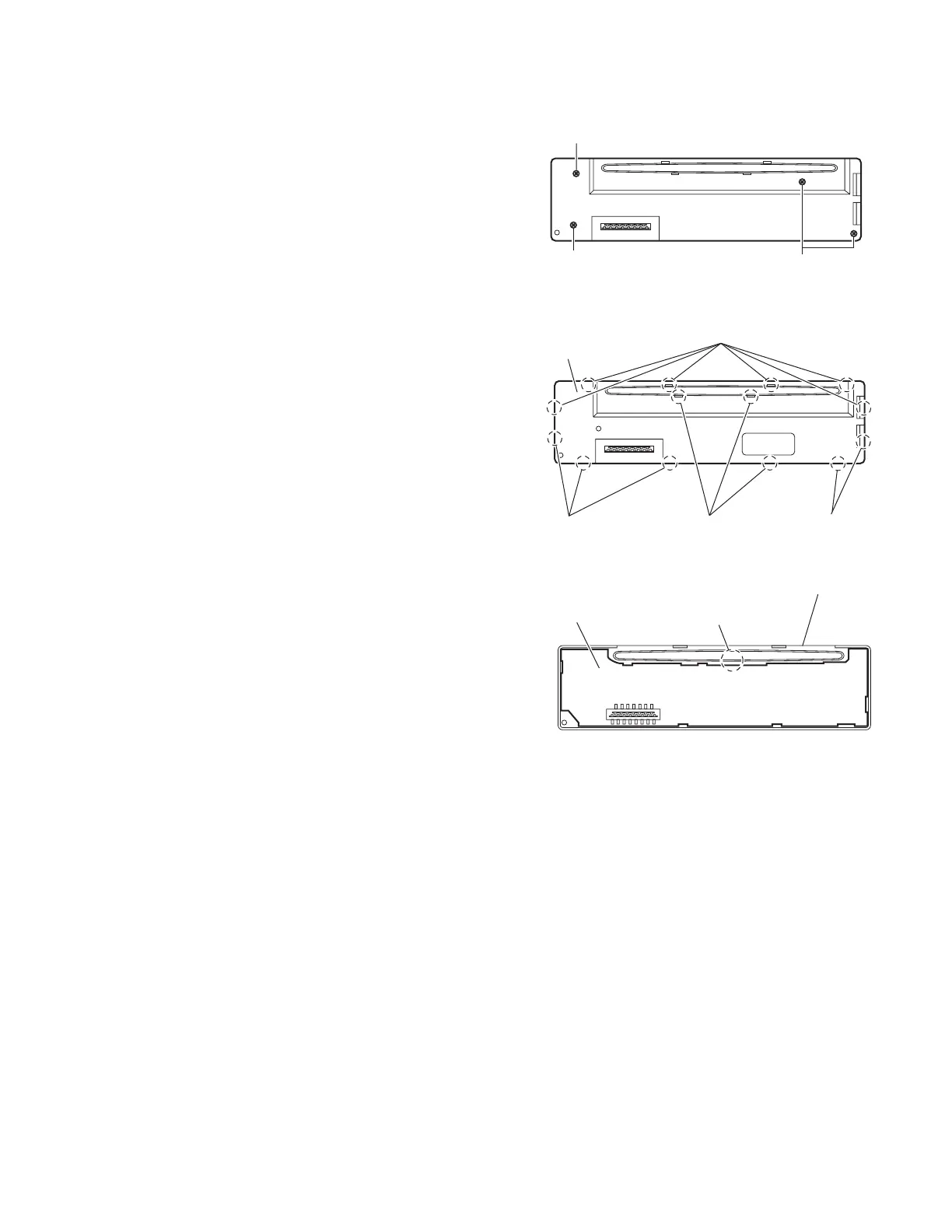

Fig.8
Fig.9
Fig.10
J
J
J
Joints f
Joints f
Joints f Joints f
Rear cover
Switch board
Joint
g
Front panel assembly
