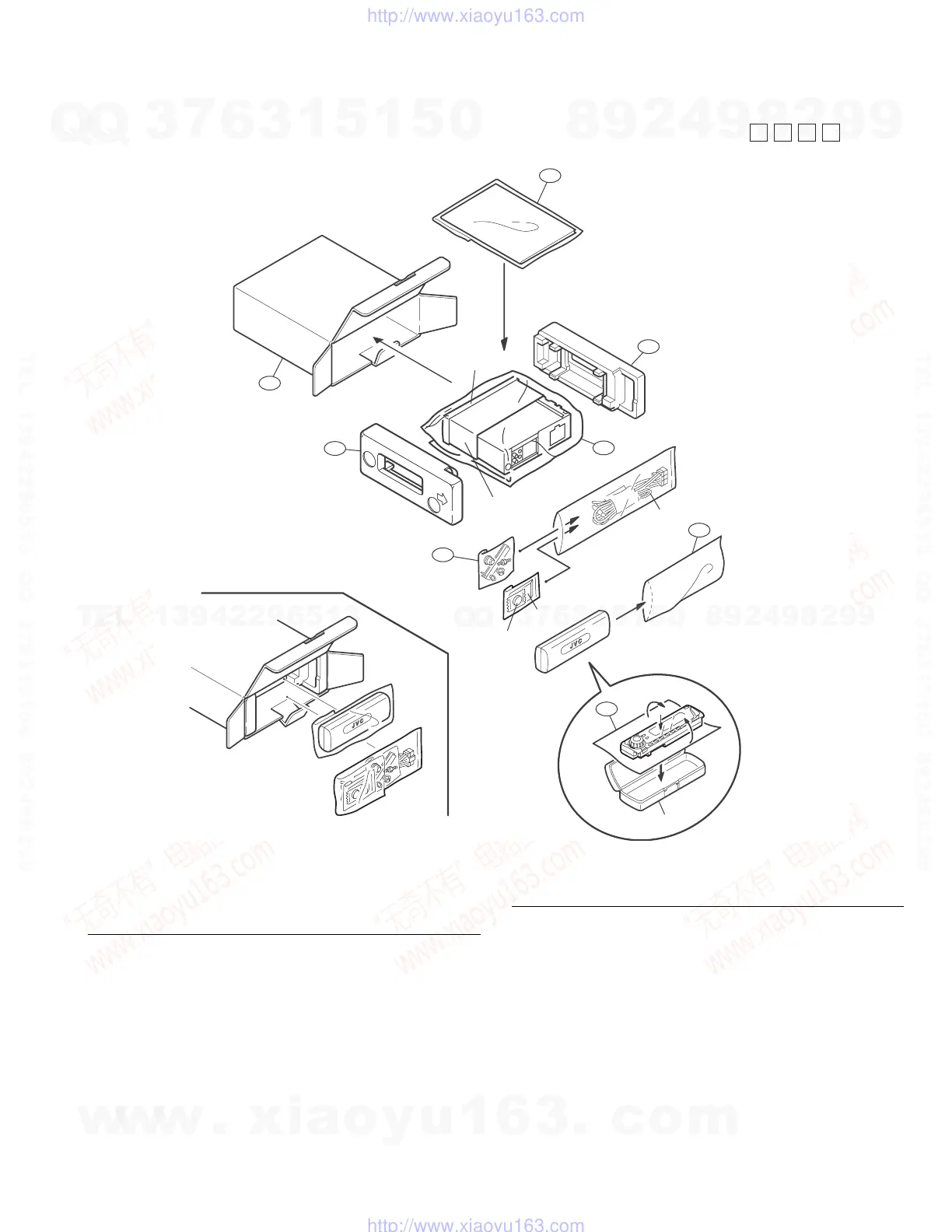

Packing materials and accessories parts list
Packing and accessories
Block No. [M][3][M][M]
Block No.
M
M
M
3
P2
P5
P4
A17
A21
P3
A16
P6
P7
P1
P7
A18
A2
A19
A20
A4A3A1 A5
A7 A9A8A6 A10
A12
A14A13
A11
A15
:KIT
Symbol No.
Part No. Part Name Description Local
A 1 GET0189-001A INST SHEET ENG FRE SPA
A 2 GET0189-002A INSTALL MANUAL ENG FRE SPA
A 3 LVT0717-001B TROUBLE SHEET(C
A 4 GET0205-001A IMPORTANT SHEET
A 5 GET0208-001A DEMO MODE SHT
A 6 LVT1120-001A MP3 GUIDE
A 7 LVT1122-001A SIRIUS SHEET
A 8 BT-51029-1 WARRANTY CARD
AR40
0J
A 8 BT-51018-3 WARRANTY CARD G400J
A 9 BT-52006-2 WARRANTY CARD
A 10 BT-51034-1 J=REGIST CARD
A 11 VKZ4027-202 PLUG NUT
A 12 VKH4871-001SS MOUNT BOLT
A 13 VKZ4328-001 LOCK NUT
A 14 WNS5000Z WASHER
A 15 GE40130-002A HOOK (x2)
A 16 FSJB3002-00C HARD CASE
A 17 GE20137-003A MOUNTING SLEEVE
A 18 GE20149-010A TRIM PLATE
AR40
0J
A 18 GE20149-009A TRIM PLATE G400J
A 19 RM-RK60 REMOCON UNIT
A 20 ----------------- BATTERY
A 21 QAM0306-001 16P CORD ASSY
KIT SRW-6060E SCREW PARTS KIT A11 to A15
P 1 FSPG4002-001 POLY BAG
P 2 QPA00801205 POLY BAG 8cm x 12cm
P 3 FSYH4036-068 SHEET
P 4 QPA01003003 POLY BAG 10cm x 30cm
P 5 QPC03004315P POLY BAG 30cm x 43cm
P 6 GE31119-002A CARTON
AR40
0J
P 6 GE31116-002A CARTON G400J
P 7 GE10070-002A EPS CUSHION
