1-8 (No.MA135)

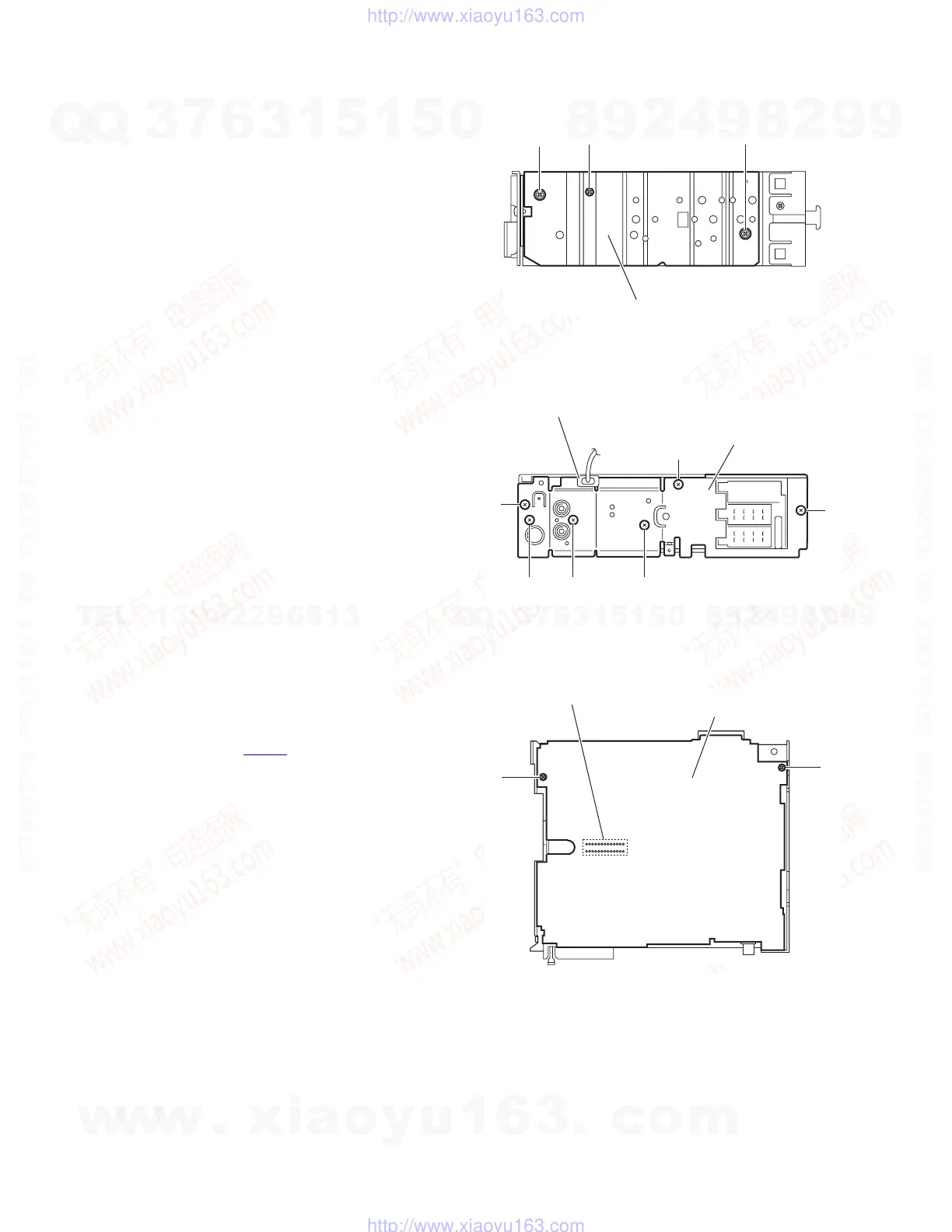

3.1.4 Removing the side panel
(See Fig.4)
• Prior to performing the following procedure, remove the front
panel assembly as required.
(1) Remove the screw B and two screws C attaching the side
panel on the left side of the main body, and take out the
side panel.
Fig.4
3.1.5 Removing the rear bracket
(See Fig.5)
• Prior to performing the following procedure, remove the bottom
cover.
(1) Remove the three screws D, screws E and two screws F at-
taching the rear bracket on the back side of the main body.
(2) Take out the rear bracket.
Reference:
Insert the STEERING cable into the slot before attaching the
rear bracket to the main body.
Fig.5
3.1.6 Removing the main board
(See Fig.6)
• Prior to performing the following procedures, remove the front
panel assembly, bottom cover, front chassis assembly, side
panel and rear bracket.
(1) Remove the two screws G attaching the main board.
(2) Disconnect the connector CN501
on the main board from
the main body and take out the main board.
Fig.6
Side panel
C
B
C
D
D
EF
E
Rear bracket
D
Insert STEERING cable into the slot.
Main board
G
G
CN501
