(No.MA135)1-9

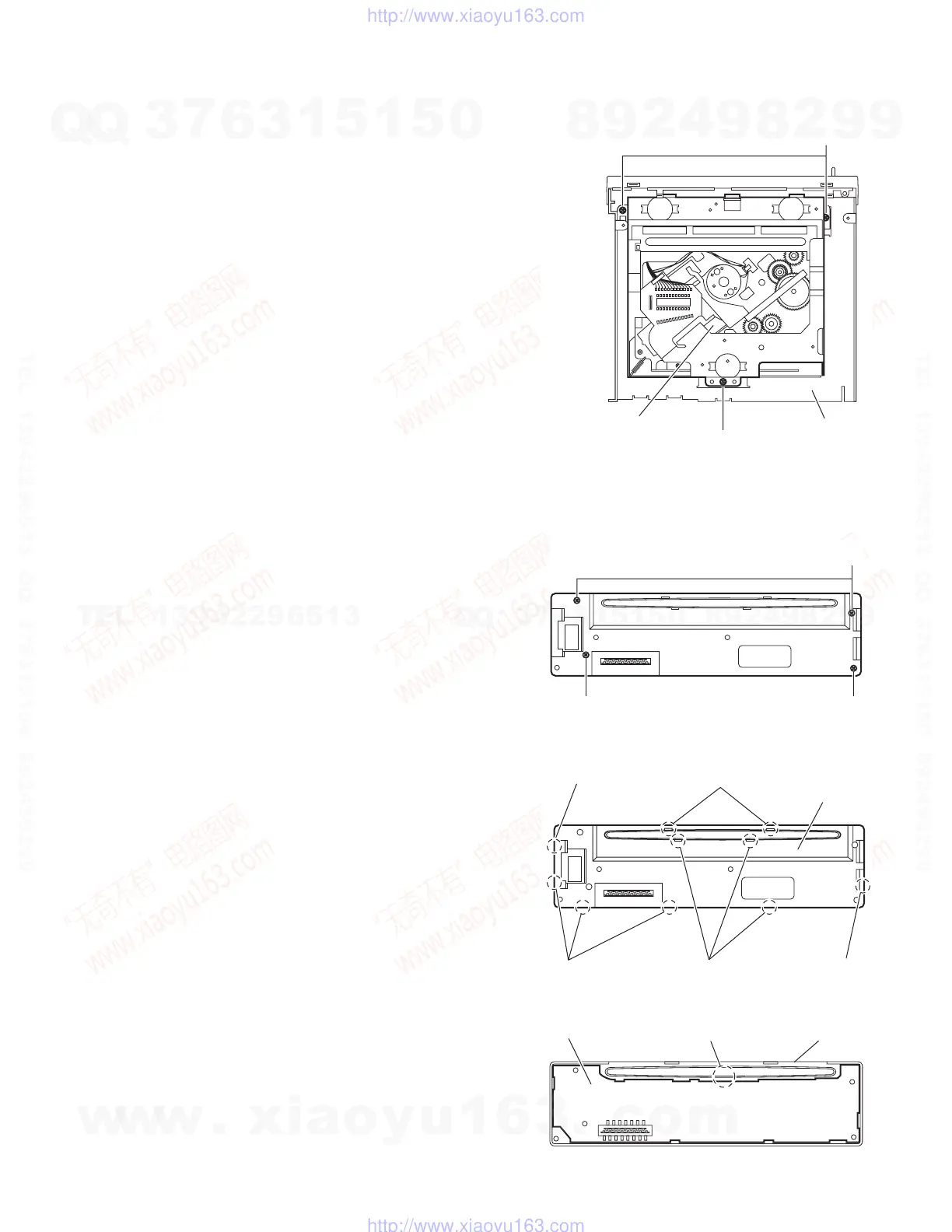

3.1.7 Removing the CD mechanism assembly
(See Fig.7)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, side panel, rear bracket and
main board.
• Remove the front chassis assembly as required.
(1) Remove the three screws H attaching the CD mechanism
assembly on the top chassis.
(2) Take out the CD mechanism assembly.
Fig.7
3.1.8 Removing the front board
(See Figs.8 to 10)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) Remove the four screws J on the back side of the front pan-
el assembly. (See Fig.8)
(2) Release the ten joints f and remove the rear cover. (See
Fig.9)
(3) Release the joint g and take out the front board from the
front panel assembly. (See Fig.10)
Fig.8
Fig.9
Fig.10
H
H
CD mechanism assembly
Top chassis
J
J
J
Joints f
Joint f
Joints f
Joints f
Joint f
Rear cover
Front board
Joint g
Front panel assembly
