1 BAND button
2 • Control dial
•
(standby/on attenuator) button
3 DISP (display) button
4 Remote sensor
• DO NOT expose the remote sensor to
strong light (direct sunlight or artificial
lighting).
5 Display window
6 5 (up) / ∞ (down) buttons
7 EQ (equalizer) button
8 0 (eject) button
Parts identification

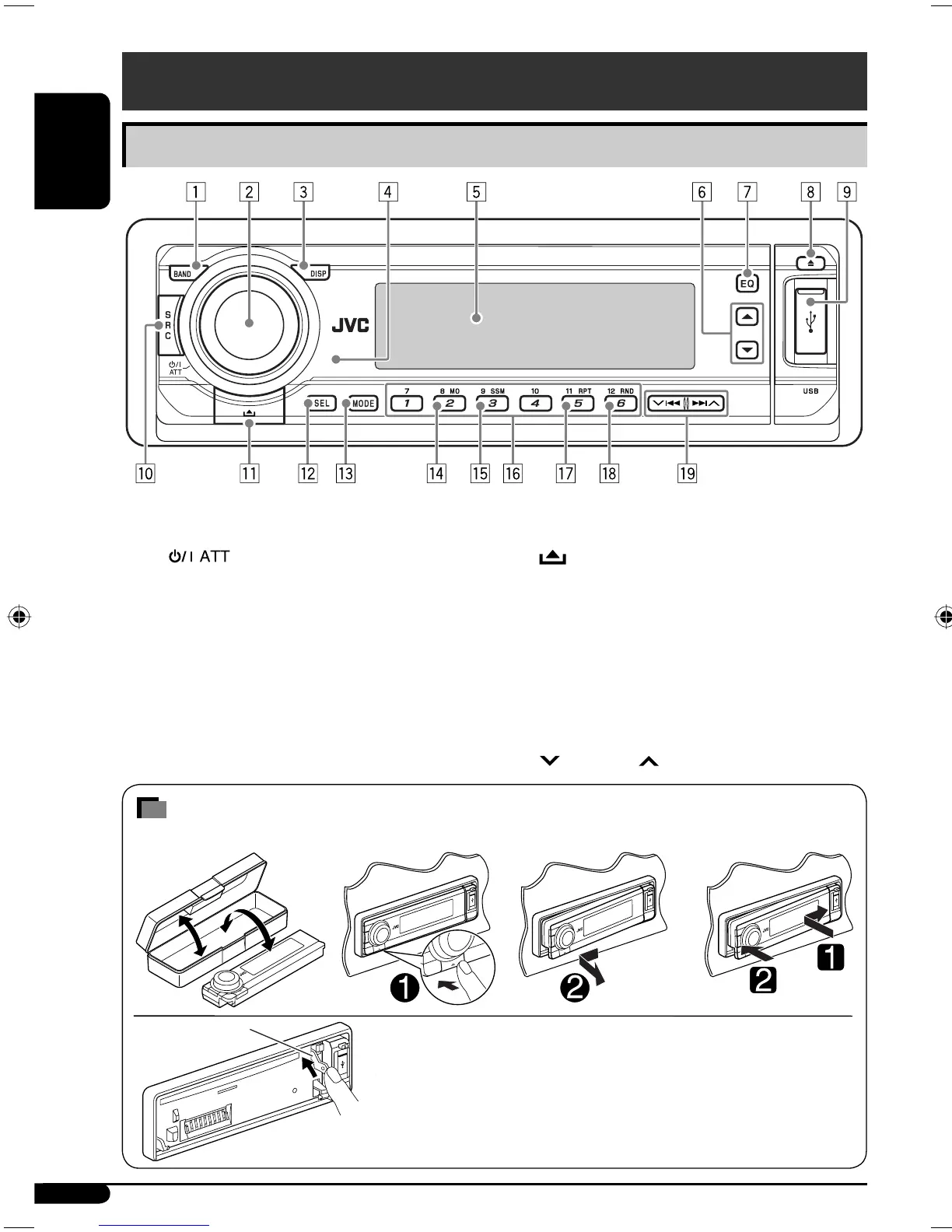

Control panel — KD-AR770 and KD-G720
How to detach/attach the control panel
Detaching... Attaching...
9 USB (Universal Serial Bus) input terminal
p SRC (source) button
q
(control panel release) button
w SEL (select) button
e MODE button
r MO (monaural) button
t SSM (Strong-station Sequential Memory)
button
y Number buttons
u RPT (repeat) button
i RND (random) button
o
4/¢ buttons
CAUTION:
The lever comes out if you pressed the 0 button while the
panel is detached. If this happens, push the lever back into lock
position before attaching the panel.
Lever
