1-10 (No.MA055)
3.1.8 Removing the rear bracket
(See Fig.13)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the rear side of the main board, remove the
subwoofer cable from the rear bracket in the direction of
the arrow.
(2) Remove the two screws K and three screws L attaching the
rear bracket to the main board.
Reference:
After attaching the rear bracket to the main board, pass the
subwoofer cable through the wire holder and insert them into
the slot of the rear bracket.

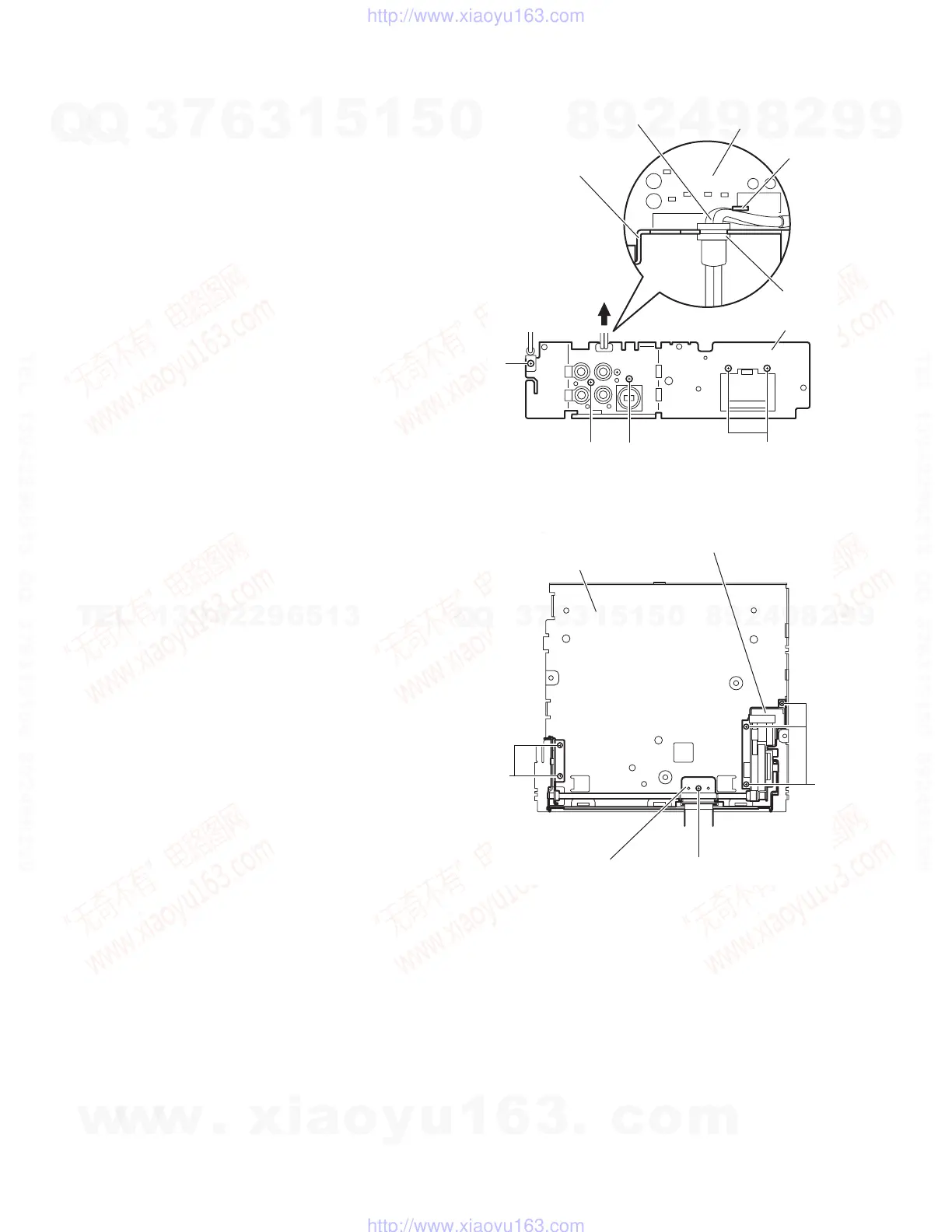

Fig.13
3.1.9 Removing the front door mechanism assembly
(See Fig.14.)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the top side of the bottom chassis assembly, remove
the screw M attaching the FPC guide to the bottom
chassis.
(2) Remove the five screws N attaching the front door
mechanism assembly to the bottom chassis.
Reference:
When attaching the screws M and N, apply a locking
agent them.
(3) Take out the front door mechanism assembly from the
bottom chassis.
Fig.14
Rear bracket
L
L K
K
Main board
Wire holde
Slot
Rear bracket
Subwoofer cable
Bottom chassis
N
N
M
FPC guide
Front door mechanism assembly
