KD-LH7R
Prior to performing the following procedure, remove
the top cover, the connector assembly and the
chassis / clamper assembly.
Remove the two screws K attaching the spindle
motor assembly through the slot of the turn table on
top of the body.
Unsolder the wire on the connector board if
necessary.
1.
2.
Removing the turn table / spindle motor

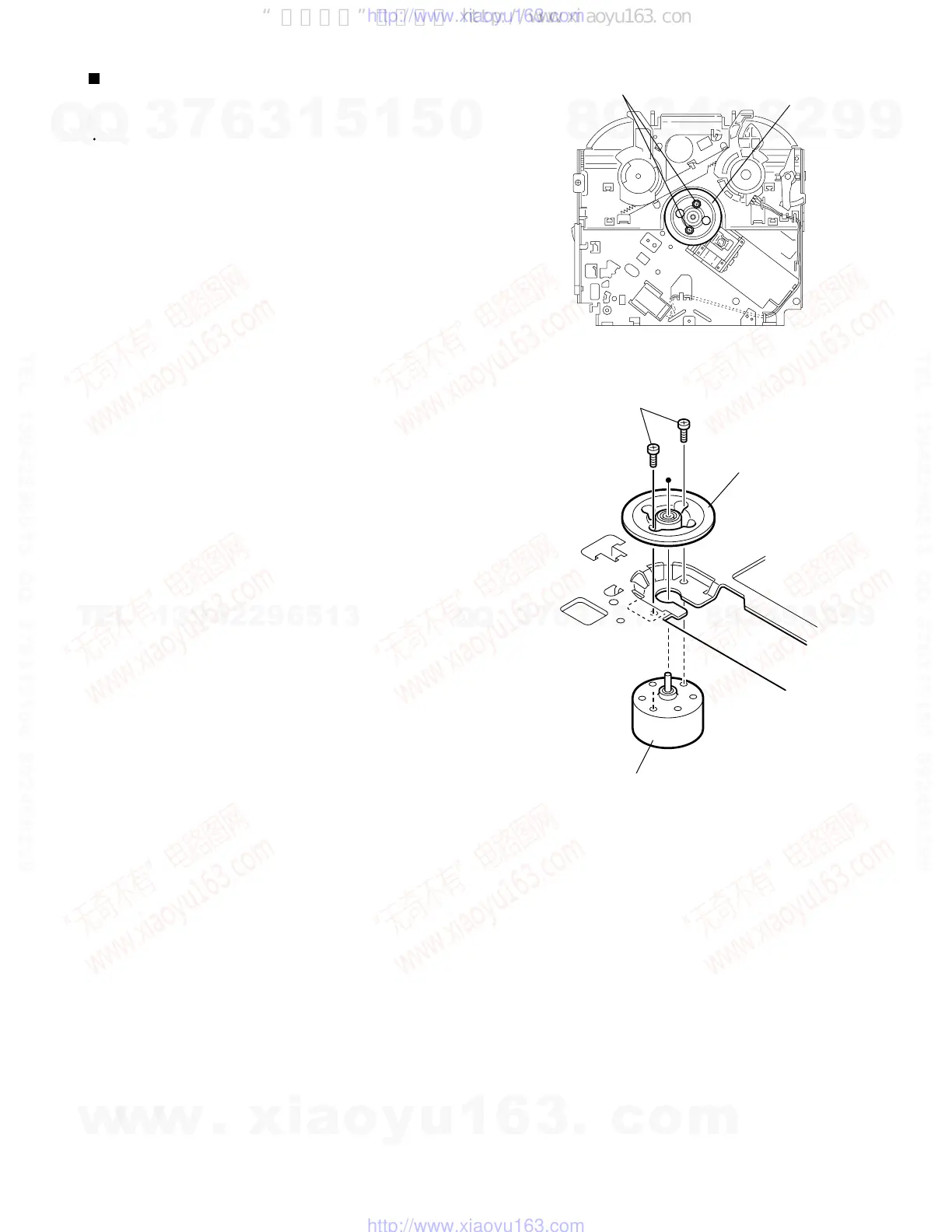

(See Fig.37 and 38)
Fig.37
Fig.38
K
K
Turn table
Turn table
Spindle motor
