3.1.8 Removing the rear bracket
(See Fig.13)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the rear side of the main board, remove the wires
from the rear bracket in the direction of the arrow.
(2) Remove the two screws K and three screws L attaching the
rear bracket to the main board.
Reference:
After attaching the rear bracket to the main board, pass the
wire through the wire holder and insert it into the slot of the rear
bracket.

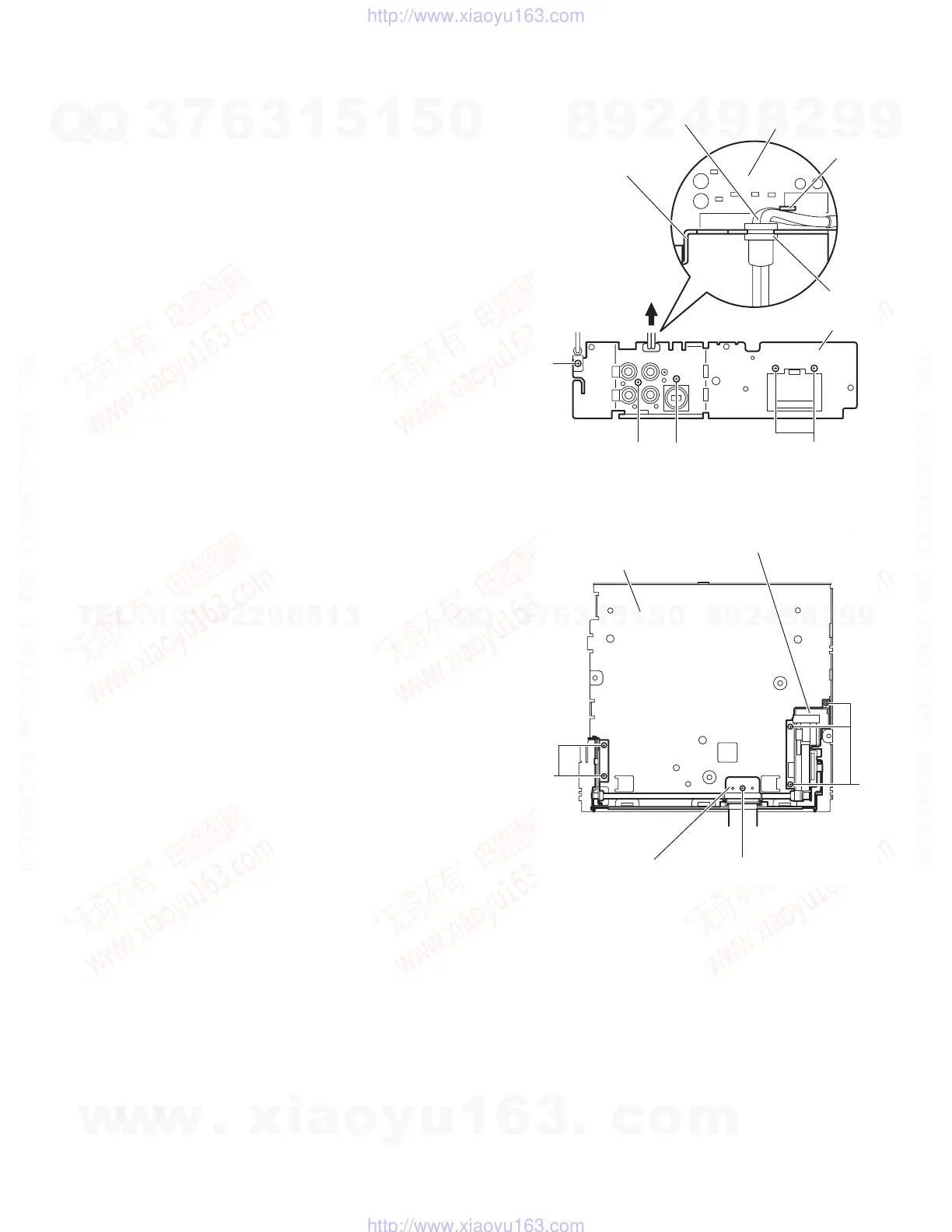

Fig.13
3.1.9 Removing the gear bracket unit
(See Fig.14)
• Prior to performing the following procedures, remove the front
panel assembly, heat sink, top chassis assembly and main
board.
(1) From the top side of the bottom chassis assembly, remove
the screw M attaching the FPC guide to the bottom chas-
sis.
(2) Remove the five screws N attaching the gear bracket unit
to the bottom chassis.
Reference:
When attaching the screws M and N, apply a locking
agent them.
(3) Take out the gear bracket unit from the bottom chassis.
Fig.14
Rear bracket
L
L K
K
Main board
Wire
Slot
Rear bracket
Wire holde
Bottom chassis
N
N
M
FPC guide
Gear bracket unit
