1-12 (No.MA044)
3.1.10 Removing the front board
(See Figs.15 to 17)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) From the rear side of the front panel assembly, remove the
four screws P attaching the rear cover assembly to the front
panel assembly. (See Fig.15.)
(2) Release the twelve joints c of the front panel assembly and
remove the rear cover assembly. (See Fig.16.)
(3) Take out the front board from the front panel assembly.
(See Fig.17.)

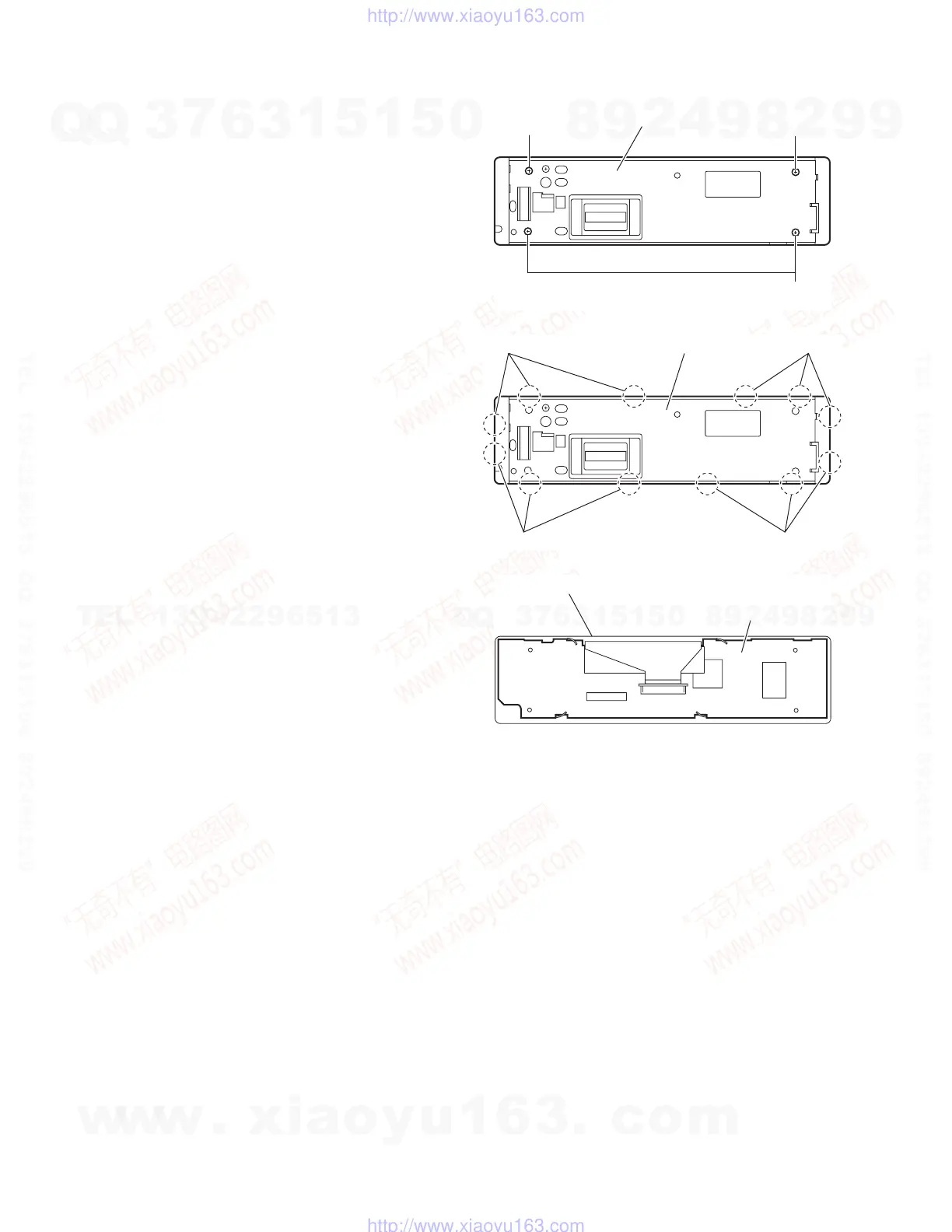

Fig.15
Fig.16
Fig.17
P
Rear cover assembly
P
P
Rear cover assembly
joints c joints c
joints c joints c
Front board
Front panel assembly
